Zoneline Buying Tips

Accessory Guide for Your GE Zoneline PTAC

Zoneline packaged terminal air conditioner units are designed with universal components, and offer great installation flexibility, whether in new construction, renovation, or for replacement of old PTAC units.

Essential Accessories

GE Zonelines require a set of essential accessories for proper operation. Once you have selected your type of unit (resistance heat or heat pump) and the size of unit needed, next you’ll need to consider the following:

  • Wall Sleeve / Case

    For new properties, be sure to get a matching wall case with your GE Zoneline. For replacements, GE Zoneline fits in the standard 42 in × 16 in sleeve dimensions.

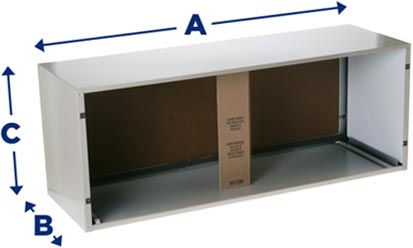

    Heavy Gauge Steel Wall Case

    RAB71B

    • Heavy gauge galvanized steel, with insulation
    • 42 in (A) × 13 3/4 in (B) × 16 in (C)
    • Also available in 16 in, 24 in, 28 in and 31 in depths
    Wall Opening Dimensions
    • Add 1/4 in to A and C dimensions for all cutout size
    • 16 1/4 in min (height) × 42 1/4 in min (width)

    Fiberglass Wall Case

    RAB77B

    • Molded SMC fiberglass-reinforced polyester compound
    • 42 1/8 in (A) × 13 7/8 in (B) × 16 1/4 in (C)
    Wall Opening Dimensions
    • Add 1/4 in to A and C dimensions for all cutout size
    • 16 1/2 in min (height) × 42 3/8 in min (width)
  • Exterior Grille

    We offer three styles of exterior grills to fit your building façade. The exterior air flow requirements have changed over the years. If reusing an existing grill, make sure that the airflow pattern is compatible with the new chassis. This may include removing existing air deflectors off the grill and installing the RAK40 air deflectors on the chassis.

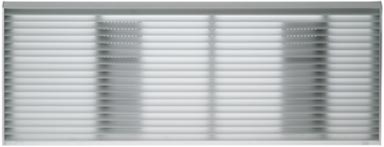

    • Architectural Grille

      RAG67 — Aluminum

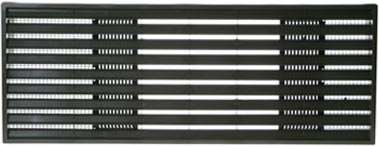

    • Color Molded Grilles

        RAG61 — Beige

        RAG62 — Maple

        RAG63 — Dark Brown

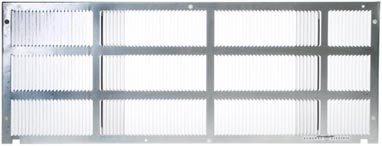

    • Stamped Grille

      RAG60 — Aluminum

  • Power Connections

    Power connection kits are required on all GE Zoneline chassis. The correct kit for the installation is determined by the voltage and amperage of the electrical circuit and the means of connecting the unit to the building wiring.

    230/208-Volt Units

    These units may be plugged into a receptacle using a line power cord kit or hard-wired. If the unit is to be permanently connected, a permanent connection kit would be used. Some installations utilize sub-bases for support of the unit and to hide the electrical connection.

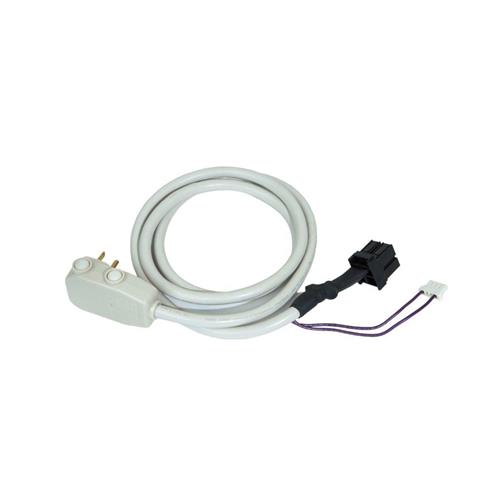

    Power Cord Kits

    RAK315P
    (15 Amp)


    NEMA6-15R

    RAK320P
    (20 Amp)


    NEMA6-20R

    RAK330P
    (30 Amp)


    NEMA6-30R

    OR

    Direct Connect Kits

    RAK315D
    (15 Amp)

    RAK320D
    (20 Amp)

    RAK330D
    (30 Amp)

    OR

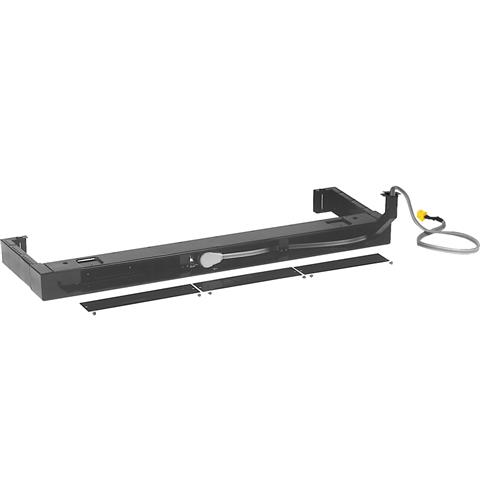

    Sub-Bases

    230/208-volt sub-bases include the appropriate short power cord to connect to the receptacle inside the sub-base. A junction box kit is required to complete the direct connect installation.

    RAK204D15C
    (15 Amp)

    RAK204D20C
    (20 Amp)

    RAK204D30C
    (30 Amp)

    Compare specs by amp for 230/208-volt units

    265-Volt Units

    265-volt units are provided with a junction box and require direct connection. 265-volt cord set units must be installed in compliance with National Electrical Code®.

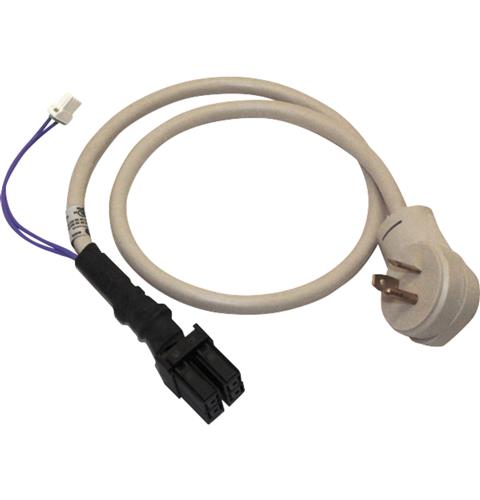

    Power Cord Kits

    To be used with a sub-base.

    RAK515P
    (15 Amp)


    NEMA7-15R

    RAK520P
    (20 Amp)


    NEMA7-20R

    RAK530P
    (30 Amp)


    NEMA7-30R

    AND

    Sub-Bases

    Sub-bases do not include a power cord and junction box. Order a sub-base and the appropriate power cord or direct connect kit separately.

    RAK204E15
    (15 Amp)

    RAK204E20
    (20 Amp)

    RAK204E30
    (30 Amp)

    OR

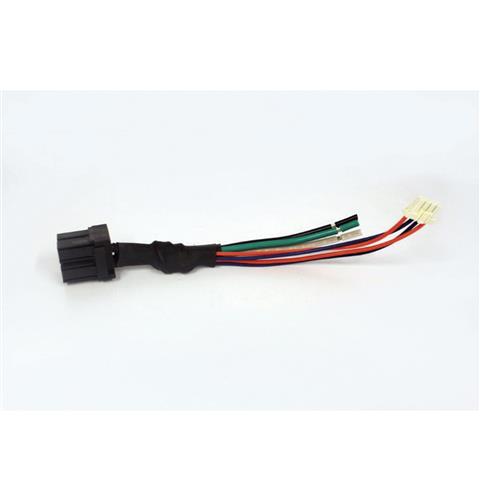

    Direct Connect Kits

    To be used with a sub-base or connection to building wiring. Direct Connect Kits include a power cord.

    RAK515D
    (15 Amp)

    RAK520D
    (20 Amp)

    RAK530D
    (30 Amp)

    Compare specs by amp for 265-volt units

Other Accessories

  • Ducted Applications

    The 4500 and 6500 series can be used to heat or cool more than one room. A special adapter mounts on the wall case and a transition piece directs the air from the unit into added ductwork which distributes the air to the main room and the attached room.

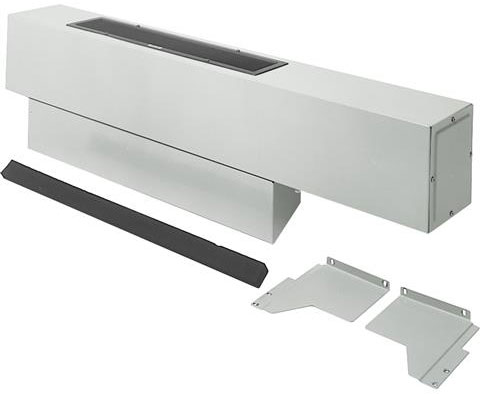

    • Duct Adapter

      RAK6053

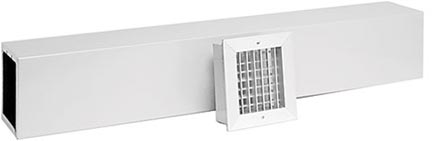

    • Duct Extension

      RAK601B

    • Duct Extension

      RAK602B

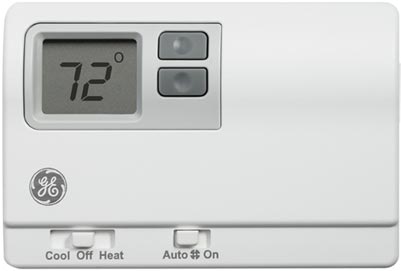

  • Remote Thermostat

    All Zoneline units are compatible with GE Appliances wall-mounted remote thermostats. We offer both digital and programmable wired thermostats.

    4500 Electric Resistance Heat Series
    • Cooling with Electric Heat Digital Thermostat
      RAK164D2
    • Cooling with Electric Heat Programmable Thermostat
      RAK164P2
    • Digital Two Fan Speed Thermostat for Electric Resistance
      RAK164F2
    6500 Heat Pump Series
    • Heat Pump Digital Thermostat
      RAK148D2
    • Heat Pump Programmable Thermostat
      RAK148P2
    • Digital Two Fan Speed Thermostat for Heat Pump
      RAK148F2
