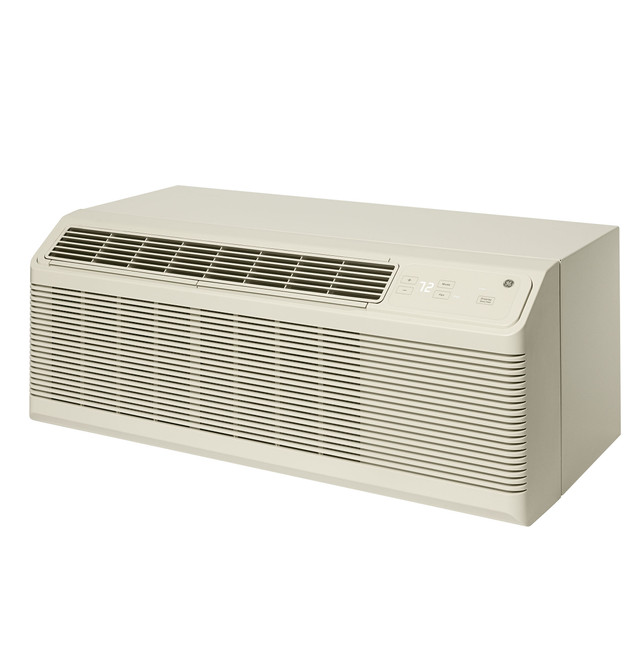

GE Zoneline® Heat Pump Unit with Makeup Air 12,000 BTU, 230/208 Volt

Model #: AZ65H12DBM
previous image
next image
1/5
  • Product built to order, lead times may vary
  • Makeup air
  • Energy efficiency
  • Dimensions: 16 H x 42 W x 20 13/16 D
Learn More >

Color: Gray

  • Gray
Dimensions: 16 H x 42 W x 20 13/16 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Use & Care Manual View More

Complete Your Laundry Pair:

Current Item
GE Zoneline® Heat Pump Unit with Makeup Air 12,000 BTU, 230/208 Volt
Model#: AZ65H12DBM
Clearance $2,349.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

  • Makeup air

    Makeup air

    Delivers 25-50 CFM of continuous makeup air whenever the room is occupied

    Play Video
  • Electronic touch controls with LED display

    Electronic touch controls with LED display

    undefined

    Play Video
  • Simplified structure

    Simplified structure

    Easy to maintain and service

    Play Video
  • Designed & Assembled in America

    Designed & Assembled in America

    undefined

  • Product built to order, lead times may vary

  • Energy efficiency

    When paired with occupancy sensing hardware, ventilation can be halted during vacancy

  • Dehumidification

    Dehumidifies at a rate of 5-6 pints per 24 hours (based on CFM level)

  • Boost heat option

    Provides supplemental resistance heat in heat pump mode

  • Heat & Freeze Sentinels

    Keeps the room from overheating or freezing

  • Electronic temperature limiting

    Prevents expensive over-cooling or over-heating of the room

  • May reduce the need for individually ducted rooftop systems

  • Because makeup air increases room BTU load requirements and requires additional PTAC cooling or heating, the building’s electrical needs may be impacted

  • Makeup air models are not recommended for installation within two miles of coastal areas

  • It is strongly recommended to install makeup air with wall thermostats

  • SMC base pan

See All Features

Claims & Certifications

Specs & Details

Dimensions: 16 H x 42 W x 20 13/16 D

APPEARANCE

Color Appearance Gray

CAPACITY

CFM Indoor Fan High 449
CFM Indoor Fan Low 300
Cooling BTUH (MAX) 11,500 Btu
Cooling BTUH (MIN) 11,400 Btu
Cooling EER (BTUH / Watt) 11.2/11.2
Dehumidification (pts./hr.) 3.4
Heating - Reverse Cycle - BTUH 10200/10000
Vent CFM (high fan at zero ESP) 25-50

FEATURES

Chassis Type Slide-In
Control Type Standard Microcomputer
Tactile touch pad with LED Display
Discharge Grille 2-position
Electronic Micro Computer Control Yes
Fan Cycle Switch Yes
Fan Motor 2
Fan Speed Control Yes
Fan Speed Selections Hi/Low Cooling
Hi/Low Heating
Hi/Low Fan Only
Filter Type Rigid Frame
Slide-Out
Heat - Cool Yes
Heating - Reverse Cycle - COP 3.5/3.5
Heating System Heat Pump
Louver Style Reversible
Makeup Air Yes
Power Factor 97
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type R410A
Rotary Compressor Yes
Sensible Heat Ratio 69%
Temperature Limiting Electronic 7-Step
Temperature Range 60 - 85 F
Zoneline Features "Smart Fan" Fan Cycle Control
Automatic Emergency Heat
Auto Power Recovery
Reverse Cycle Defrost
Remote Thermostat Compatibility
Central Desk Control Compatibility
Proportional - Integral ID Airflow
Random Twist/Length Segment Tangential Blower
Weather Protected Electrical Components
"Sleep" Mode
Heat Sentinel
Freeze Sentinel
Automatic Indoor Frost Control
Universal Heaters
Quick Heat Recovery
3-Stage Heating Design
Heat Pump with Resistance Heat Backup
Heat Pump with Supplemental Resistance Heat

POWER / RATINGS

Cooling - Amperes 5.8/6.2
Cooling - Amperes; F.L. - Cooling 5.8/6.2
Cooling - Amperes; L.R. 29.5
Cooling - Watts 1025/1015
Heating - Reverse Cycle - Amps 5.0/5.2
Heating - Reverse Cycle - Watts 850/835
Voltage (MAX) 230 V
Voltage (MIN) 208 V

WARRANTY

Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 135 lb
Net Weight 135 lb
Overall Depth 20 13/16 in
Overall Height 16 in
Overall Width 42 in
See All Specifications
