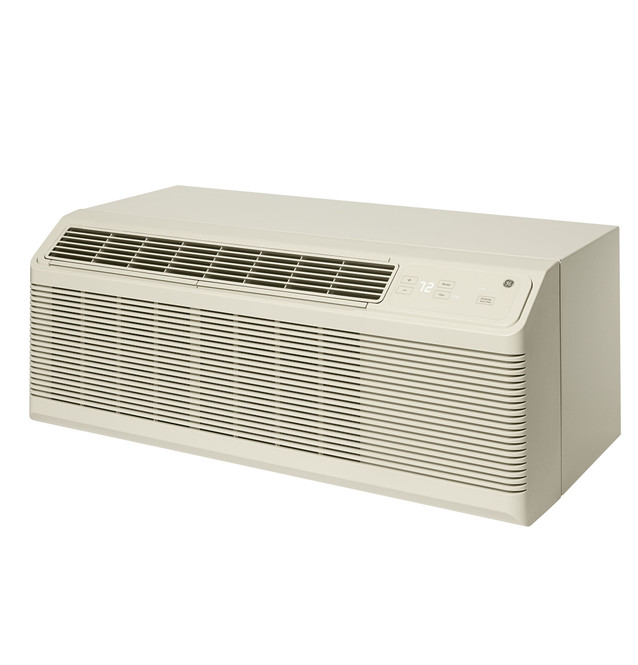

GE Zoneline® Heat Pump Unit with Makeup Air 7,000 BTU, 265 Volt

Model #: AZ65H07EBM
previous image
next image
1/5
  • Product built to order, lead times may vary
  • Makeup air
  • Energy efficiency
  • Dimensions: 16 H x 42 W x 20 13/16 D
Learn More >

Color: Gray

  • Gray
Dimensions: 16 H x 42 W x 20 13/16 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Use & Care Manual View More

Complete Your Laundry Pair:

Current Item
GE Zoneline® Heat Pump Unit with Makeup Air 7,000 BTU, 265 Volt
Model#: AZ65H07EBM
0.0 out of 5 stars.
Clearance $2,309.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

  • Makeup air

    Makeup air

    Delivers 25-50 CFM of continuous makeup air whenever the room is occupied

    Play Video
  • Electronic touch controls with LED display

    Electronic touch controls with LED display

    undefined

    Play Video
  • Simplified structure

    Simplified structure

    Easy to maintain and service

    Play Video
  • Designed & Assembled in America

    Designed & Assembled in America

    undefined

  • Product built to order, lead times may vary

  • Energy efficiency

    When paired with occupancy sensing hardware, ventilation can be halted during vacancy

  • Dehumidification

    Dehumidifies at a rate of 5-6 pints per 24 hours (based on CFM level)

  • Boost heat option

    Provides supplemental resistance heat in heat pump mode

  • Heat & Freeze Sentinels

    Keeps the room from overheating or freezing

  • Electronic temperature limiting

    Prevents expensive over-cooling or over-heating of the room

  • May reduce the need for individually ducted rooftop systems

  • Because makeup air increases room BTU load requirements and requires additional PTAC cooling or heating, the building’s electrical needs may be impacted

  • Makeup air models are not recommended for installation within two miles of coastal areas

  • It is strongly recommended to install makeup air with wall thermostats

  • SMC base pan

See All Features

Claims & Certifications

Specs & Details

Dimensions: 16 H x 42 W x 20 13/16 D

APPEARANCE

Color Appearance Gray

CAPACITY

CFM Indoor Fan High 409
CFM Indoor Fan Low 250
Cooling BTUH (MAX) 6,900 Btu
Cooling EER (BTUH / Watt) 12.5
Dehumidification (pts./hr.) 0.7
Heating - Reverse Cycle - BTUH 6000
Vent CFM (high fan at zero ESP) 25-50

FEATURES

Chassis Type Slide-In
Control Type Standard Microcomputer
Tactile touch pad with LED Display
Discharge Grille 2-position
Electronic Micro Computer Control Yes
Fan Cycle Switch Yes
Fan Motor 2
Fan Speed Control Yes
Fan Speed Selections Hi/Low Cooling
Hi/Low Heating
Hi/Low Fan Only
Filter Type Rigid Frame
Slide-Out
Heat - Cool Yes
Heating - Reverse Cycle - COP 3.9
Heating System Heat Pump
Louver Style Reversible
Makeup Air Yes
Power Factor 93
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type R410A
Rotary Compressor Yes
Sensible Heat Ratio 88%
Temperature Limiting Electronic 7-Step
Temperature Range 60 - 85 F
Zoneline Features "Smart Fan" Fan Cycle Control
Automatic Emergency Heat
Auto Power Recovery
Reverse Cycle Defrost
Remote Thermostat Compatibility
Central Desk Control Compatibility
Proportional - Integral ID Airflow
Random Twist/Length Segment Tangential Blower
Weather Protected Electrical Components
"Sleep" Mode
Heat Sentinel
Freeze Sentinel
Automatic Indoor Frost Control
Universal Heaters
Quick Heat Recovery
3-Stage Heating Design
Heat Pump with Resistance Heat Backup
Heat Pump with Supplemental Resistance Heat

POWER / RATINGS

Cooling - Amperes 3.2
Cooling - Amperes; F.L. - Cooling 3.2
Cooling - Amperes; L.R. 11.7
Cooling - Watts 550
Heating - Reverse Cycle - Amps 2.9
Heating - Reverse Cycle - Watts 450
Voltage (MAX) 265 V

WARRANTY

Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 128 lb
Net Weight 128 lb
Overall Depth 20 13/16 in
Overall Height 16 in
Overall Width 42 in
See All Specifications
