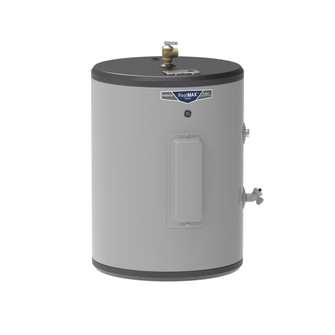

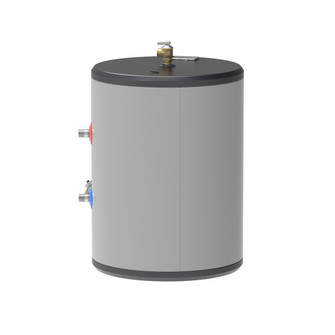

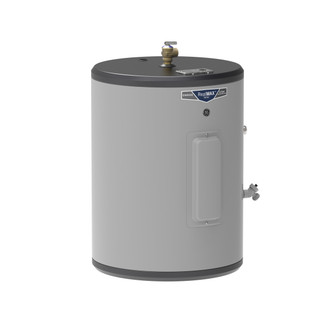

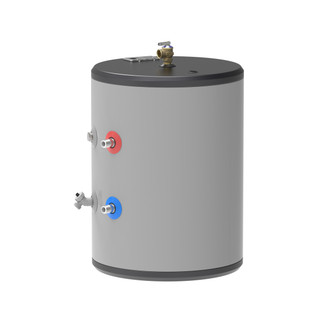

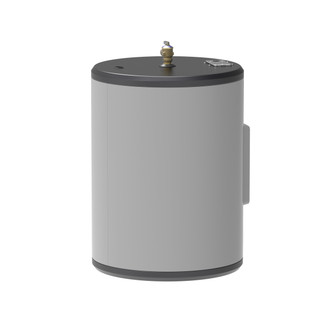

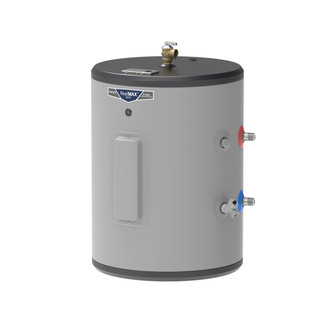

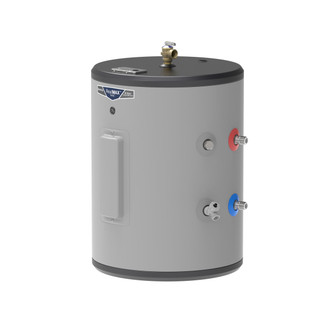

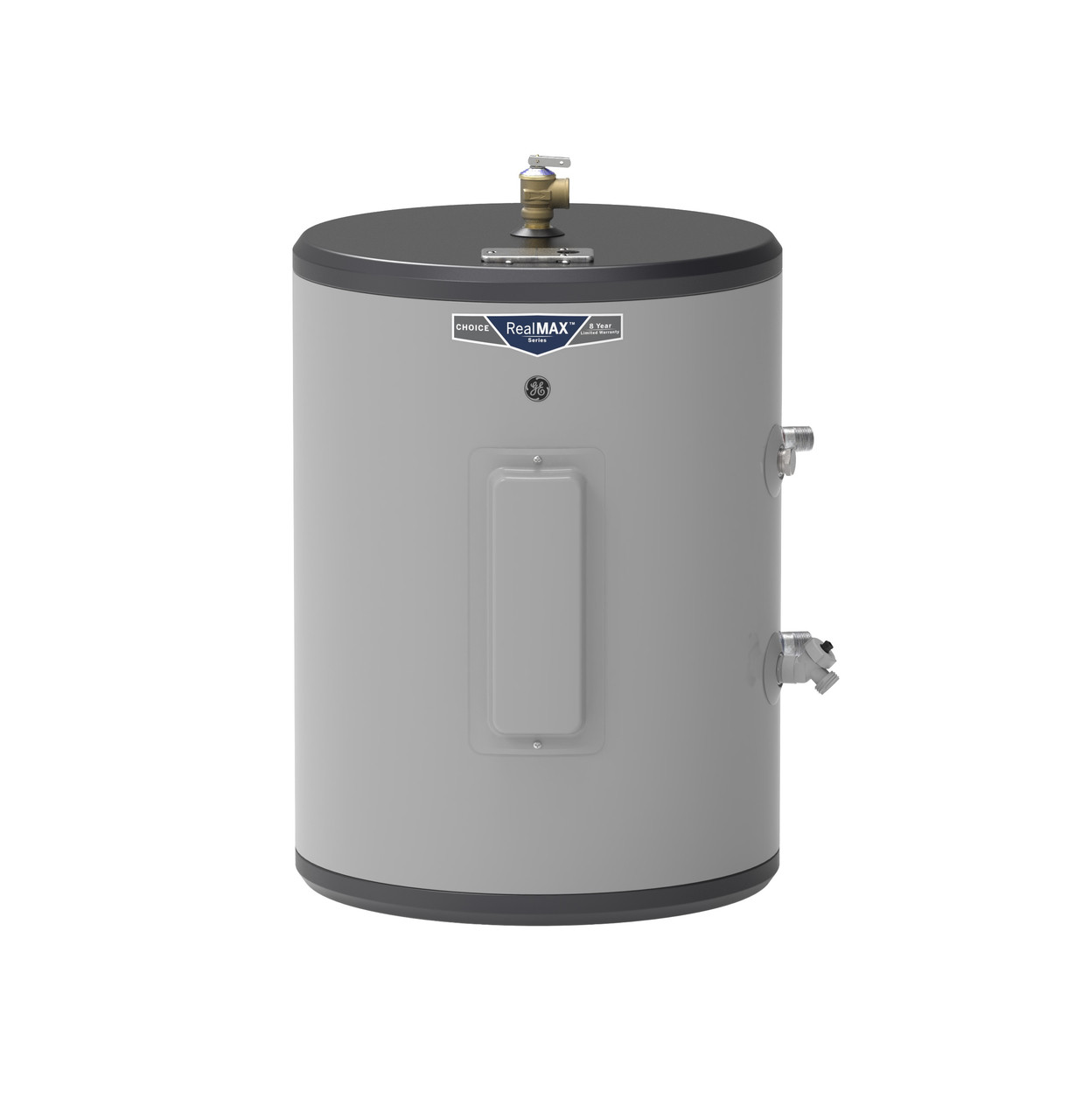

GE® 18 Gallon Side Port Lowboy Electric Water Heater

Model #: GE20L08BAR
previous image
next image
1/5
  • Lowboy
  • Quick Recovery
  • Household Size
  • Dimensions: 25 3/4 H x 19 1/4 W x 19 1/4 D
Learn More >

Color: Gray

  • Gray
Dimensions: 25 3/4 H x 19 1/4 W x 19 1/4 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
BUY FROM A LOCAL PRO
Loading Store Finder

Frequently Bought Together:

Use & Care Manual View More

Complete Your Laundry Pair:

Current Item
GE® 18 Gallon Side Port Lowboy Electric Water Heater
Model#: GE20L08BAR
Clearance $379.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

  • Easy Set Up

    Easy Set Up

    Replace your old water heater quickly and easily using standard water and electrical connections

  • Anode Rod

    Anode Rod

    Durable design offers long-lasting protection against corrosion

  • Adjustable Thermostat

    Adjustable Thermostat

    Change temperature to your desired setting

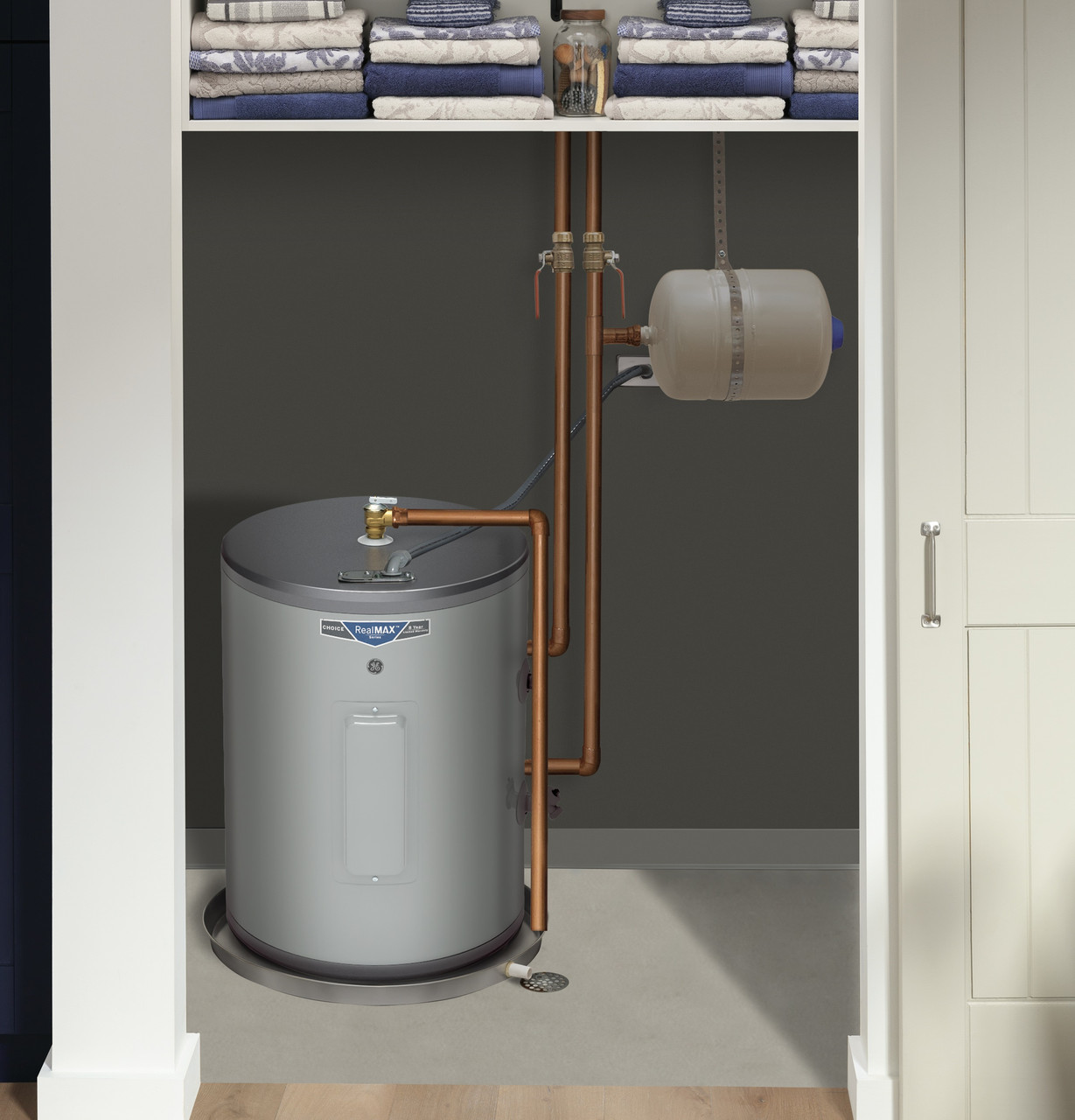

  • Lowboy

    Make the most of tight spaces with a water heater that fits where height is a concern

  • Quick Recovery

    3800W heating elements quickly increase water temperature for hot water when you need it

  • Household Size

    Provide hot water for the whole family of 1 to 2 persons

  • Inlet Tube

    Replenishes water from the bottom of the tank to maximize hot water delivery

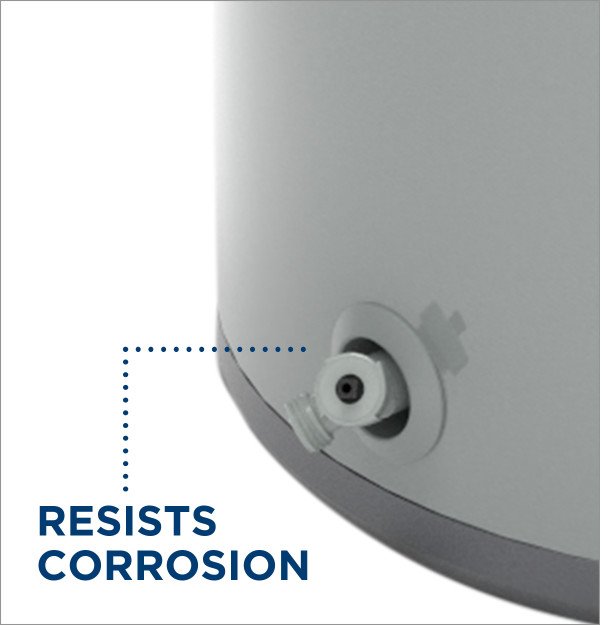

  • Drain Valve

    Rust-proof construction can be counted on to provide long-lasting service

See All Features

Claims & Certifications

Specs & Details

Dimensions: 25 3/4 H x 19 1/4 W x 19 1/4 D

APPEARANCE

Color Appearance Gray

CAPACITY

Unit Capacity 18 Gallons

FEATURES

Anode Rod Aluminum
Configuration Lowboy
Control Type Thermostat
Controls Mechanical Temperature Control
Drain Valve Type Plastic
Family Size 1-2 People
Foam Insulation Yes
Fuel Type Electric
GPH Recovery @ 90 Degrees F 25.1
Heating Element Stainless steel
Height Description Low Boy with Side Port
Installation Location Indoor
Max. operating pressure (psi) 150
Max: operating pressure (psi) 150
Mobile Home Compatible No
Operating Modes Standard Electric
Point of Use No
Product Type Electric Thermostat
Rated Capacity 18.0 gal
Rated Storage Capacity 18
Temp & Pressure Relief Valve Yes
Temperature Setting 90-150° F Range
Temperature Setting Factory Default 120° F

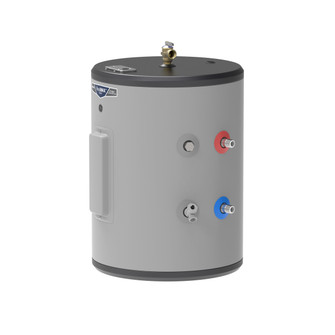

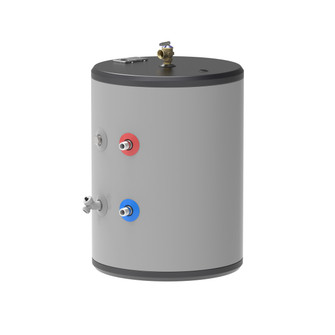

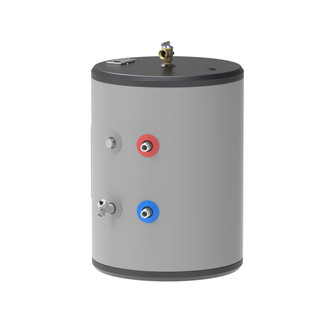

Water Connection Location Side

POWER / RATINGS

Electrical Circuit Required 208V/240V 60 Hz Dedicated 30 Amp Min.
Electrical Connection Direct-Wire
Heating - Electric - Heater Watts 3800
Operating Water Pressure 20-125 PSI
Voltage (MAX) 240 V
Volts/Hertz 240V; 60Hz

WARRANTY

Labor Warranty 1-year limited
Parts Warranty 8-year limited
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 62 lb
Connection Sizes - Hot Water Outlet (MNPT) 3/4"
Connection Sizes - Water Inlet (MNPT) 3/4"
Net Weight 54.2 lb
Overall Depth 19 1/4 in
Overall Height 25 3/4 in
Overall Width 19 1/4 in
Product Diameter 19 1/4 in
Product Height (to top of unit) 25 3/4 in
Product Height (to top of water inlet/outlet connections) 8 7/8 : 17 1/8 in
