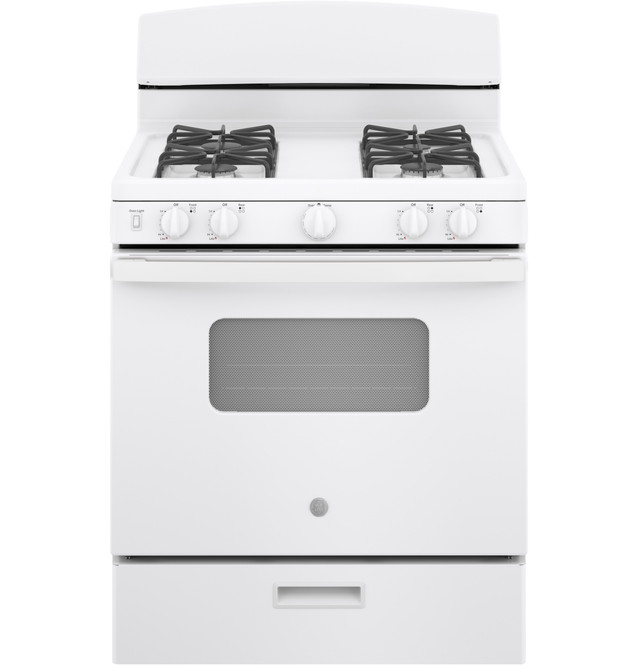

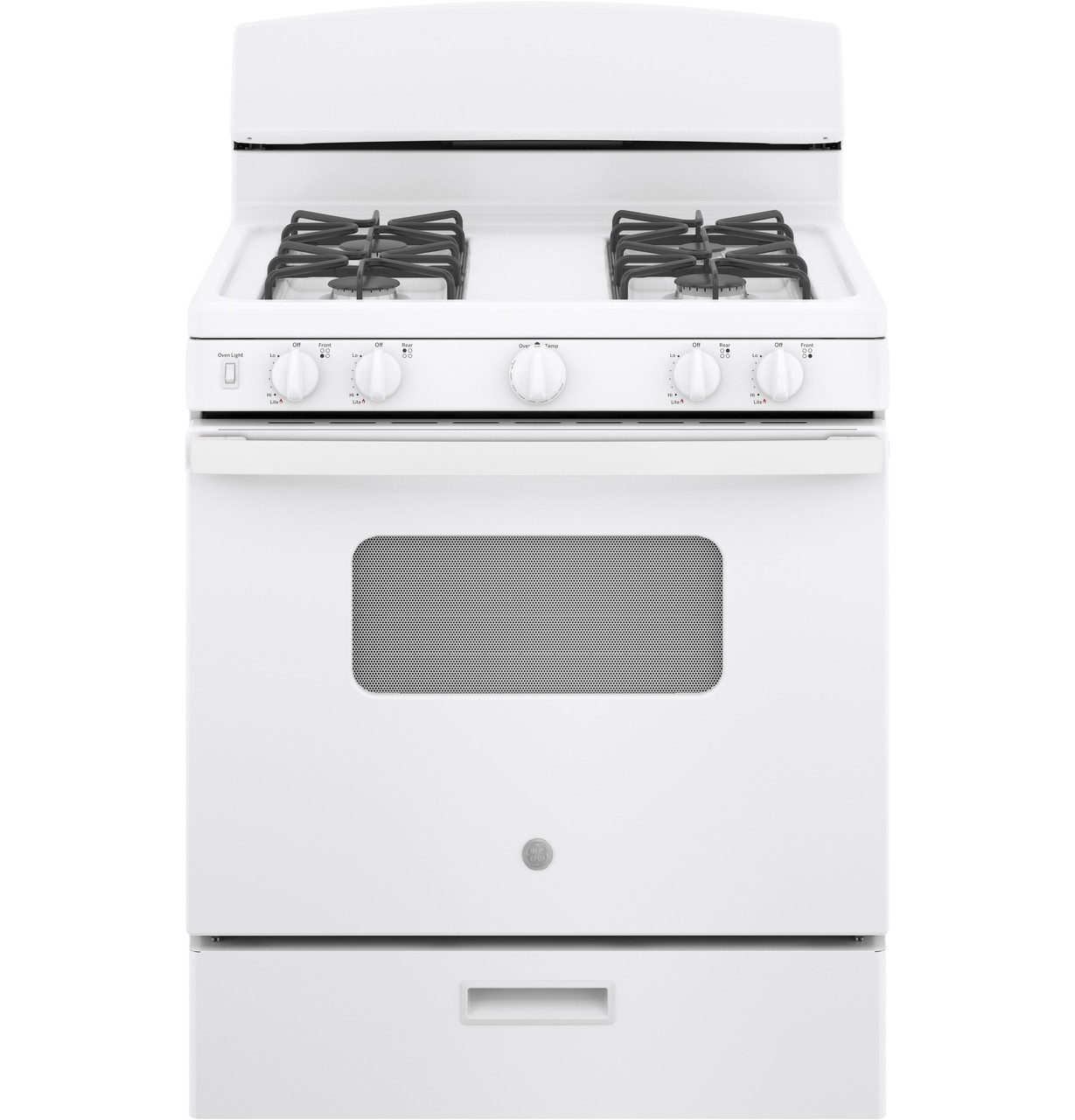

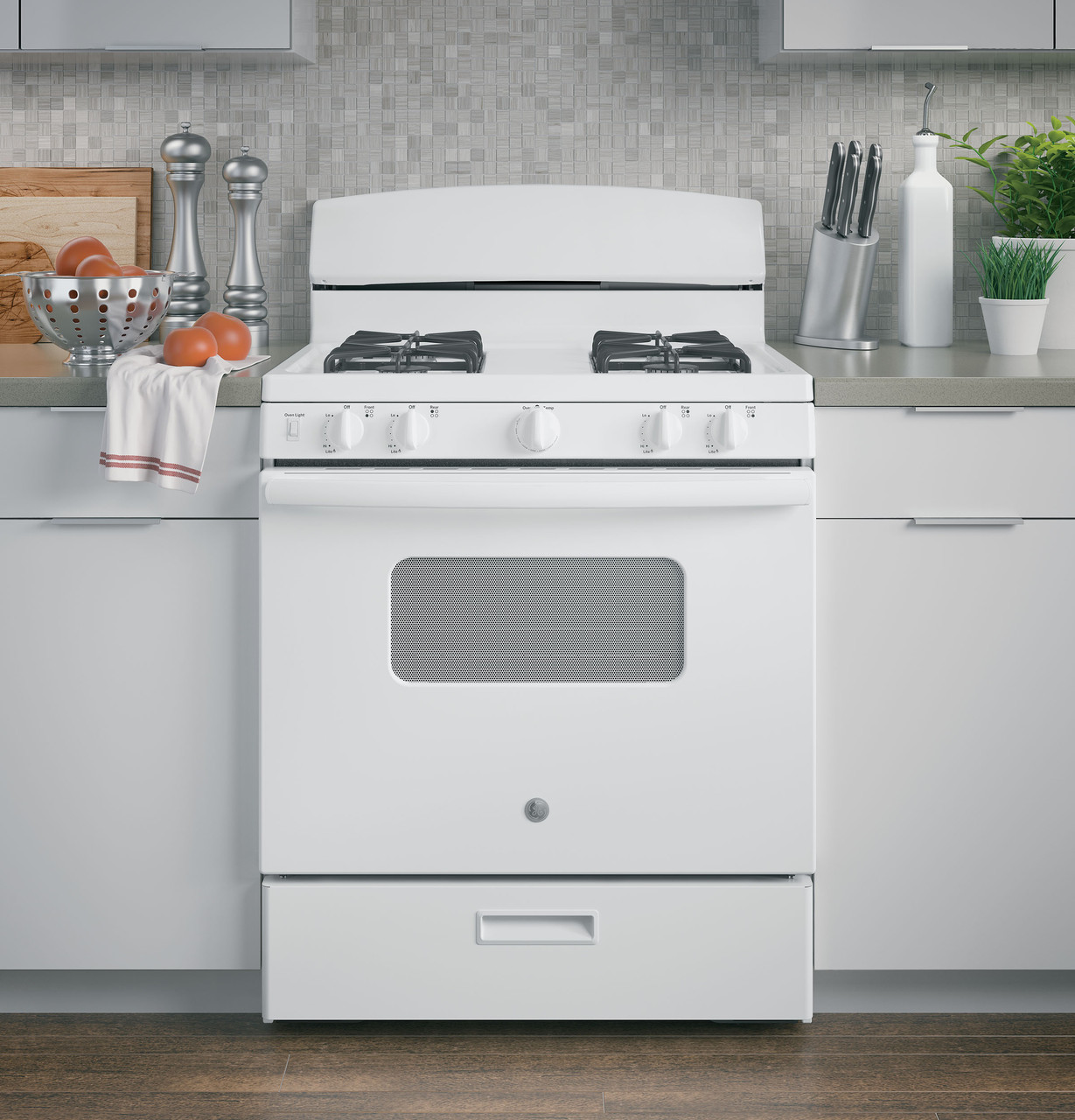

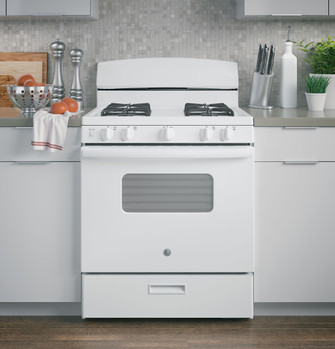

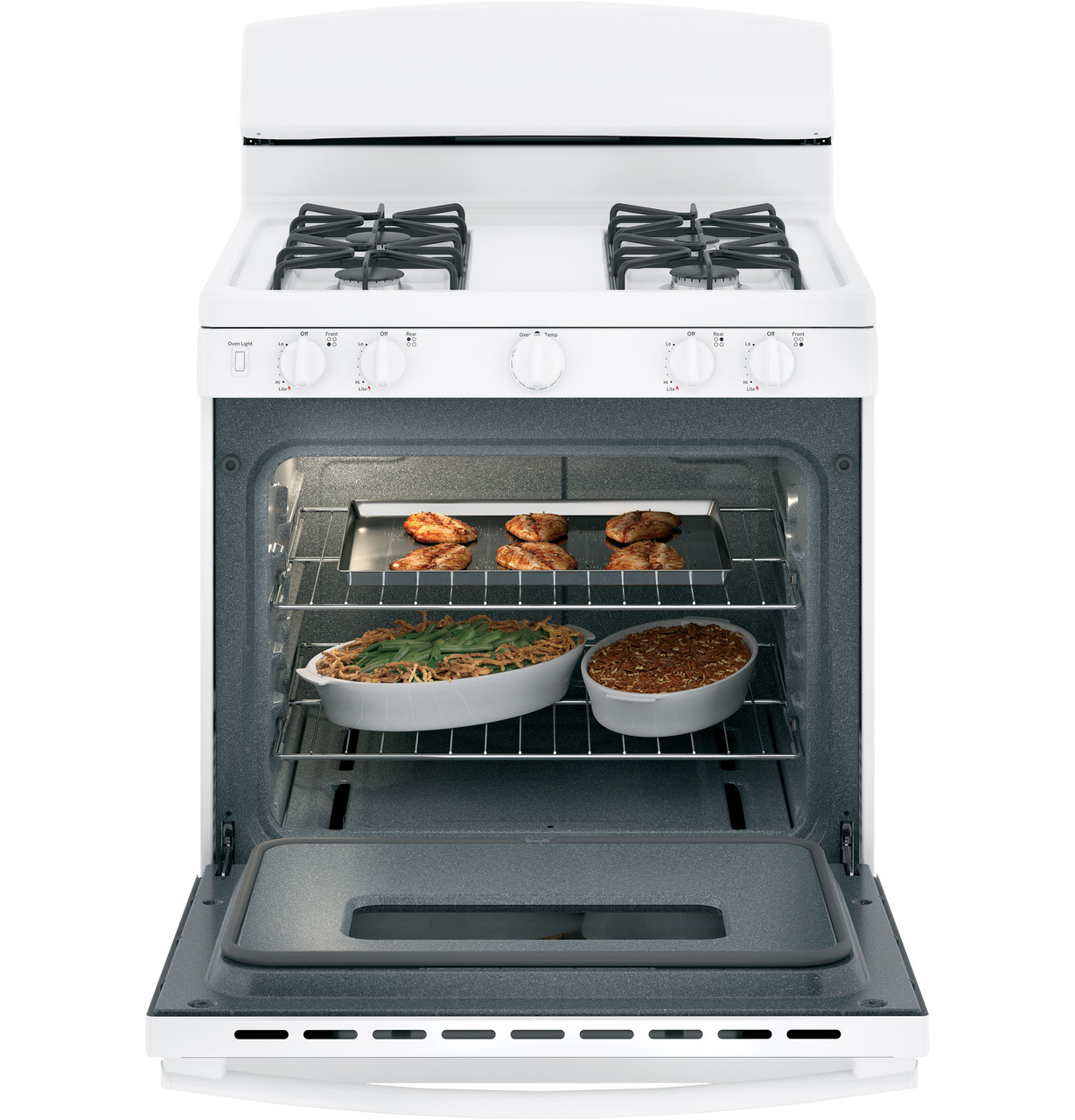

GE® 30" Free-Standing Front Control Gas Range

Model #: JGBS10DEMWW
JGBS10DEMWW
previous image
next image
1/5
Clearance $699.00
Save $15 ON A 3-PACK
  • Front controls
  • 4.8 cu. ft. oven capacity
  • Sealed cooktop burners
  • Dimensions: 46 1/4 H x 30 W x 28 3/4 D
Learn More >

Color: White

Dimensions: 46 1/4 H x 30 W x 28 3/4 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Use & Care Manual View More

Complete Your Laundry Pair:

Current Item
GE® 30" Free-Standing Front Control Gas Range
Model#: JGBS10DEMWW
4.5 out of 5 stars. 1175 reviews
Clearance $699.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

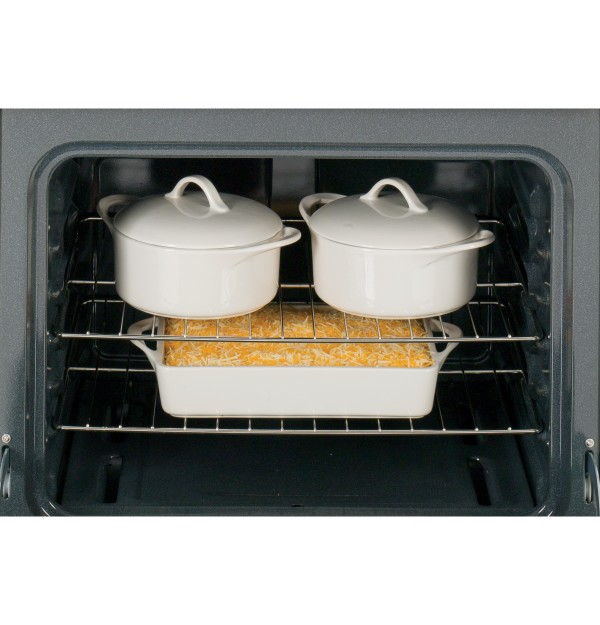

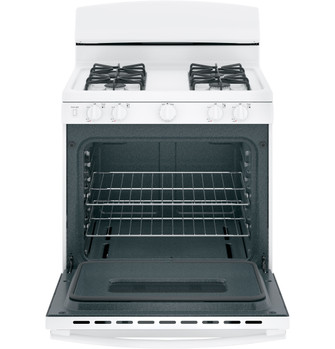

  • 4.8 cu. ft. oven capacity

    4.8 cu. ft. oven capacity

    Enough room to cook an entire meal at once

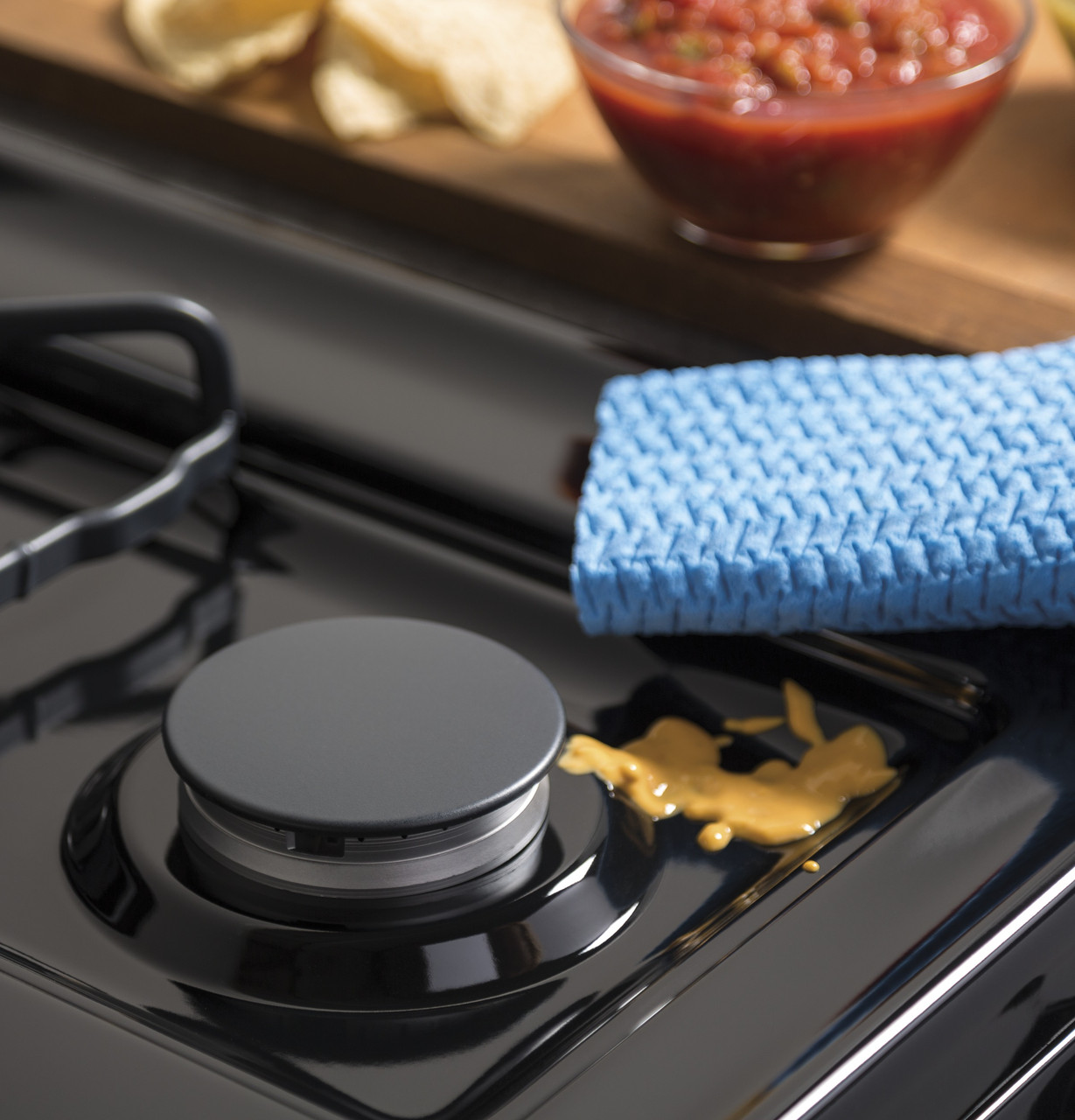

  • Sealed cooktop burners

    Sealed cooktop burners

    Contains spills and make cleaning quick and easy

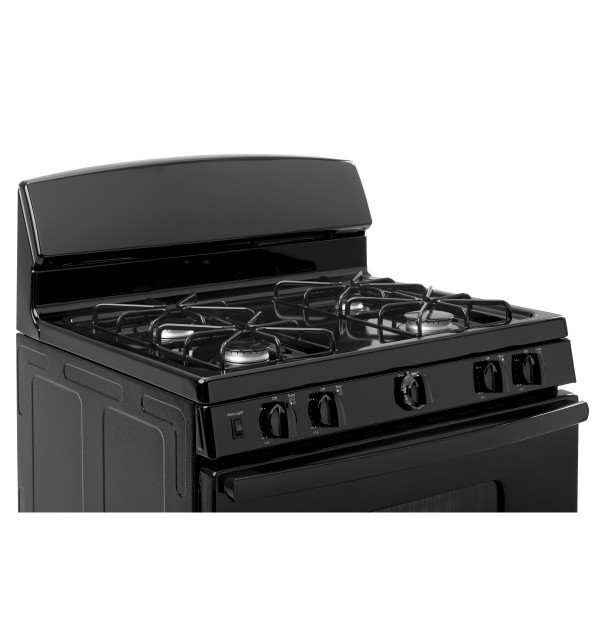

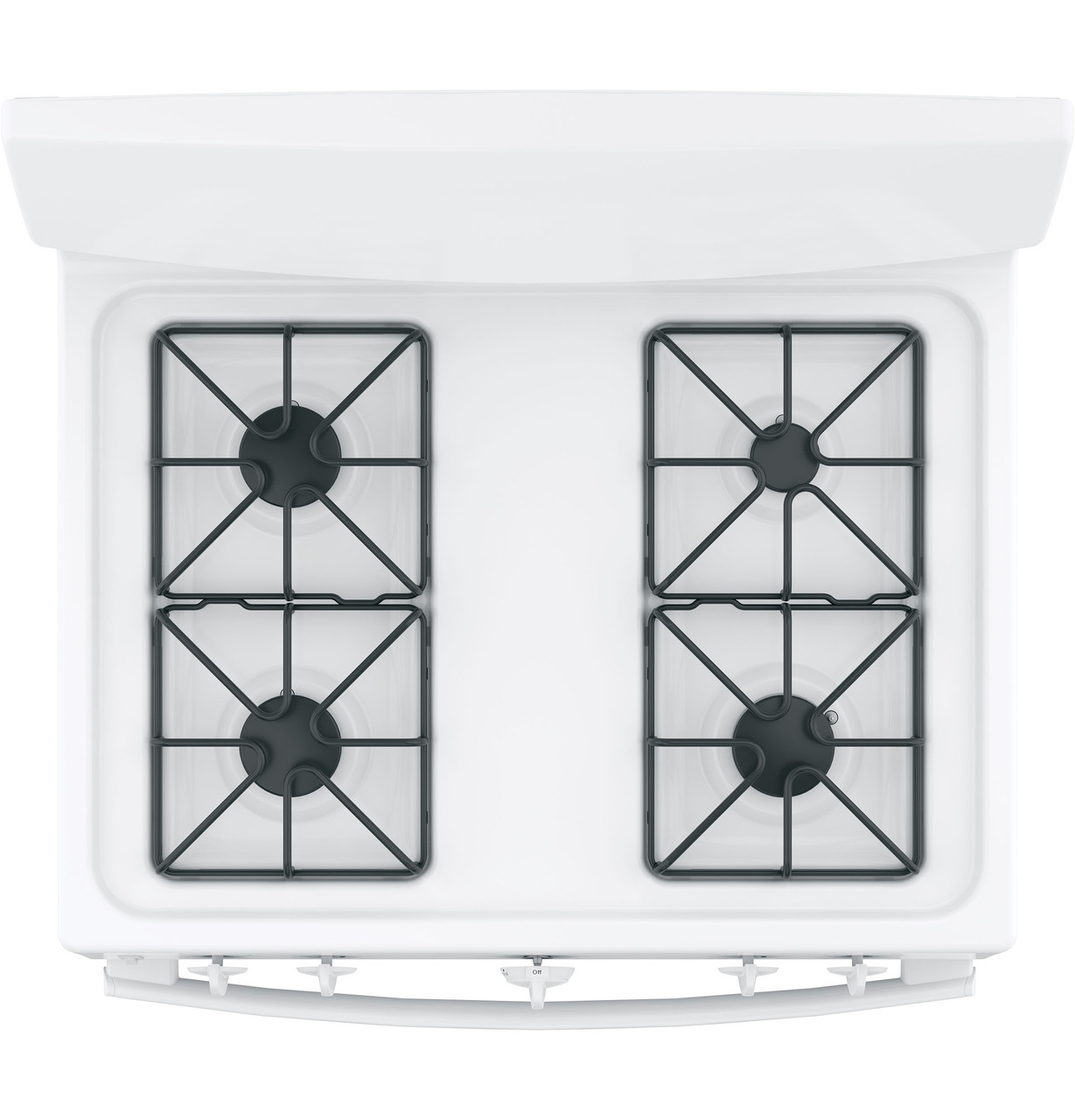

  • Heavy-duty grates

    Heavy-duty grates

    Durable grates are easy to clean and can hold a wide variety of cookware on the stove

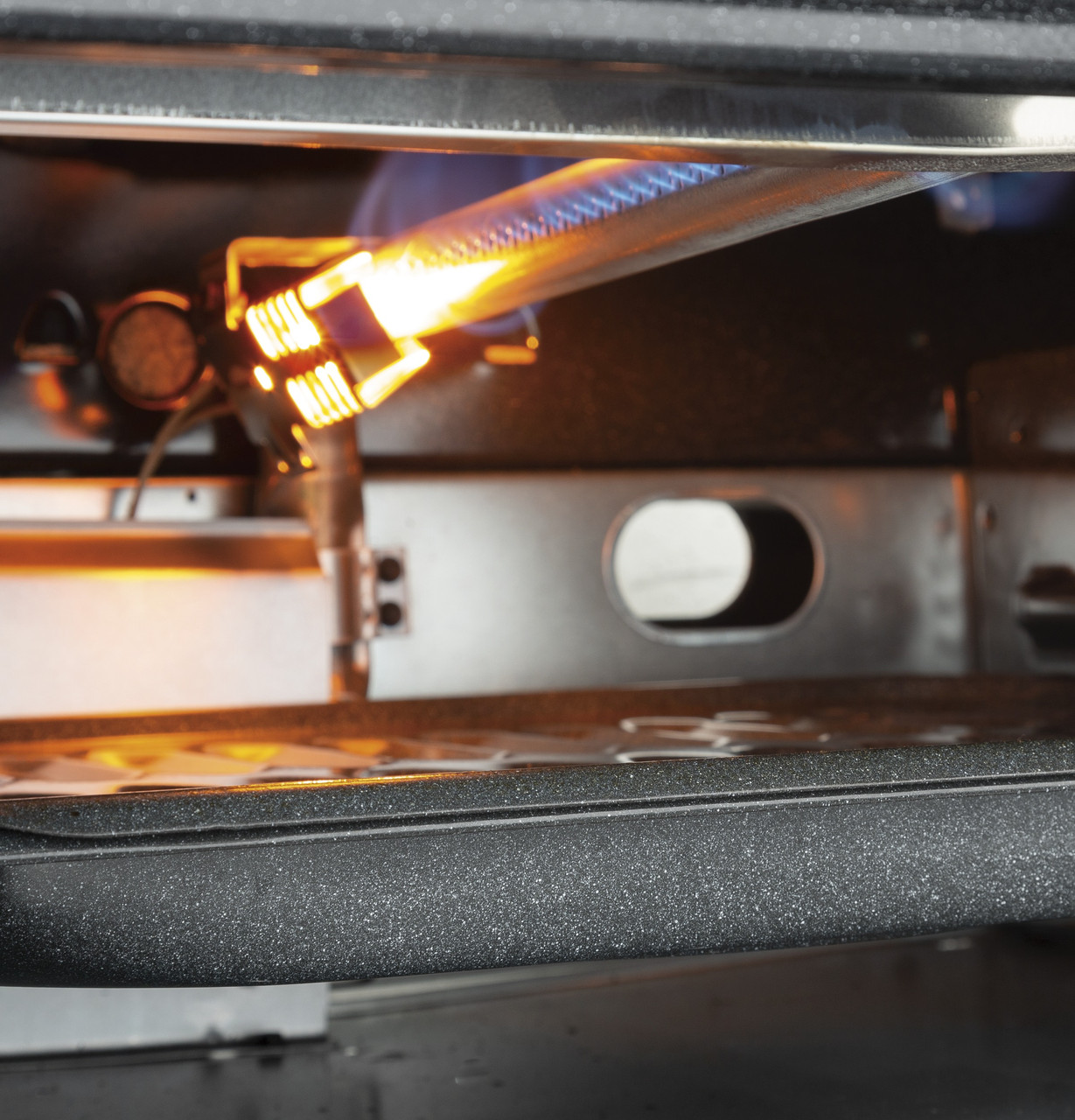

  • Broil option

    Broil option

    A versatile heating element allows for more cooking options in the oven

  • Standard clean oven

    Standard clean oven

    Smooth surface makes cleaning by hand easier

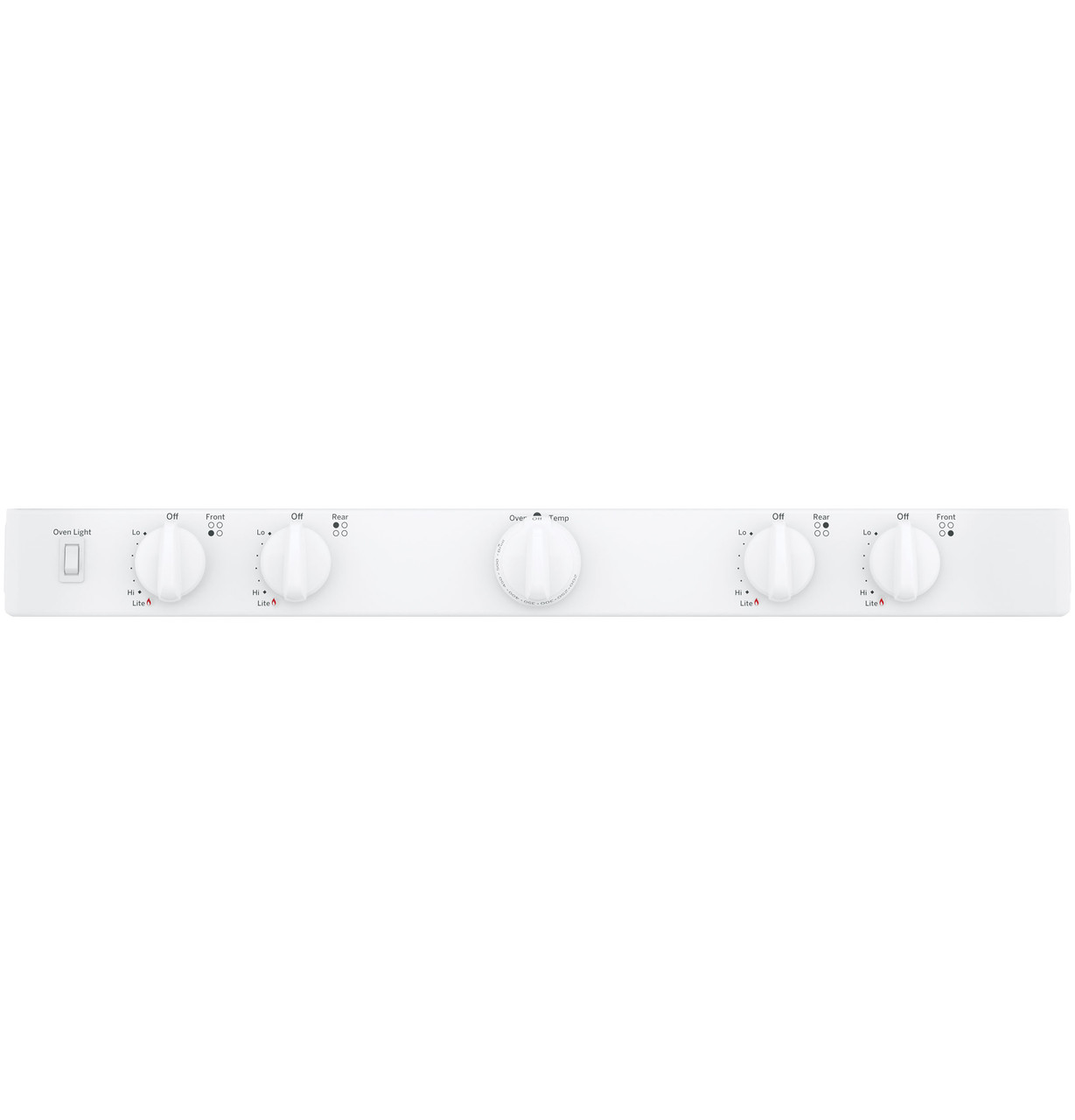

  • Front controls

    Easily-accessible controls make it simple to control the stovetop and oven

See All Features

Claims & Certifications

Specs & Details

Dimensions: 46 1/4 H x 30 W x 28 3/4 D

ACCESSORIES

LP Conversion Kit Included

APPEARANCE

Color Appearance White
Control Knobs Gloss White
Cooktop Burner Grate Color Black Gloss
Handle Designer Style
Oven Door Features Oven Window

CAPACITY

Total Capacity (cubic feet) 4.80 cu ft

FEATURES

Burner - Left Front 9,500 BTU
Burner - Left Rear 9,500 BTU
Burner - Right Front 13,000 BTU
Burner - Right Rear 5,000 BTU Precise Simmer
Configuration Range with Broiler Drawer
Control Location Front
Control Type Rotary knobs
Cooking Technology Traditional
Cooktop Burner Grate Material Heavy Steel
Cooktop Burner Type Sealed
Cooktop Surface Porcelain-Enamel
Cooktop Type Standard Grates
Drawer Type Broiler
Fuel Type Natural Gas
Ignition System Electronic
OU Certified No
Oven Cleaning Type Standard Clean
Oven Interior 1 Incandescent Light

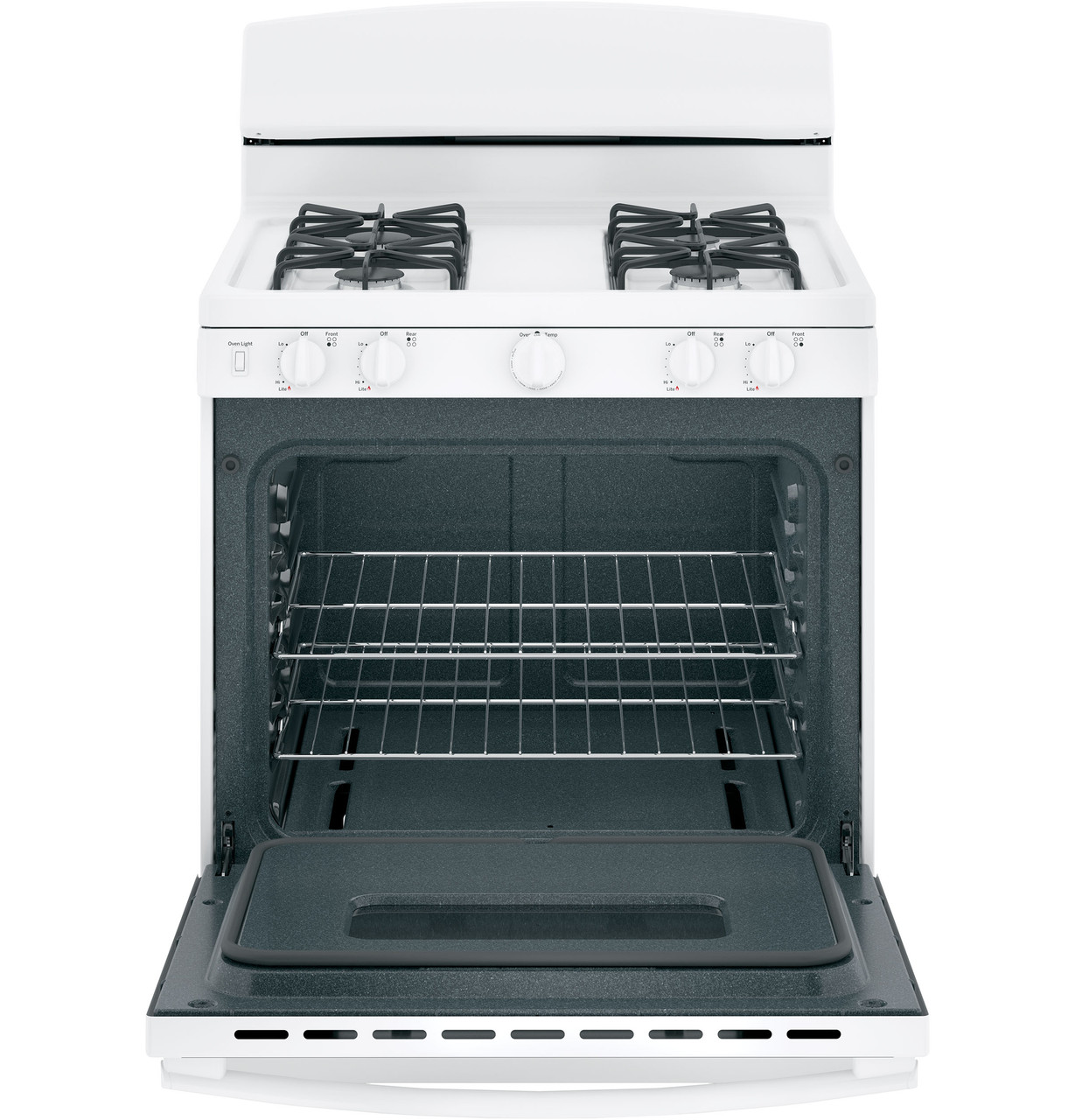

Oven Rack Features 2 Flat Nickel Racks
Oven Rack Positions (Single or Upper/Lower) 6
Product Type Free-Standing Single Oven
Sabbath Mode Yes
Slide - Out Broiler Drawer Drop Down Door
Valves (Degree of Turn) 140

POWER / RATINGS

Bake/Broiler BTU Rating - LP (000's BTU's) 16.0 Bake / 16.0 Broiler
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 18.0 Bake / 18.0 Broiler
Top Burner BTU Rating - LP (000's BTU's) (2) 9.5; (1) 13.0; (1) 5.0
Top Burner BTU Rating - Nat. Gas (000's BTU's) (1) 13.0; (2) 9.5, (1) 5.0
Volts/Hertz/Amps 120v; 60Hz; 15A

WARRANTY

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

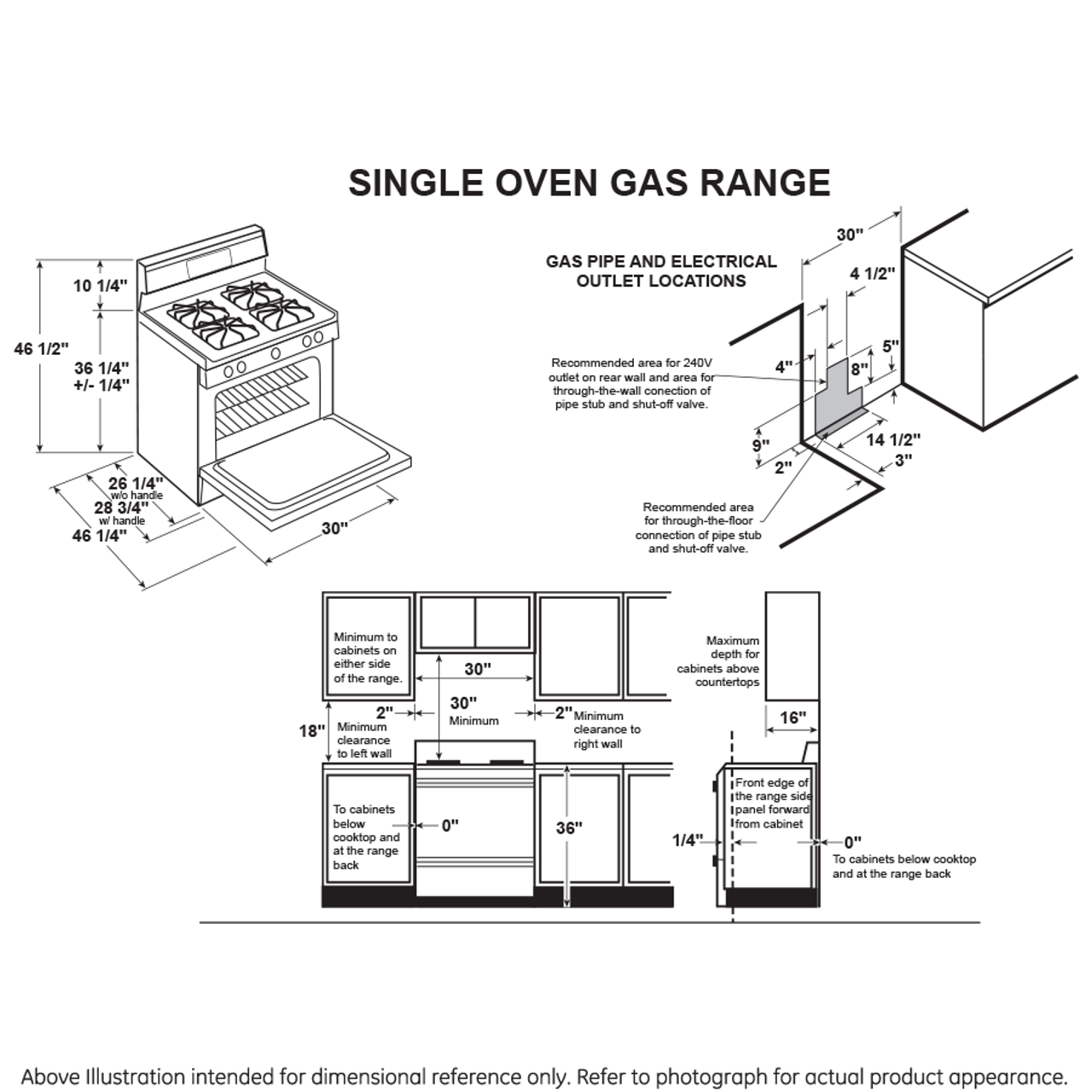

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 165 lb
Cabinet Width 30 in
Depth with Door Open 46 1/4 in
Depth Without Handle 26 1/4 in
Height to Cooking Surface (in.) 36 - 36 1/2
Net Weight 145 lb
Oven Interior Dimensions (W x H x D) (in.) 24 x 18-1/2 x 19
Overall Depth 28 3/4 in
Overall Height 46 1/4 in
Overall Width 30 in
