GE® 30" Free-Standing Gas Convection Range

Model #: JGB296DETBB
JGB296DETBB
previous image
next image
1/5
Clearance $949.00
Save $15 ON A 3-PACK
  • Self-clean oven
  • 5.0 cu. ft. oven capacity
  • Gas convection oven
  • Dimensions: 46 1/8 H x 30 W x 26 5/8 D
Learn More >

Color: Black on Black

  • Black on Black
Dimensions: 46 1/8 H x 30 W x 26 5/8 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder No Sellers FoundNo Sellers Found

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Use & Care Manual View More

Complete Your Laundry Pair:

Current Item
GE® 30" Free-Standing Gas Convection Range
Model#: JGB296DETBB
4.5 out of 5 stars. 4 reviews
Clearance $949.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

  • Self-clean oven

    Self-clean oven

    Cleans the oven cavity without the need for scrubbing

    Play Video

  • 5.0 cu. ft. oven capacity

    Enough room to cook an entire meal at once

  • Gas convection oven

    Circulates heat for high-quality results

  • 16,500 BTU Power Boil burner

    Delivers intense heat for rapid boiling

  • Center round burner

    Fifth burner provides more cooking flexibility

  • Precise Simmer burner

    Delivers a low setting of 140 degrees

See All Features

Claims & Certifications

Specs & Details

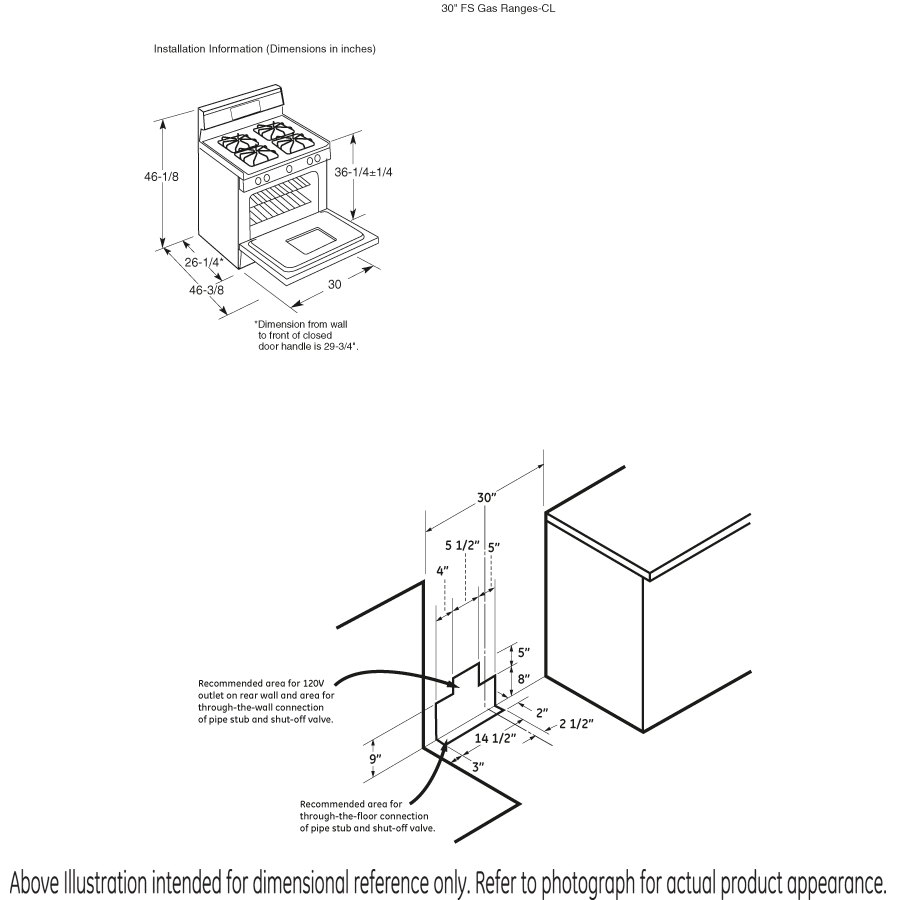

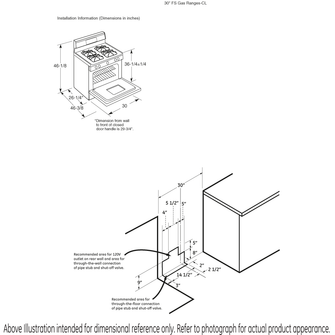

Dimensions: 46 1/8 H x 30 W x 26 5/8 D

ACCESSORIES

LP Conversion Kit Included

APPEARANCE

Color Appearance Black on Black
Control Knobs Designer-Style
Cooktop Burner Grate Color Matte Black
Frameless Oven Door(s) Black Glass
Handle Color Color-Matched
Handle Design D-shaped
Oven Door Features Big Hearth Oven Window

CAPACITY

Total Capacity (cubic feet) 5.00 cu ft

FEATURES

All-Purpose Burners (1) 9,500 BTU
Backguard Porcelain-Enameled
Scratch-Resistant
Center Round Burner (1) 5,000 BTU
Cleaning Time Variable
Configuration Range with Storage Drawer
Control Type Digital Temperature Display
Electronic Oven Controls
Cooking Technology Convection
Cooktop Burner Grate Features Continuous Grates
Cooktop Burner Grate Material Heavy Cast
Cooktop Burner Type Sealed
Cooktop Surface Deep Recessed
One-Piece Upswept
Porcelain-Enamel
Fuel Type Natural Gas
High Output Burner (1) 11,000 BTU
Ignition System Electronic
Interior Oven Light Yes
Leveling System 4 Leveling Legs
Oven Cleaning Type Self-Clean
Oven Control Features Delay Bake Option (Time Bake)
Sabbath Mode
Control Lock Capability
Delay Clean Option
Digipad Numeric Entry
Hi / Low Broil
In-Oven Broiling
Audible Preheat Signal
Auto Oven Shut-Off
Auto Self Clean
Electronic Clock and Timer
Automatic Oven Timer (Time Bake)
Self-Clean Cool Down Time Display
Oven Cycle Light
Oven "ON" Light
Oven Interior Interior Oven Light
Oven Rack Features 2 Oven Racks
Embossed Rack Positions
Oven Rack Positions (Single or Upper/Lower) 6
Power Boil Burner (1) 16,500 BTU
Precise Simmer Burner (1) 5,000 BTU/140F degree simmer
Temperature Management System True Temp System
Valves (Degree of Turn) 270

POWER / RATINGS

Bake/Broiler BTU Rating - LP (000's BTU's) 16.0 Bake / 12.0 Broiler
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 16.0 Bake / 13.5 Broiler
Top Burner BTU Rating - LP (000's BTU's) (1) 11.0; (1) 10.0; (1) 9.5; (2) 5.0
Top Burner BTU Rating - Nat. Gas (000's BTU's) (1) 16.5; (1) 11.0; (1) 9.5; (2) 5.0
Volts/Hertz/Amps 120V; 60Hz; 5A

WARRANTY

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 210 lb
Cabinet Width 30 in
Depth with Door Open 90° 46 3/8 in
Height to Cooking Surface (in.) 36 +/- 1/4
Net Weight 190 lb
Oven Interior Dimensions (W x H x D) (in.) 24 x 19 x 19
Overall Depth 26 5/8 in
Overall Height 46 1/8 in
Overall Width 30 in
See All Specifications
