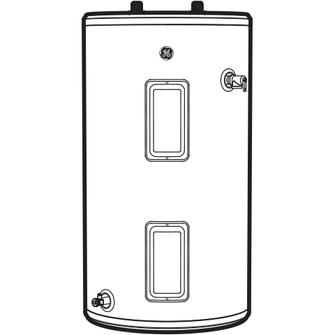

GE® 30 Gallon Short Electric Water Heater

Model #: GE30S08BAM
  • Real Capacity
  • Leading Performance
  • Household Size

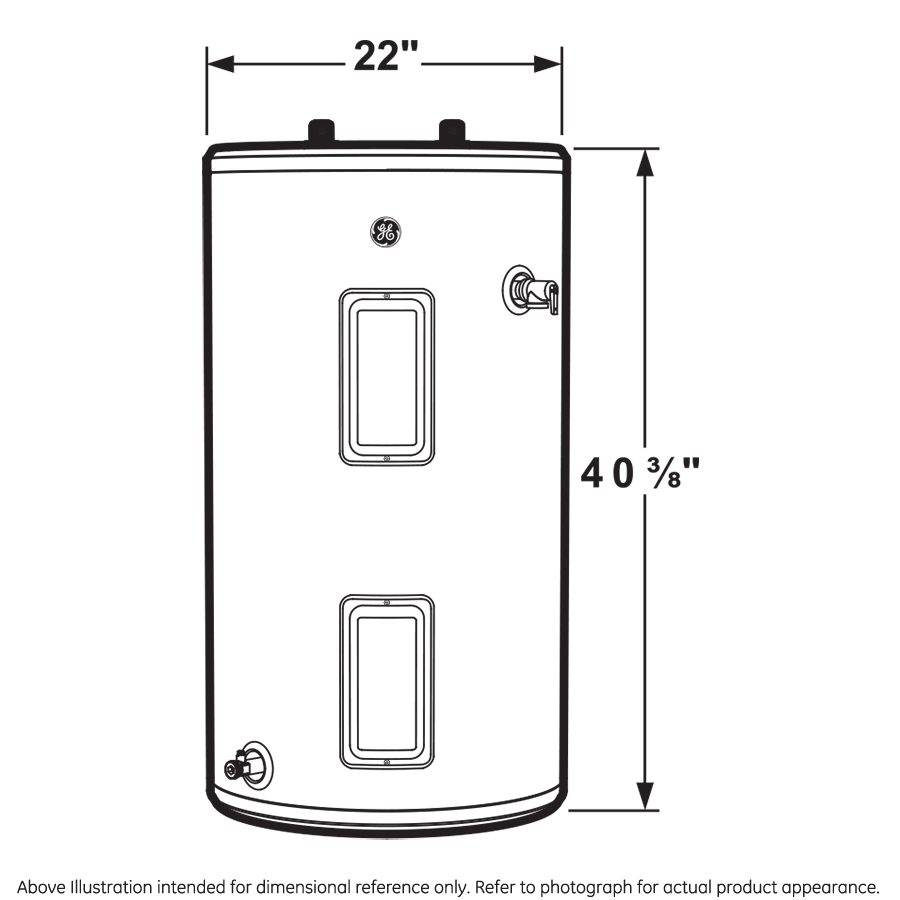

  • Dimensions: 41 7/8 H x 22 W x 22 D
Learn More >

Color: Gray

  • Gray
Dimensions: 41 7/8 H x 22 W x 22 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
BUY FROM A LOCAL PRO
Loading Store Finder

Frequently Bought Together:

Complete Your Laundry Pair:

Current Item
Model#: GE30S08BAM
Clearance $499.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

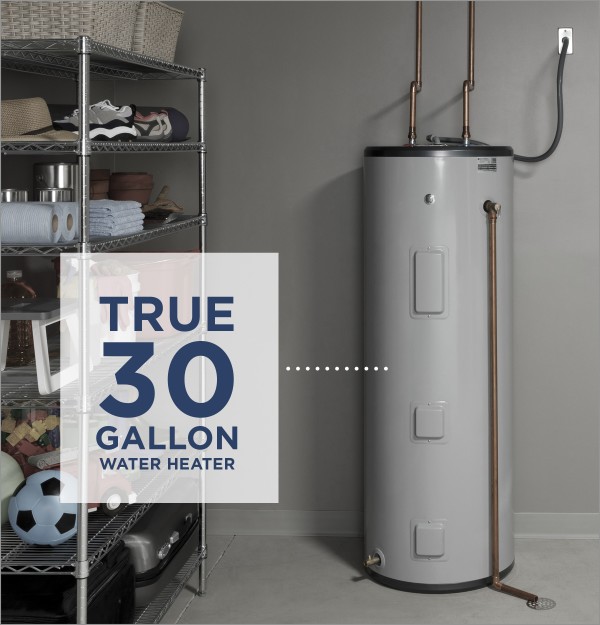

  • Real Capacity

    Real Capacity

    Get the most hot showers from the only water heater that holds a true 30 gallons of water (Compared to 30 gallon electric steel tank water heaters per DOE rated gallon capacity)

  • Leading Performance

    Leading Performance

    Live comfortably with this best in class unit that delivers 53 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

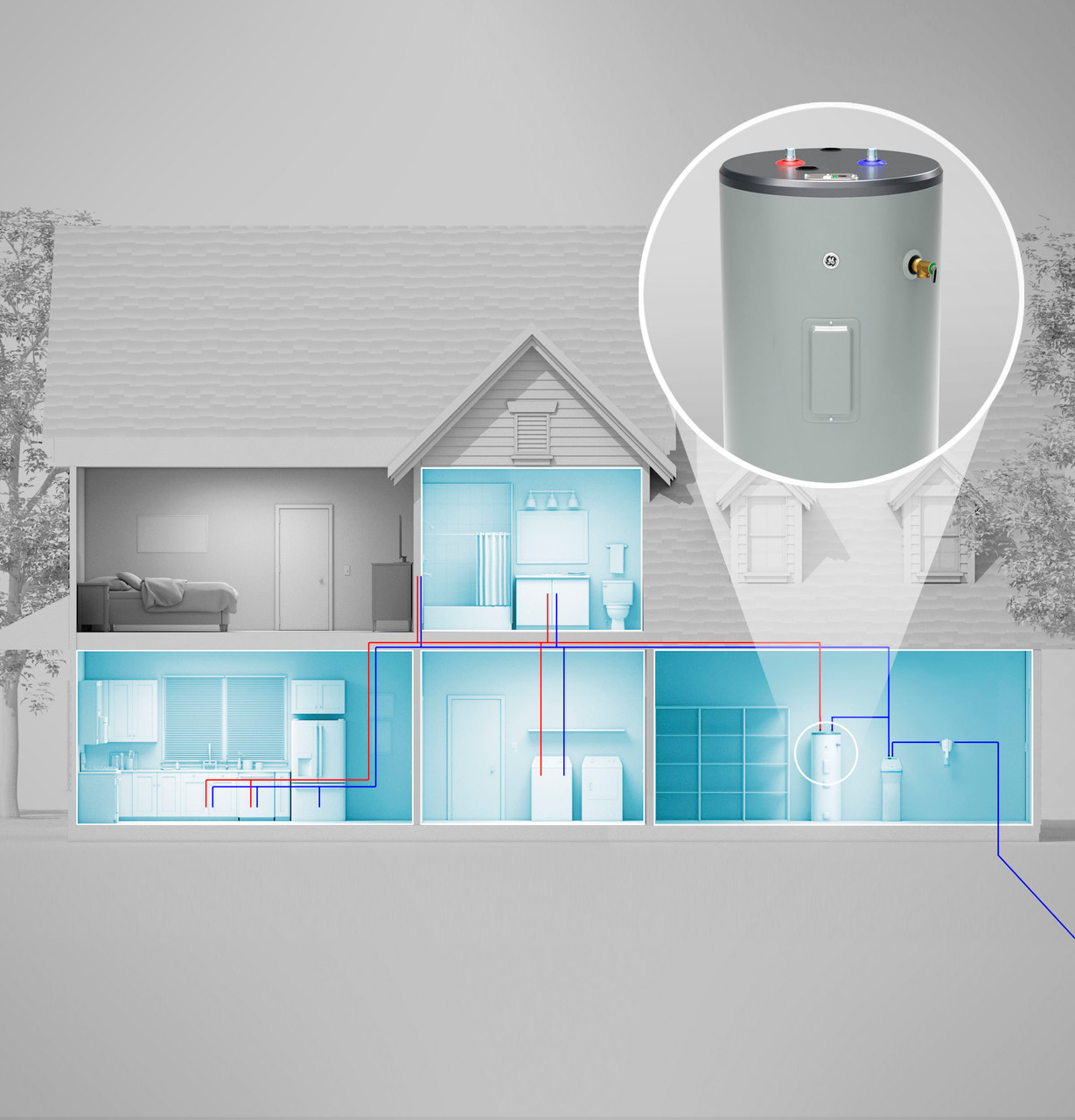

  • Household Size

    Household Size

    Provide hot water for the whole family of 1 to 3 persons

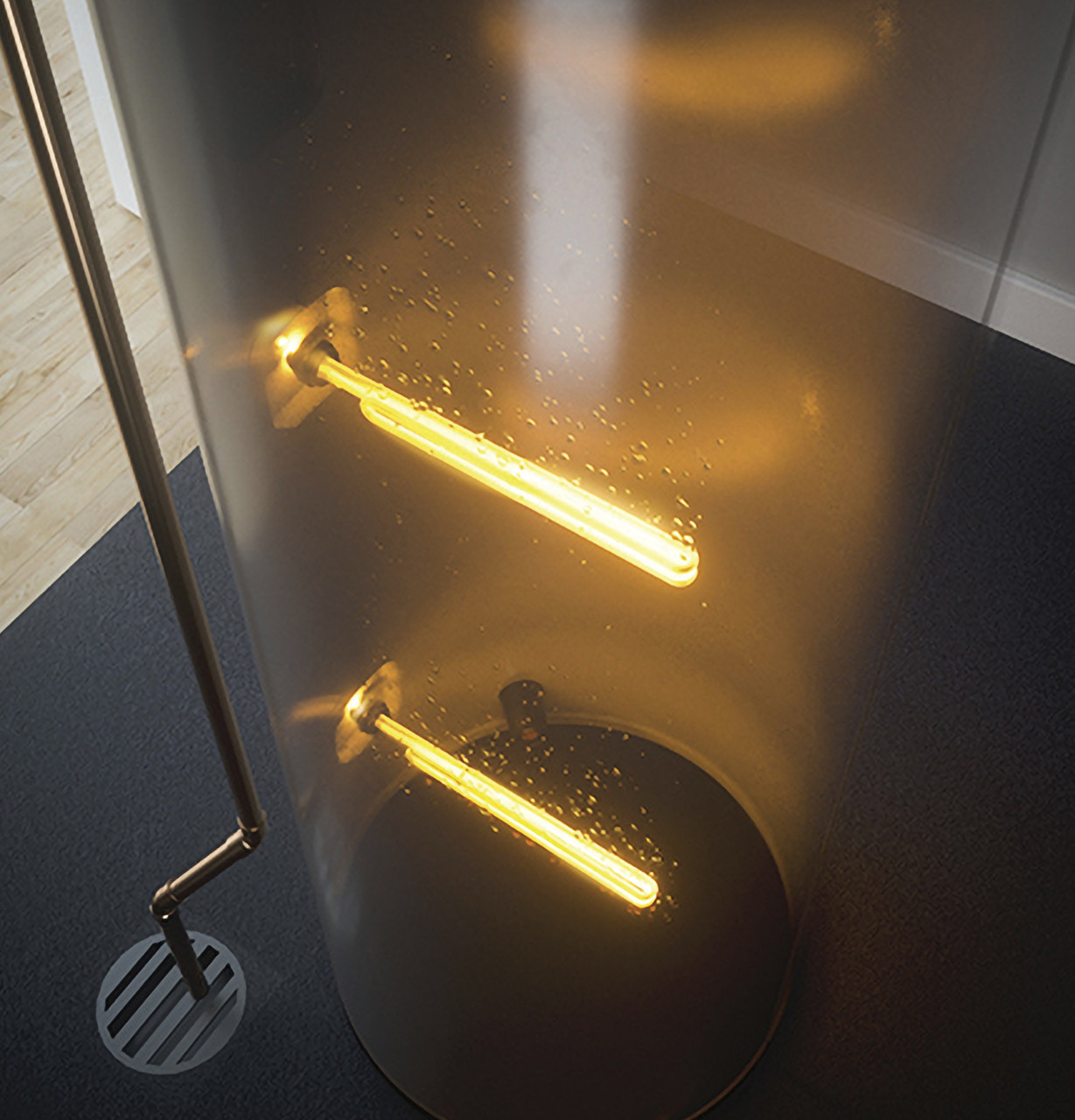

  • Quick Recovery

    Two 5500W heating elements quickly increase water temperature for hot water when you need it

    Play Video

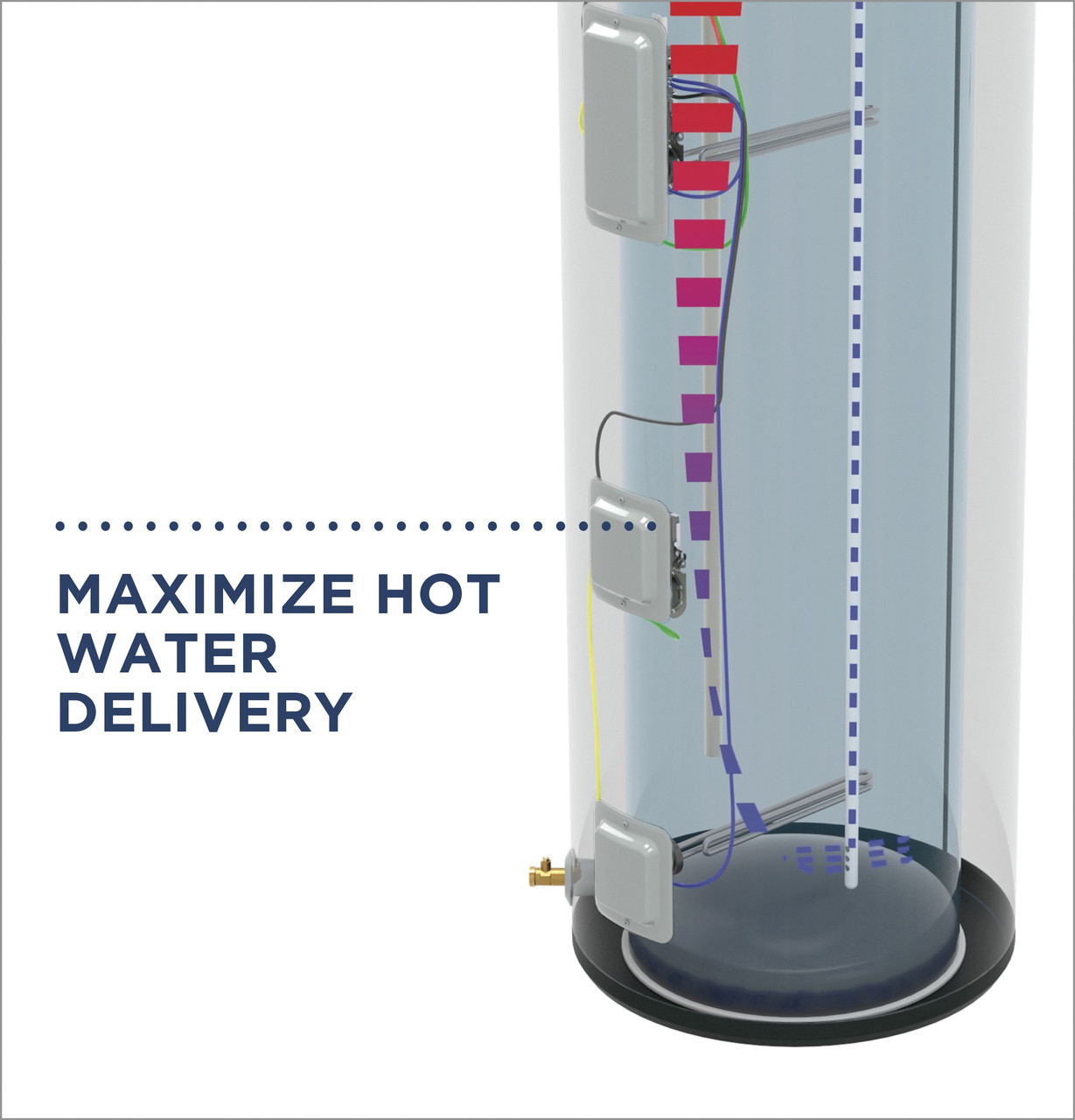

  • Inlet Tube

    Inlet Tube

    Replenishes water from the bottom of the tank to maximize hot water delivery

  • Easy Set Up

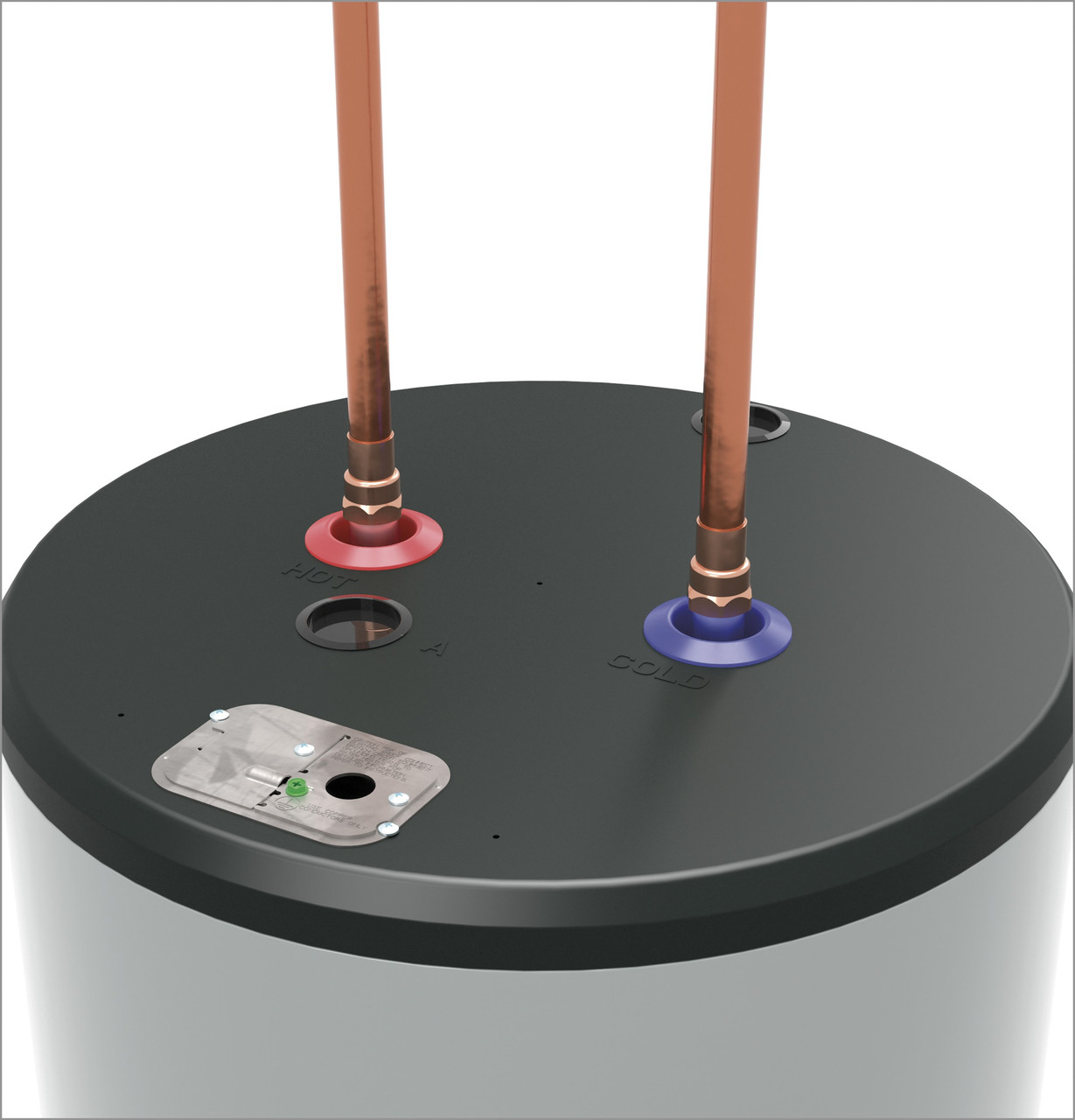

    Easy Set Up

    Replace your old water heater quickly and easily using standard water and electrical connections

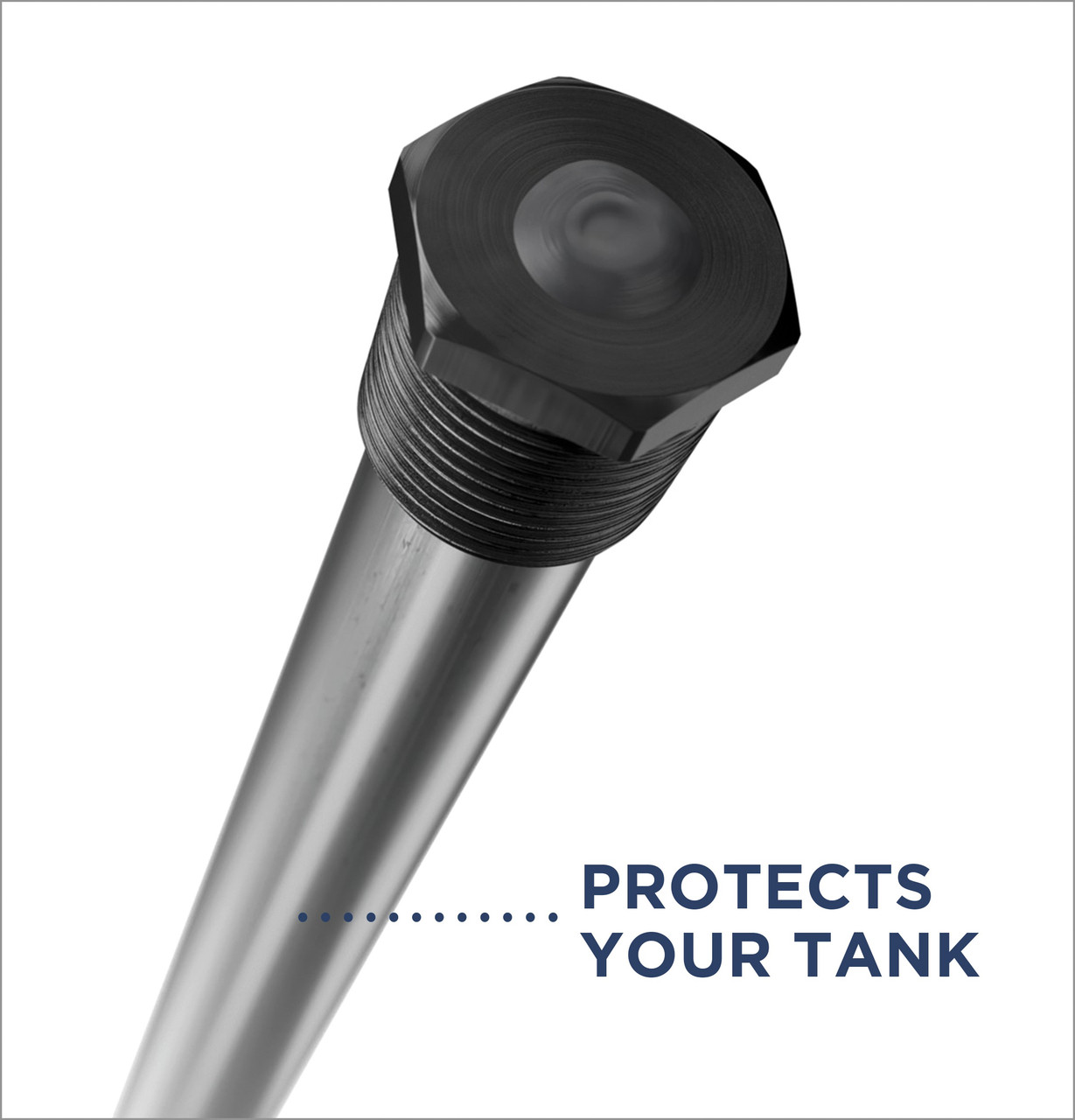

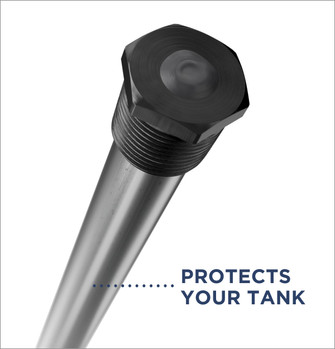

  • Anode Rod

    Anode Rod

    Durable design offers long-lasting protection against corrosion

  • Brass Drain Valve

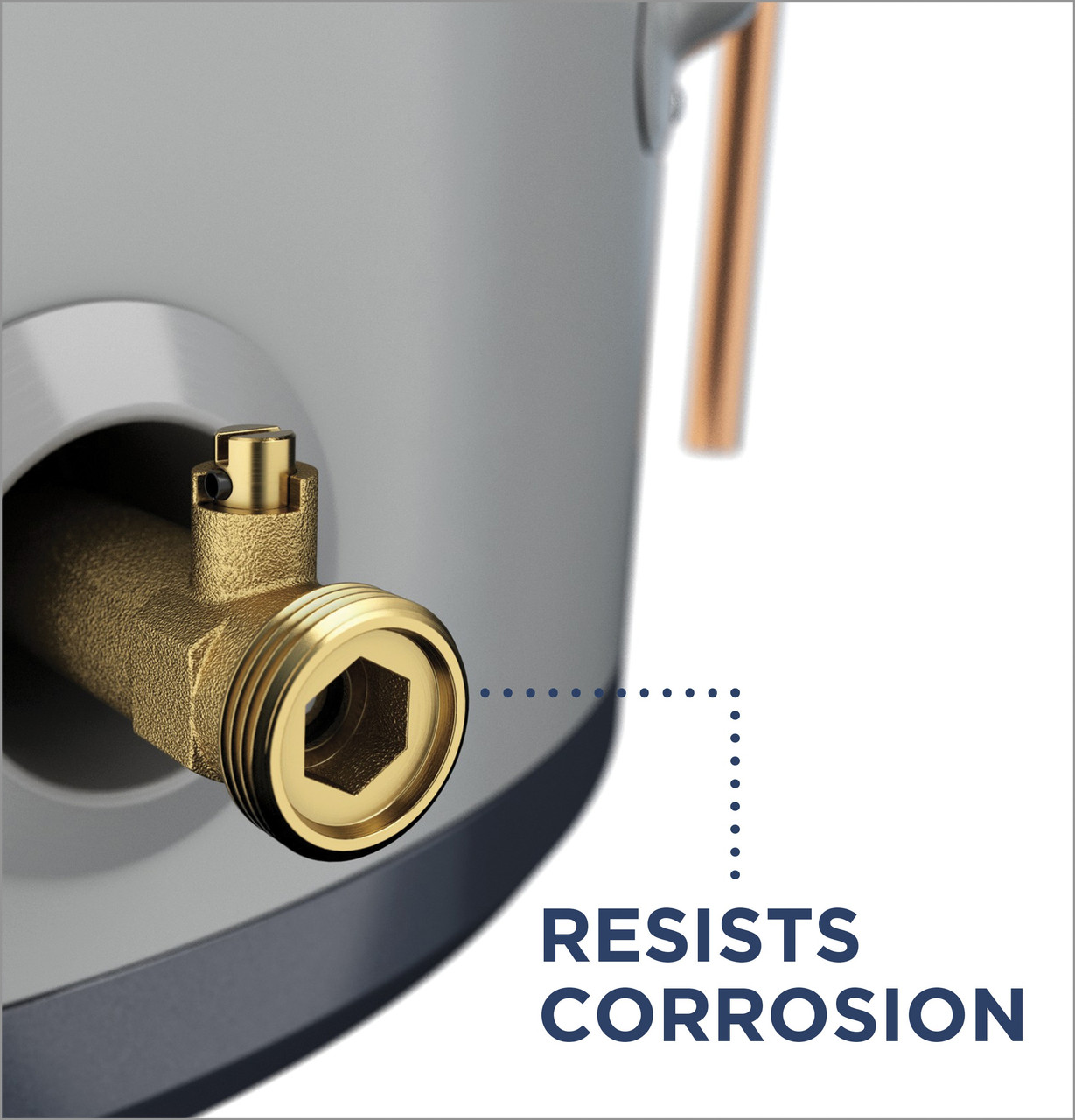

    Brass Drain Valve

    Rust-proof construction can be counted on to provide long-lasting service

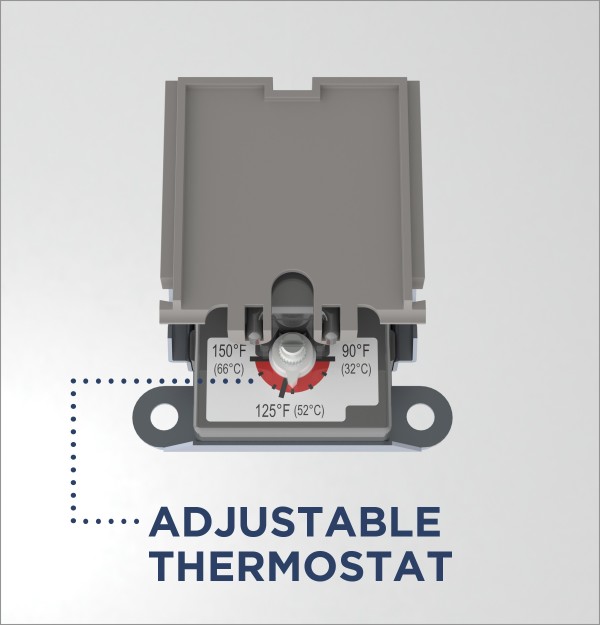

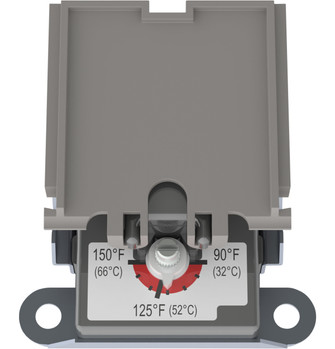

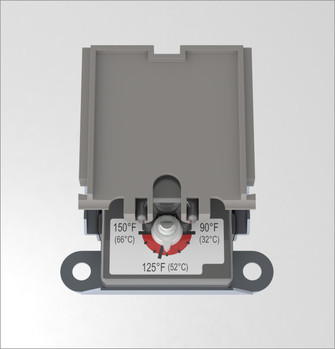

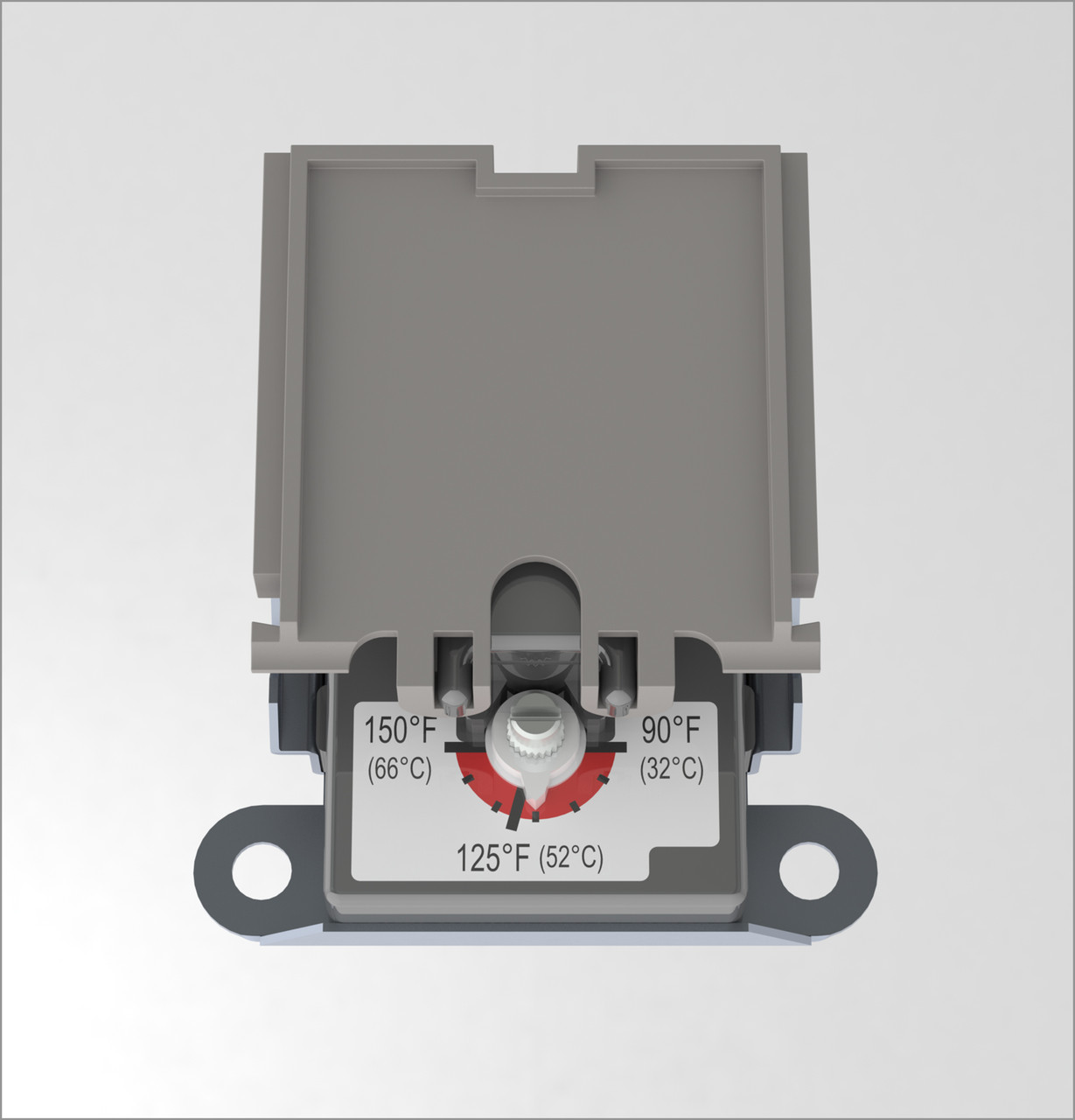

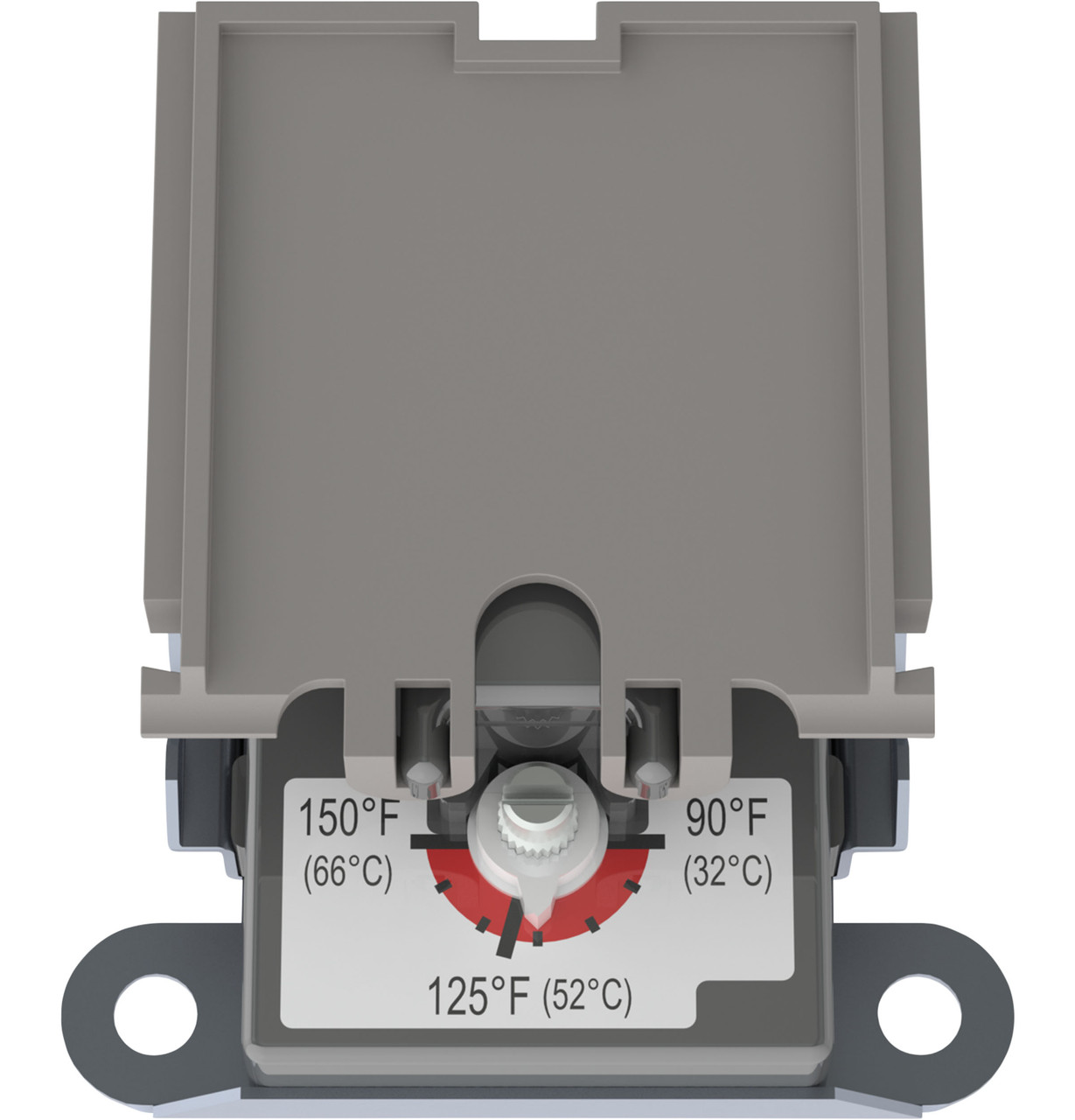

  • Adjustable Thermostat

    Adjustable Thermostat

    Change temperature to your desired setting

  • undefined

See All Features

Dimensions: 41 7/8 H x 22 W x 22 D

APPEARANCE

Color Appearance Gray

CAPACITY

Unit Capacity 30 Gallons

FEATURES

Configuration Short
Control Type Thermostat
Drain Valve Type Plastic
Family Size 1-3 People
Foam Insulation Yes
Fuel Type Electric
GPH Recovery @ 90 Degrees F 25.1
Heating Element Copper
Height Description Short
Installation Location Indoor
Insulation Thickness 2.75 in
Mobile Home Compatible No
Operating Modes Standard Electric
Point of Use No
Product Type Electric Thermostat
Rated Storage Capacity 30
Temp & Pressure Relief Valve Yes
Temperature Setting 90-150° F Range
Temperature Setting Factory Default 120° F
Water Connection Location Top

POWER / RATINGS

Electrical Circuit Required 208V/240V 60 Hz Dedicated 30 Amp Min.
Electrical Connection Direct-Wire
First Hour Rate (FHR) 53 Gallons
Heating - Electric - Heater Watts 5500/5500
Integrated Energy Factor 0.92
Operating Water Pressure 20-125 PSI
Voltage (MAX) 240 V
Volts/Hertz 240V; 60Hz

WARRANTY

Labor Warranty 1-year limited
Parts Warranty 8-year limited
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 111 lb
Connection Sizes - Hot Water Outlet (MNPT) 3/4"
Connection Sizes - Water Inlet (MNPT) 3/4"
Net Weight 101 lb
Overall Depth 22 in
Overall Height 41 7/8 in
Overall Width 22 in
Product Diameter 22 in
Product Height (to top of unit) 40 3/8 in
Product Height (to top of water inlet/outlet connections) 41 7/8 in
