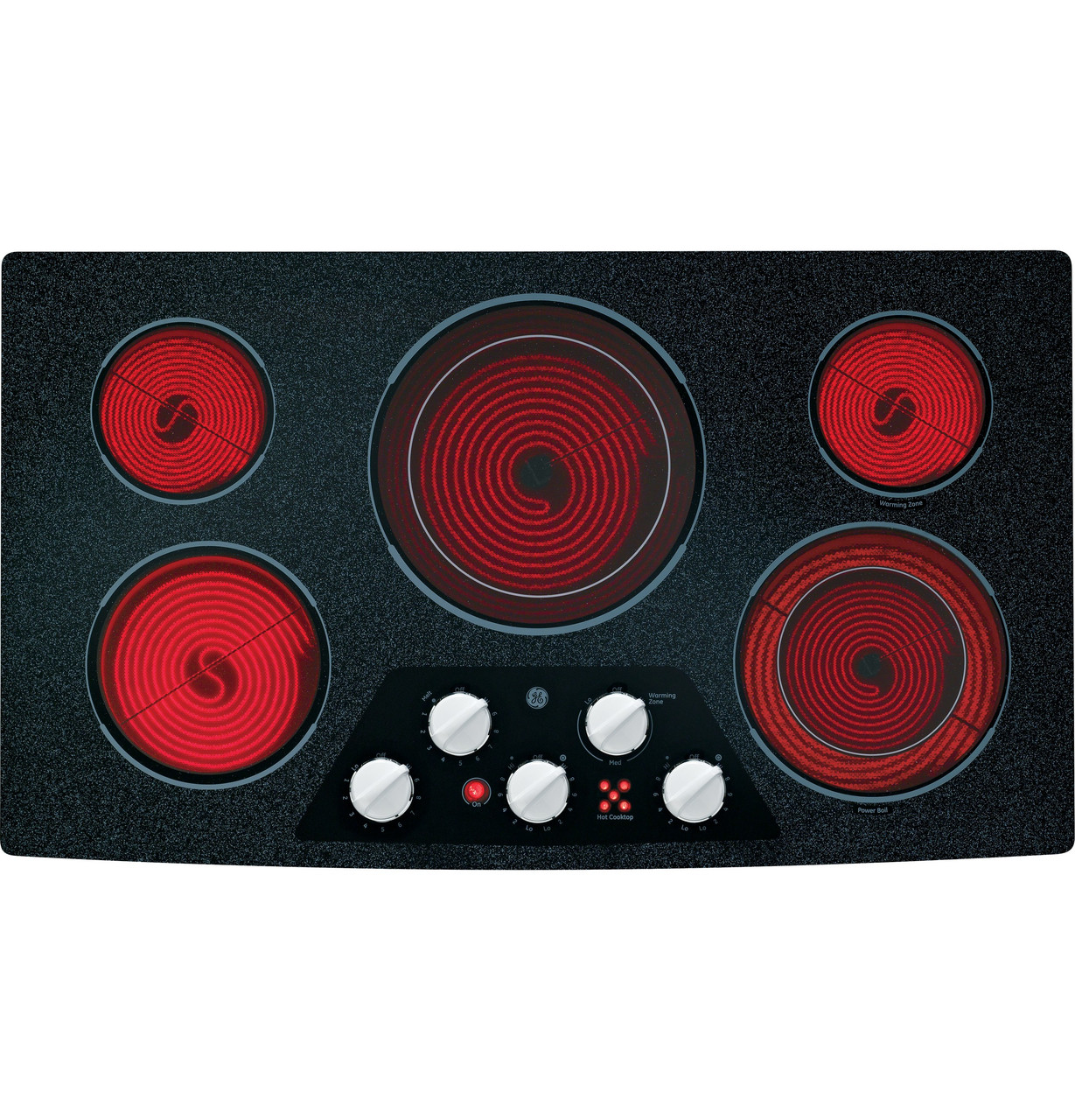

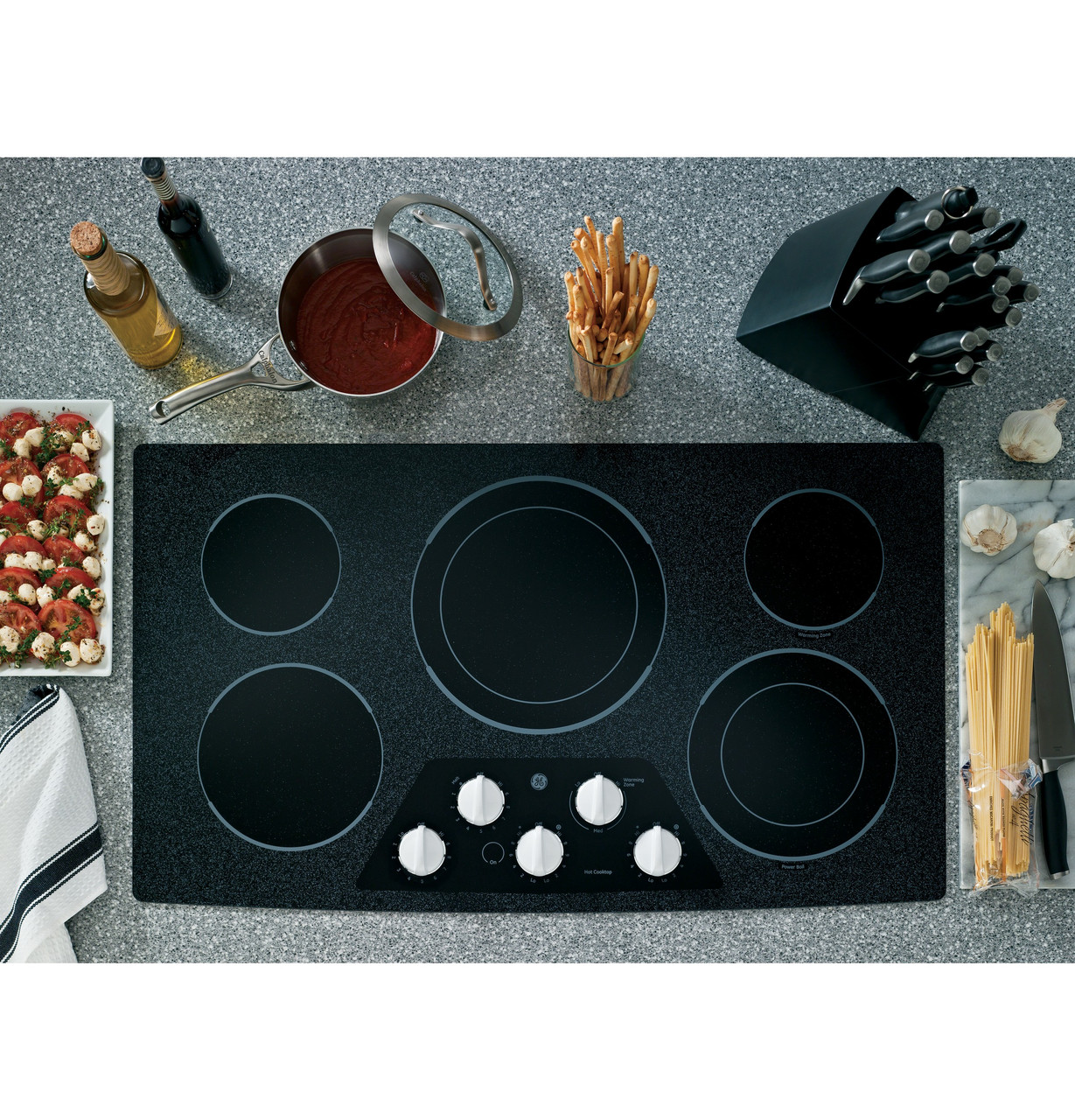

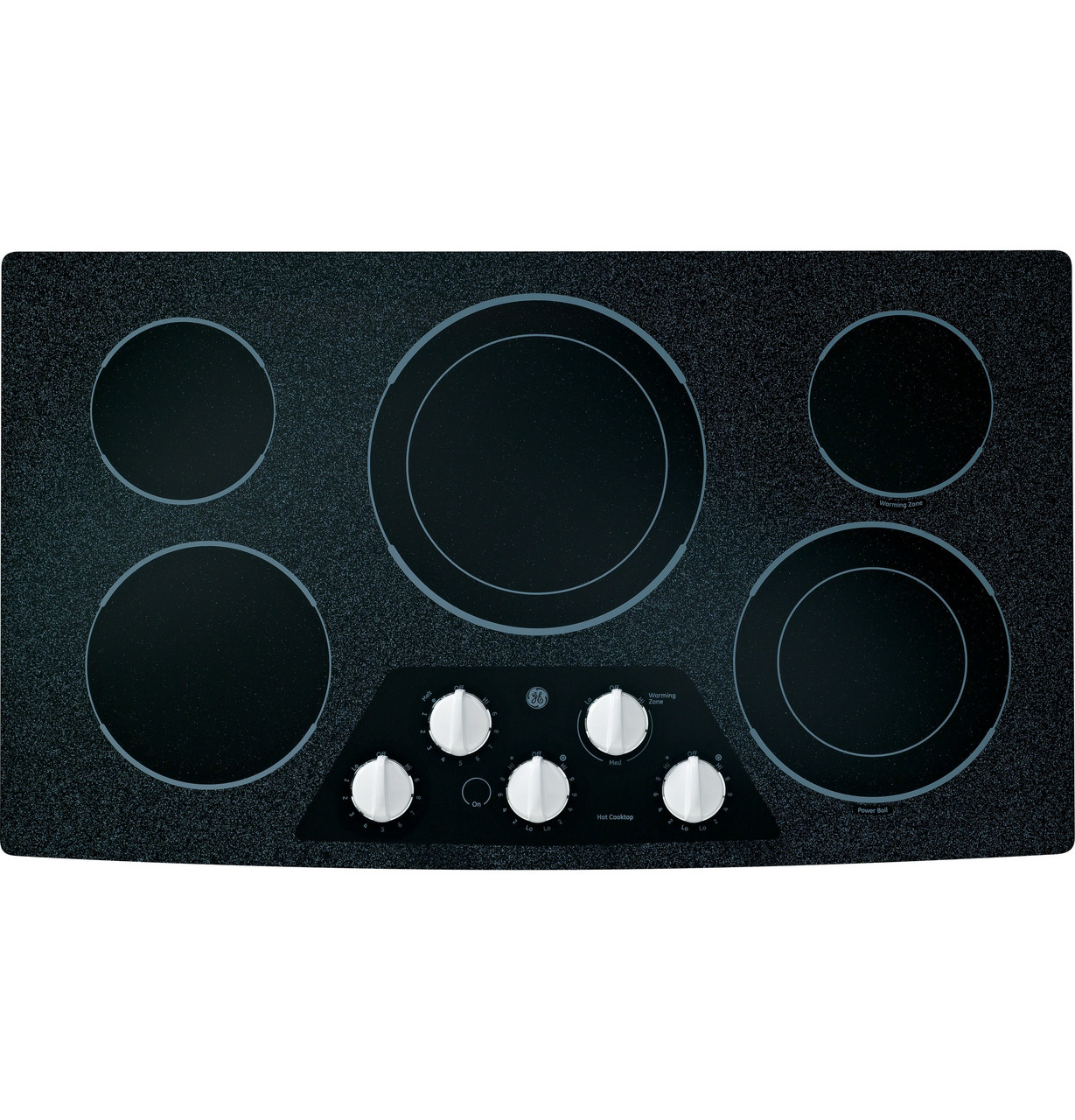

GE® 36" Built-In Electric Cooktop

Model #: JP656DDWW
Clearance $800.00
Save $15 ON A 3-PACK
  • Ceramic-glass cooktop
  • Ribbon heating elements
  • 12"/9" dual element
  • Dimensions: 3 1/4 H x 36 W x 20 7/8 D
Learn More >

Color: White

  • White
Dimensions: 3 1/4 H x 36 W x 20 7/8 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Complete Your Laundry Pair:

Current Item
Model#: JP656DDWW
Clearance $800.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes
  • 12

    12"/9" dual element

    Choose a 12" or 9" heating element

  • Ceramic-glass cooktop

    Cleanup is quick and easy

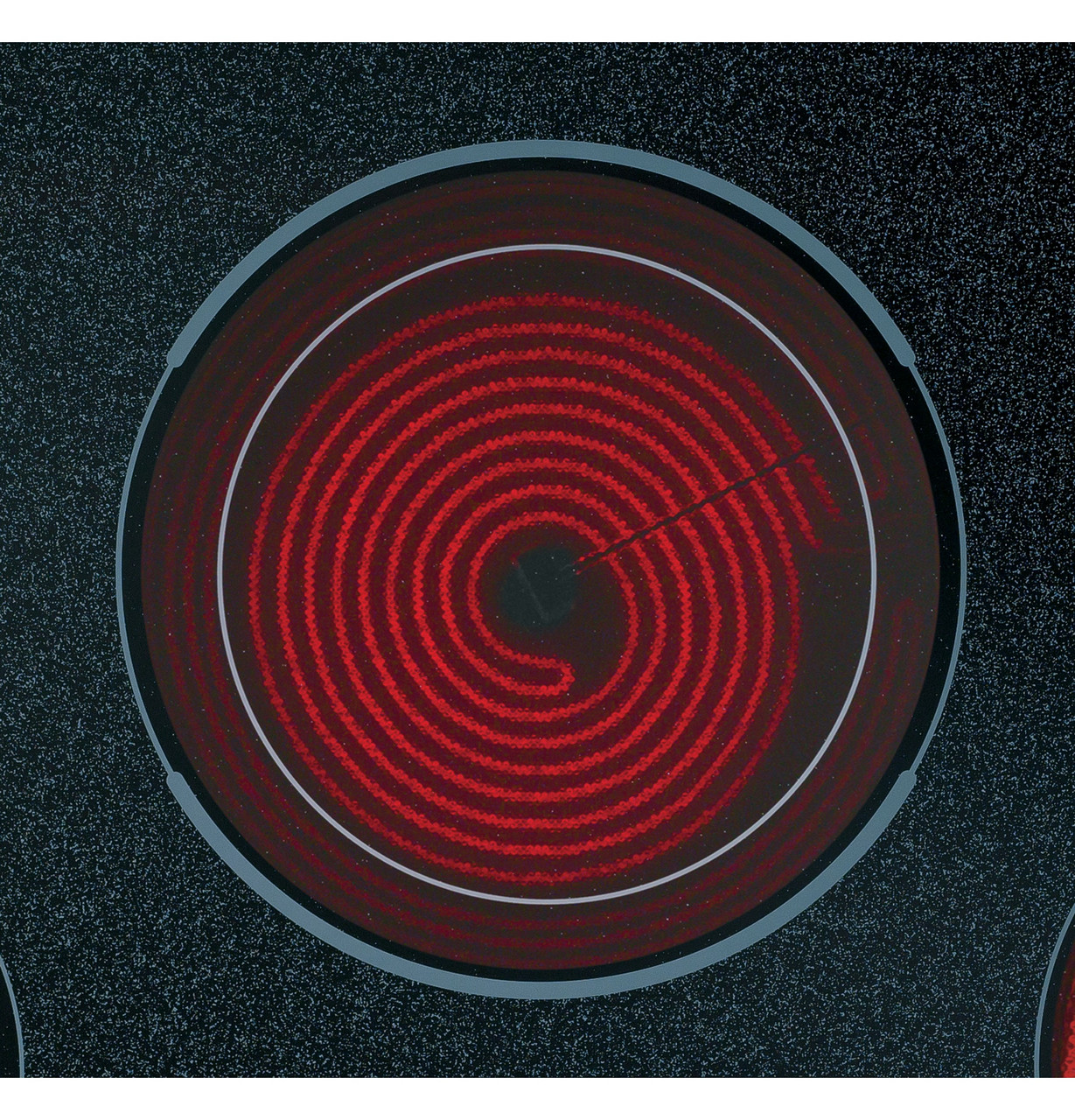

  • Ribbon heating elements

    Consistent heat and glass surface provide fast, even heating

  • 8" Power Boil element

    2,500 Watts produce quick, vigorous heat

Dimensions: 3 1/4 H x 36 W x 20 7/8 D

ACCESSORIES

Optional Flush Mount Kit JXFLMTW (True White)

APPEARANCE

Color Appearance White
Frameless Yes

FEATURES

5"/8" Dual Heating Element 1 Ribbon (2,400W)
6" Heating Element(s) 1 Ribbon (1,200W)
8" Heating Element (s) 1 Ribbon (Power Boil - 2,500W)
9"/12" Dual Heating Element 1 Ribbon (3,000W)
Control Location Front Center
Control Type Knob (Infinite switch)
Cooktop Burner Type 5 Ribbon
Smoothtop
Cooktop Surface Patterned White on Black Glass Ceramic
Dishwasher Safe Knobs Yes
Indicator Lights 5 Hot Surface
Surface Element "ON"
Warming Zone 1-6" Ribbon (120W)

POWER / RATINGS

Amp Rating at 208V 30
Amp Rating at 240V 36.3
KW Rating at 208V 5.9
KW Rating at 240V 8.7

WARRANTY

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Limited 5-year glass cooktop/radiant surface units
Warranty Notes See written warranty for full details

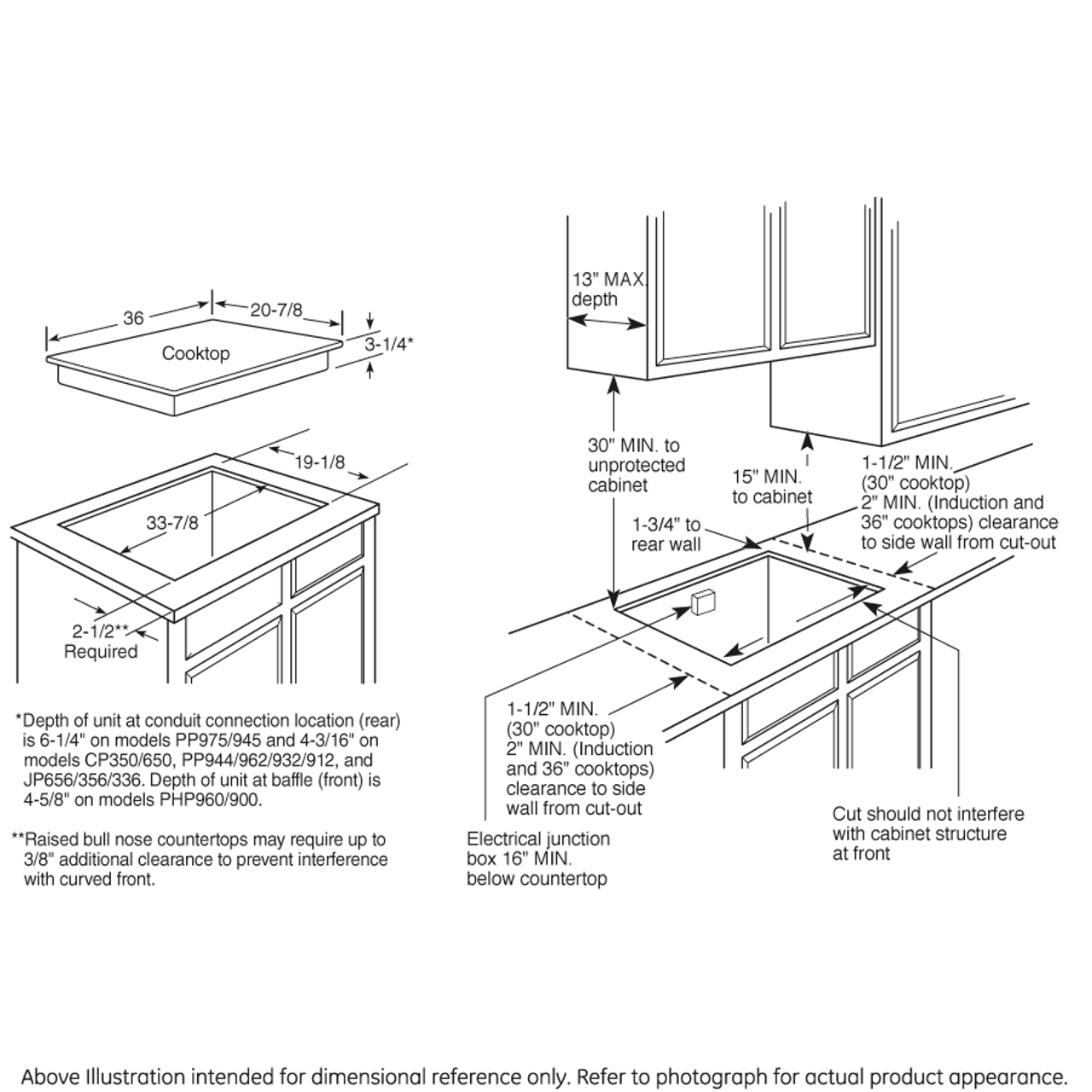

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 44 lb
Cabinet Width 36 in
Cooktop Size 36 in
Cutout Depth (in) 19-1/8
Cutout Width (in) 33-7/8
Net Weight 39 lb
Overall Depth 20 7/8 in
Overall Height 3 1/4 in
Overall Height at Conduit (rear) 6 1/4 in
Overall Width 36 in
See All Specifications
