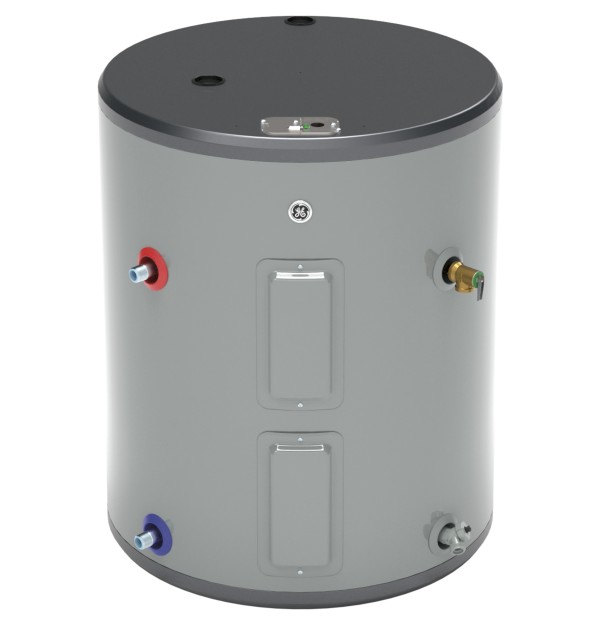

GE® 36 Gallon Side Port Lowboy Electric Water Heater

Model #: GE40L08BSM
  • Lowboy
  • Household Size
  • Quick Recovery
  • Dimensions: 32 3/4 H x 27 W x 27 D
Learn More >

Color: Gray

  • Gray
Dimensions: 32 3/4 H x 27 W x 27 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
BUY FROM A LOCAL PRO
Loading Store Finder

Frequently Bought Together:

Complete Your Laundry Pair:

Current Item
Model#: GE40L08BSM
Clearance $579.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

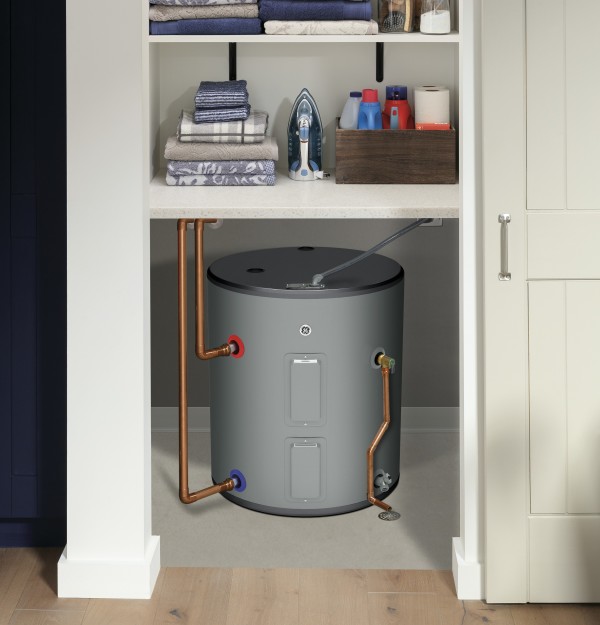

  • Lowboy

    Lowboy

    Make the most of tight spaces with a water heater that fits where height is a concern

  • Household Size

    Household Size

    Provide hot water for the whole family of 2 to 4 persons

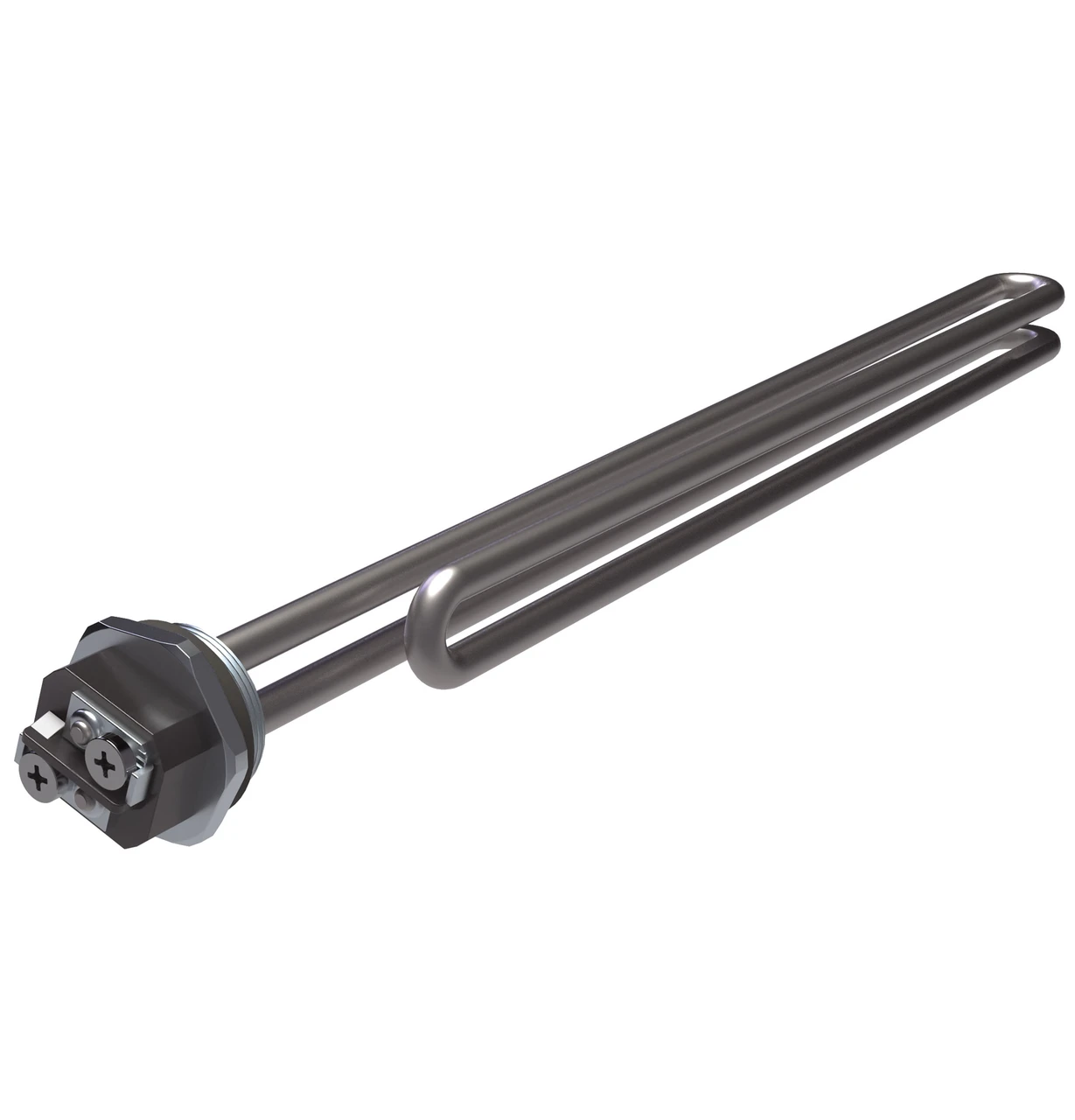

  • Quick Recovery

    Two 5500W heating elements quickly increase water temperature for hot water when you need it

    Play Video

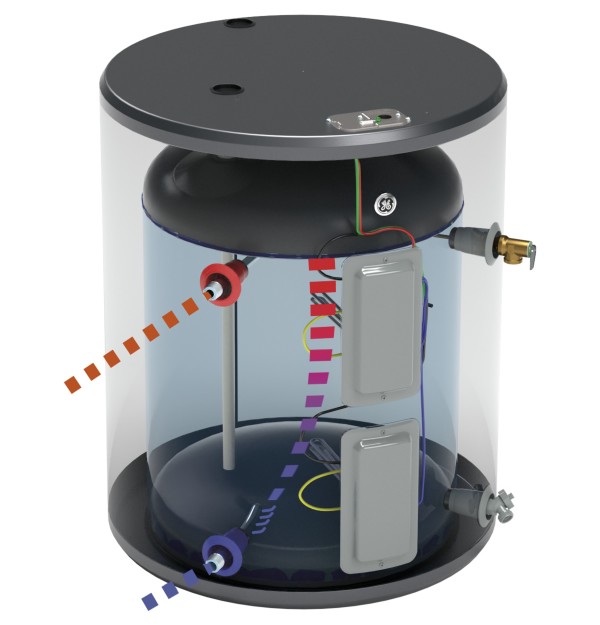

  • Inlet Tube

    Inlet Tube

    Replenishes water from the bottom of the tank to maximize hot water delivery

  • Easy Set Up

    Easy Set Up

    Replace your old water heater quickly and easily using standard water and electrical connections

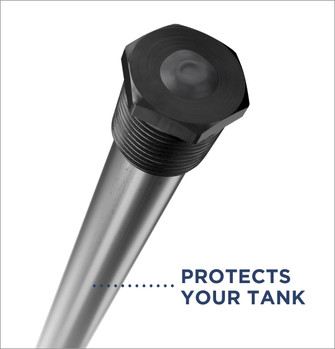

  • Anode Rod

    Anode Rod

    Durable design offers long-lasting protection against corrosion

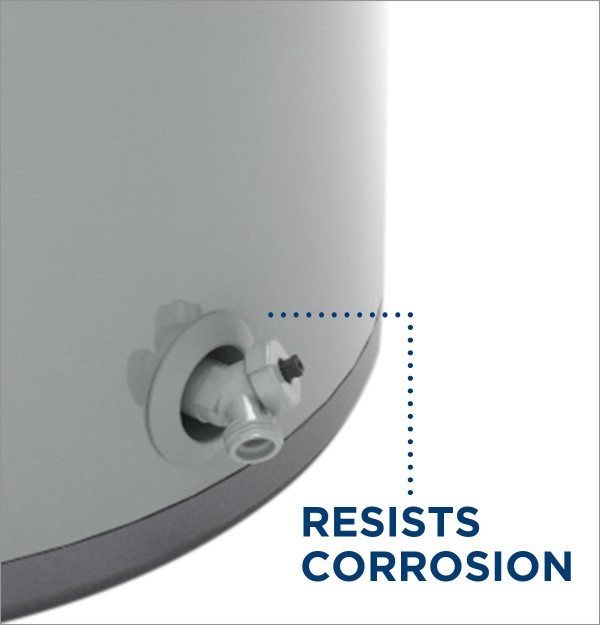

  • Drain Valve

    Drain Valve

    Rust-proof construction can be counted on to provide long-lasting service

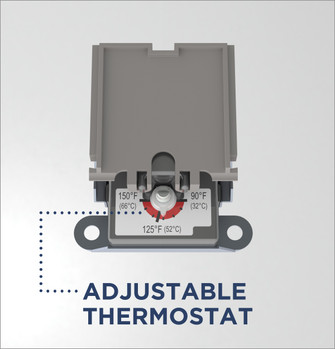

  • Adjustable Thermostat

    Adjustable Thermostat

    Change temperature to your desired setting

    See All Features

    Dimensions: 32 3/4 H x 27 W x 27 D

    APPEARANCE

    Color Appearance Gray

    CAPACITY

    Unit Capacity 40 Gallons

    FEATURES

    Configuration Lowboy
    Control Type Thermostat
    Drain Valve Type Plastic
    Family Size 2-4 People
    Foam Insulation Yes
    Fuel Type Electric
    GPH Recovery @ 90 Degrees F 25.1
    Height Description Low Boy with Side Port
    Installation Location Indoor
    Insulation Thickness 2.75 in
    Mobile Home Compatible No
    Operating Modes Standard Electric
    Point of Use No
    Product Type Electric Thermostat
    Rated Capacity 36.0 gal
    Rated Storage Capacity 36
    Temp & Pressure Relief Valve Yes
    Temperature Setting 90-150° F Range
    Temperature Setting Factory Default 120° F
    Water Connection Location Side

    POWER / RATINGS

    Electrical Circuit Required 208V/240V 60 Hz Dedicated 30 Amp Min.
    Electrical Connection Direct-Wire
    First Hour Rate (FHR) 63 Gallons
    Heating - Electric - Heater Watts 5500/5500
    Integrated Energy Factor 0.92
    Operating Water Pressure 20-125 PSI
    Voltage (MAX) 240 V
    Volts/Hertz 240V; 60Hz

    WARRANTY

    Labor Warranty 1-year limited
    Parts Warranty 8-year limited
    Warranty Notes See written warranty for full details

    WEIGHTS & DIMENSIONS

    Approximate Shipping Weight 145 lb
    Connection Sizes - Hot Water Outlet (MNPT) 3/4"
    Connection Sizes - Water Inlet (MNPT) 3/4"
    Net Weight 135 lb
    Overall Depth 27 in
    Overall Height 32 3/4 in
    Overall Width 27 in
    Product Diameter 27 in
    Product Height (to top of unit) 32 3/4 in
    Product Height (to top of water inlet/outlet connections) 3 1/2 : 22 1/2 in
