GE® 40 Gallon Tall 4500W Electric Water Heater

Model #: GE40T08DAT
  • Real Capacity
  • Maximum Performance
  • Household Size
  • Dimensions: 65 1/2 H x 20 W x 20 D
Learn More >

Color: Gray

  • Gray
Dimensions: 65 1/2 H x 20 W x 20 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
BUY FROM A LOCAL PRO
Loading Store Finder

Frequently Bought Together:

Complete Your Laundry Pair:

Current Item
Model#: GE40T08DAT
Clearance $559.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes
  • Real Capacity

    Real Capacity

    Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)

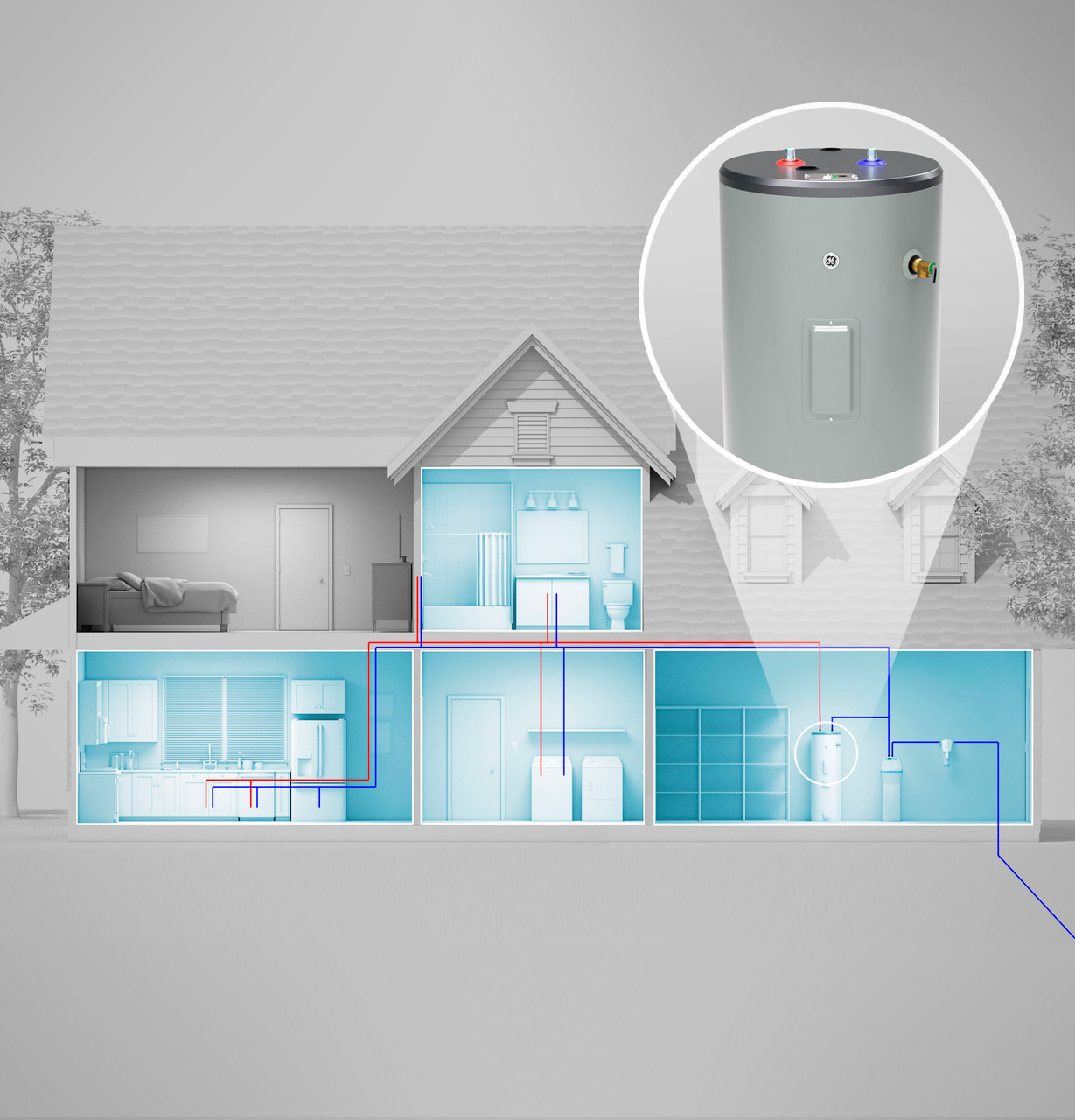

  • Household Size

    Household Size

    Provide hot water for the whole family of 2 to 4 persons

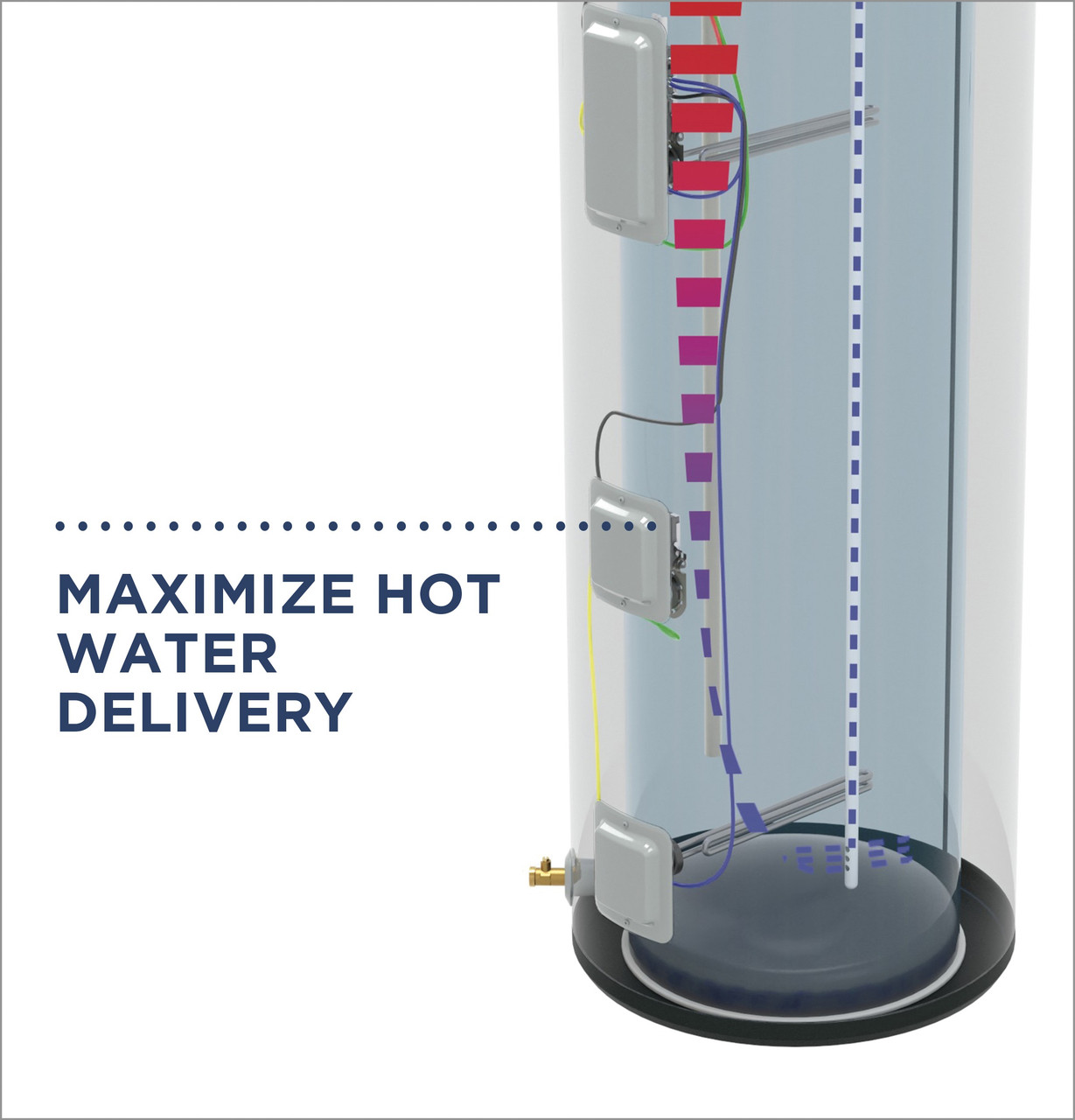

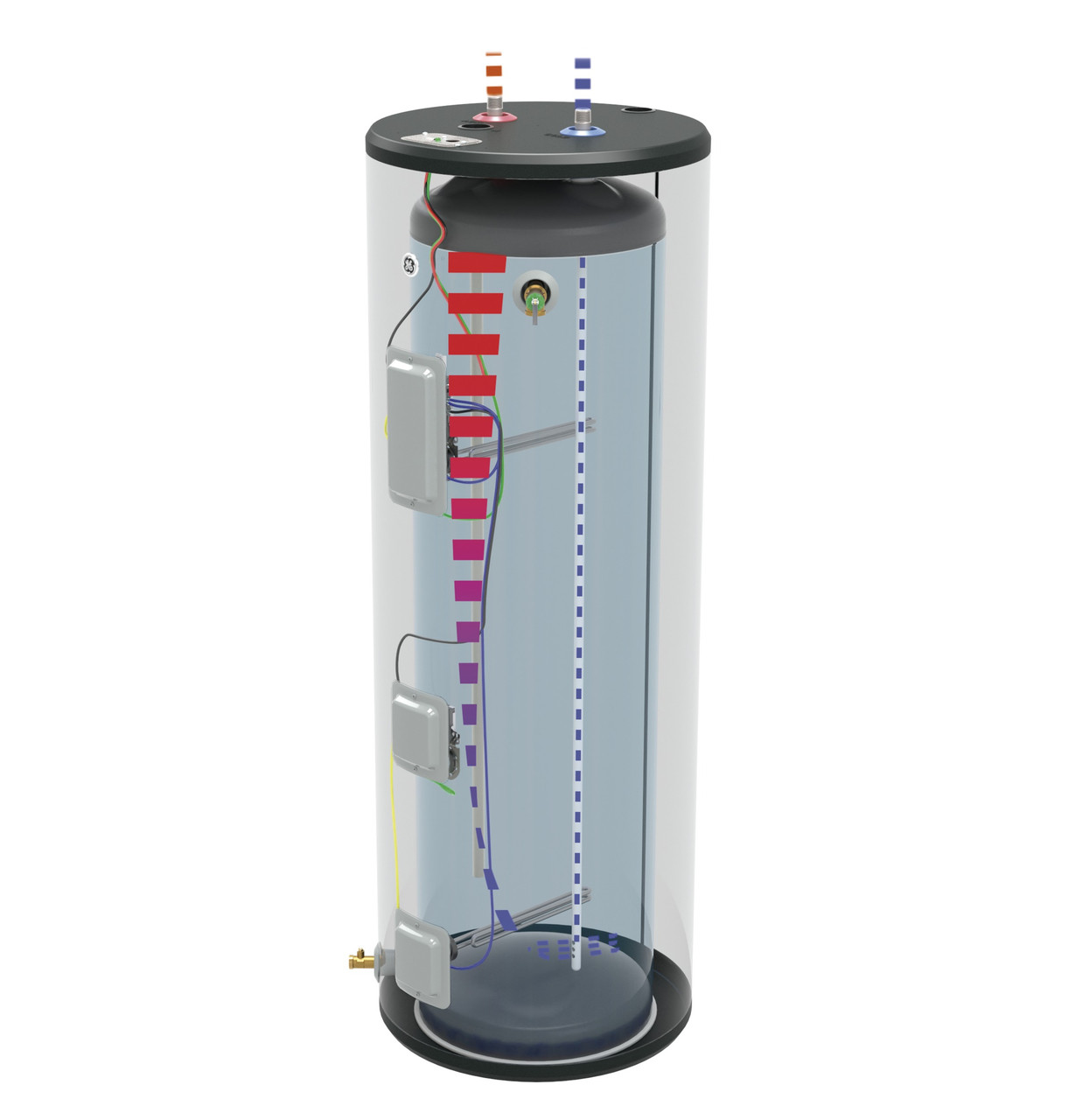

  • Inlet Tube

    Inlet Tube

    Replenishes water from the bottom of the tank to maximize hot water delivery

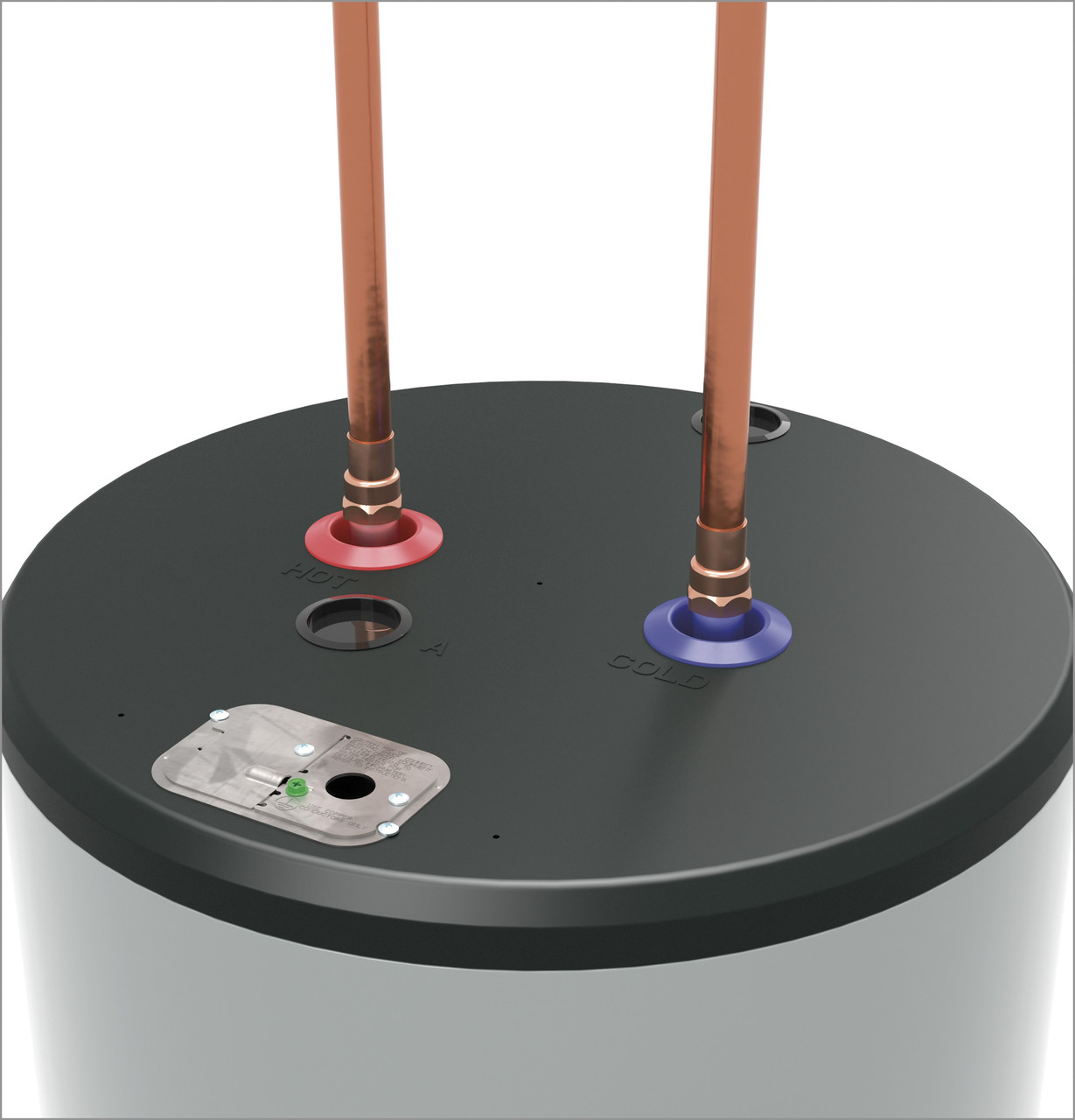

  • Easy Set Up

    Easy Set Up

    Replace your old water heater quickly and easily using standard water and electrical connections

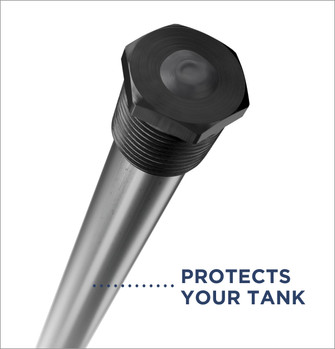

  • Anode Rod

    Anode Rod

    Durable design offers long-lasting protection against corrosion

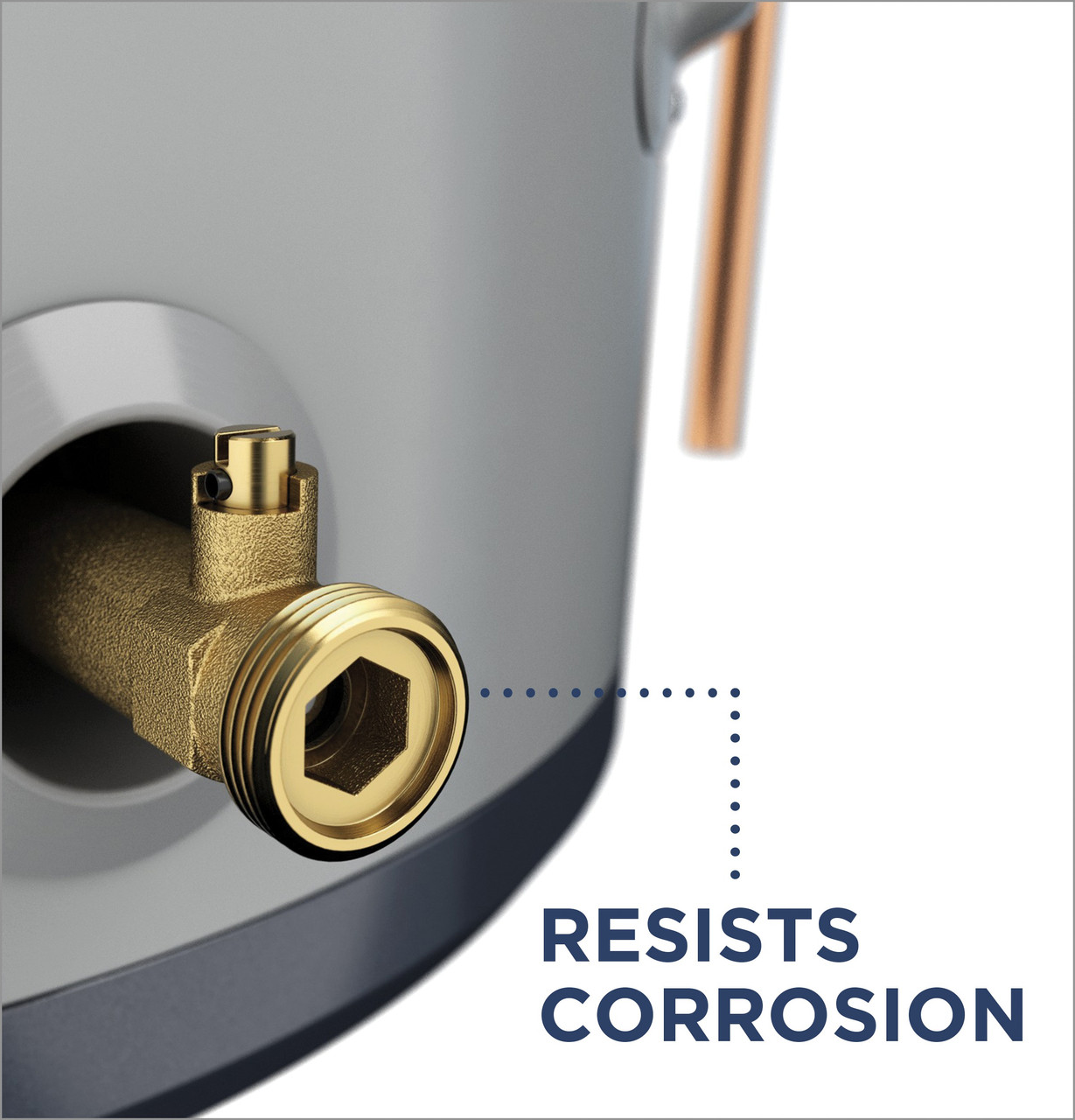

  • Drain Valve

    Drain Valve

    Rust-proof construction can be counted on to provide long-lasting service

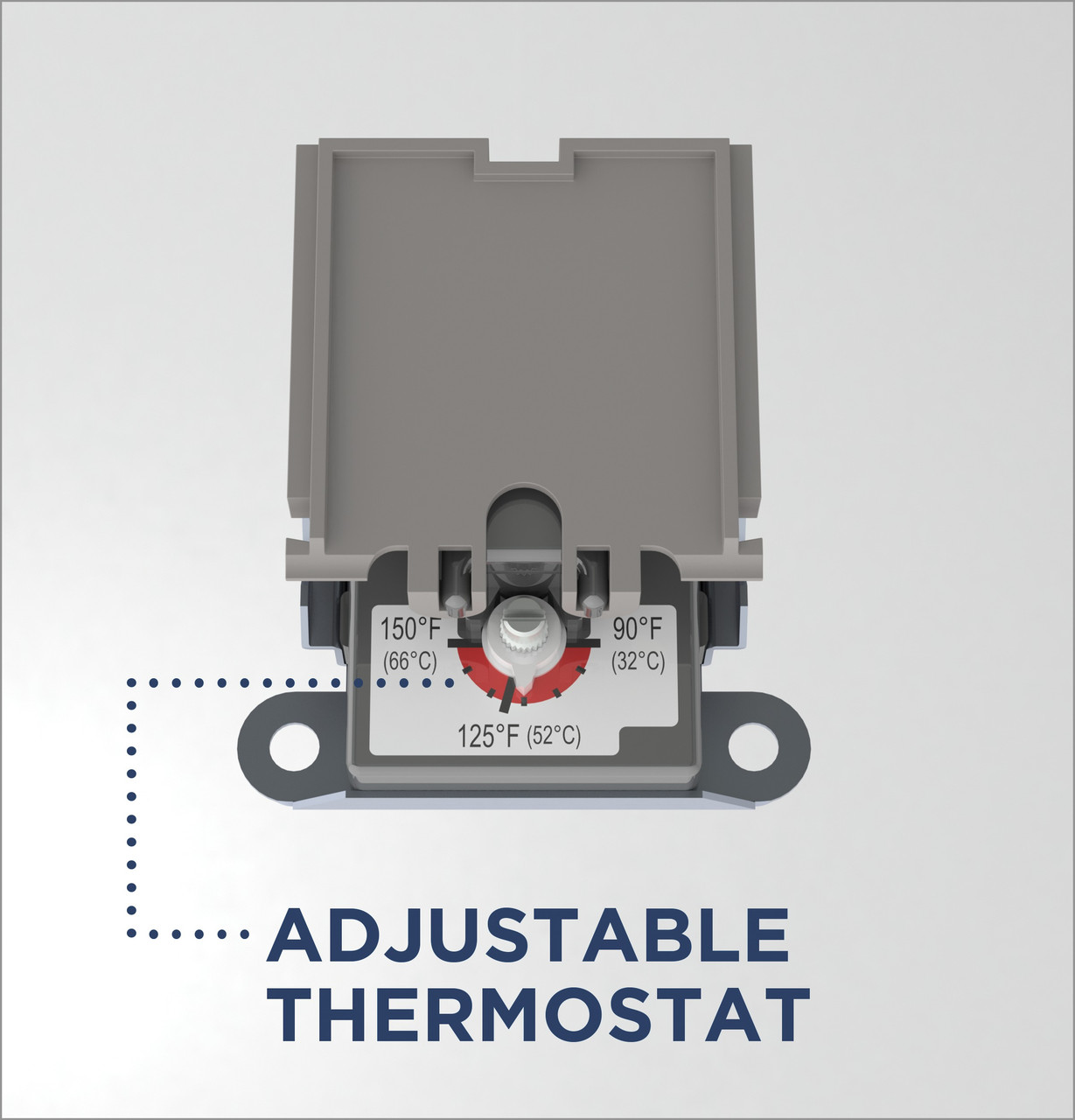

  • Adjustable Thermostat

    Adjustable Thermostat

    Change temperature to your desired setting

  • Maximum Performance

    Live comfortably with this best in class unit that delivers 57 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

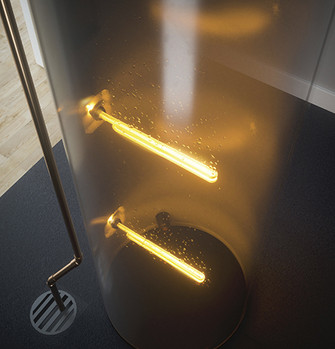

  • 4500W Heating Elements

    Two 4500W heating elements that require 25 Amp to operate will increase water temperature for hot water when you need it

See All Features

Dimensions: 65 1/2 H x 20 W x 20 D

APPEARANCE

Color Appearance Gray

CAPACITY

Unit Capacity 40 Gallons

FEATURES

Configuration Tall
Control Type Thermostat
Drain Valve Type Plastic
Family Size 2-4 People
Foam Insulation Yes
Fuel Type Electric
GPH Recovery @ 90 Degrees F 25.1
Heating Element Copper
Height Description Tall
Installation Location Indoor
Insulation Thickness 2.75 in
Mobile Home Compatible No
Operating Modes Standard Electric
Point of Use No
Product Type Electric 4500W
Rated Capacity 40
Rated Storage Capacity 40
Temp & Pressure Relief Valve Yes
Temperature Setting 90-150° F Range
Temperature Setting Factory Default 120° F
Water Connection Location Top

POWER / RATINGS

Electrical Circuit Required 208V/240V 60 Hz Dedicated 30 Amp Min.
Electrical Connection Direct-Wire
Energy Consumption (kWh/year) 3531
First Hour Rate (FHR) 57 Gallons
Heating - Electric - Heater Watts 4500/4500
Integrated Energy Factor 0.92
Operating Water Pressure 20-125 PSI
Voltage (MAX) 240 V
Volts/Hertz 240V; 60Hz

WARRANTY

Labor Warranty 1-year limited
Parts Warranty 8-year limited
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 139 lb
Connection Sizes - Hot Water Outlet (MNPT) 3/4"
Connection Sizes - Water Inlet (MNPT) 3/4"
Net Weight 127 lb
Overall Depth 20 in
Overall Height 65 1/2 in
Overall Width 20 in
Product Diameter 20 in
Product Height (to top of unit) 64 in
Product Height (to top of water inlet/outlet connections) 65 1/2 in
See All Specifications
