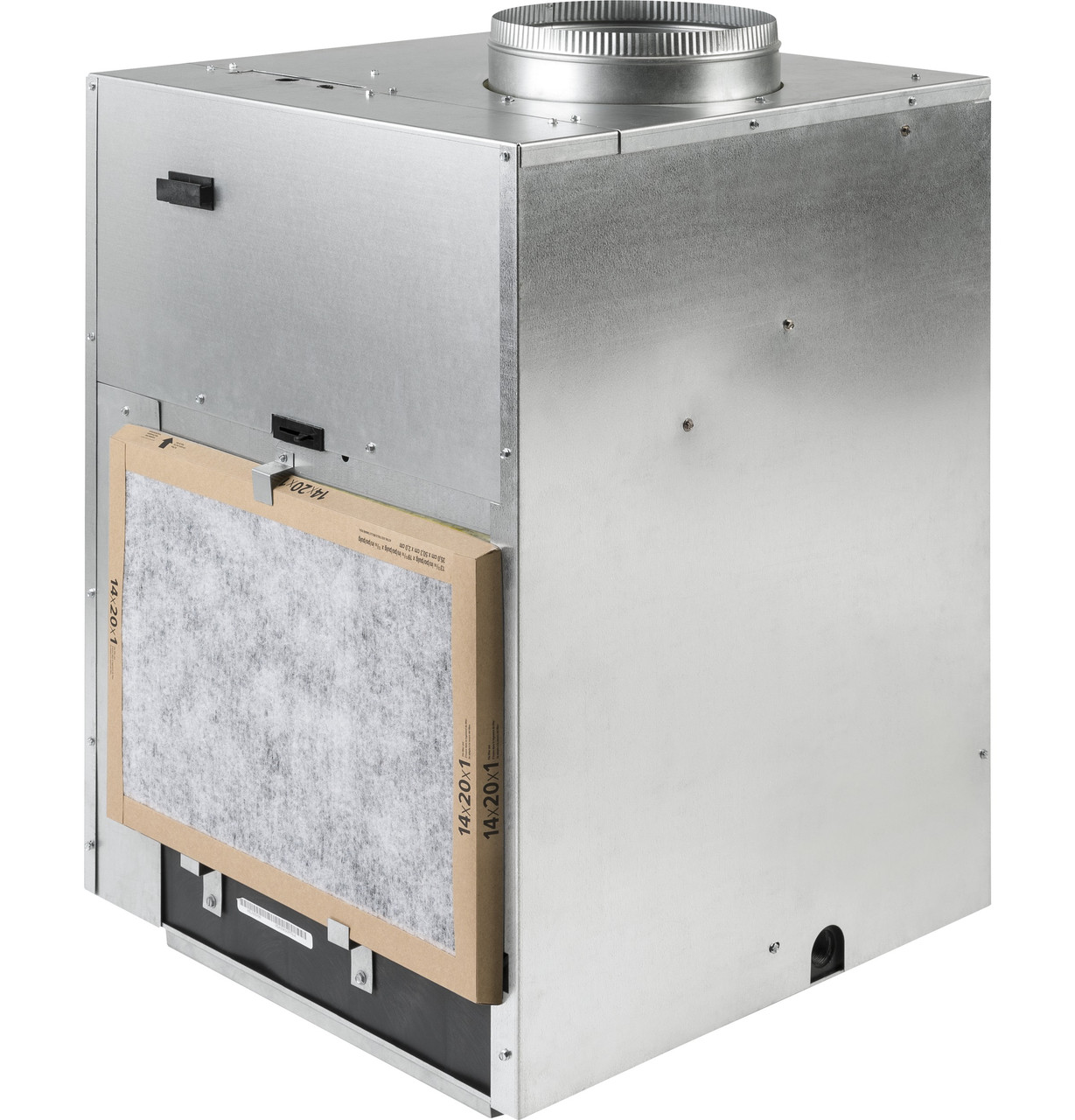

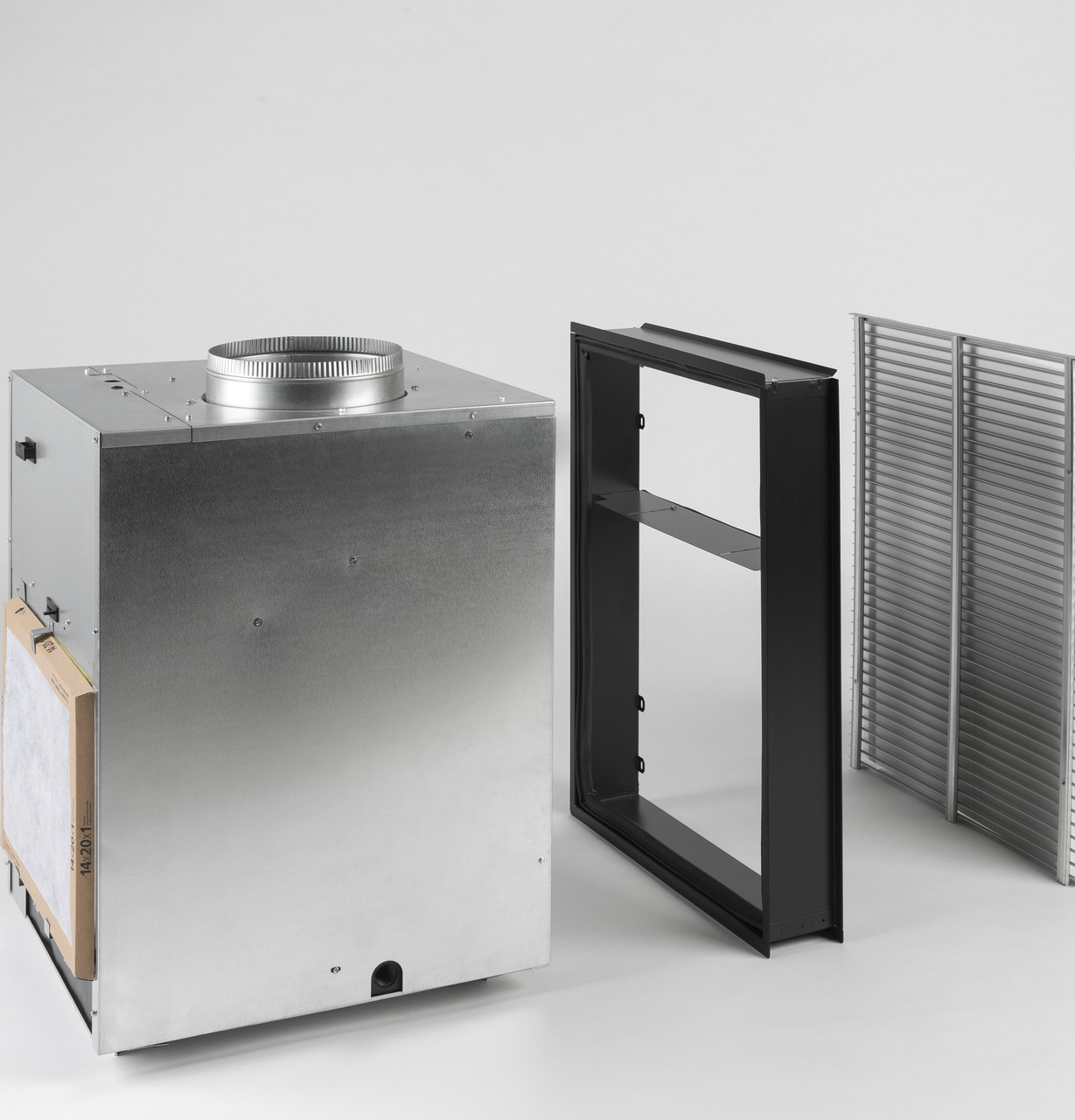

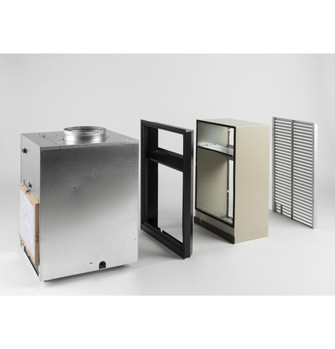

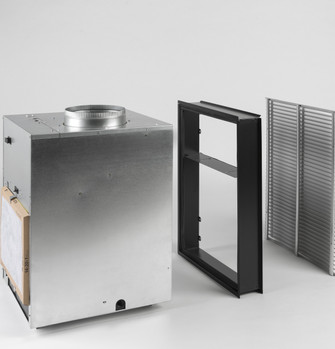

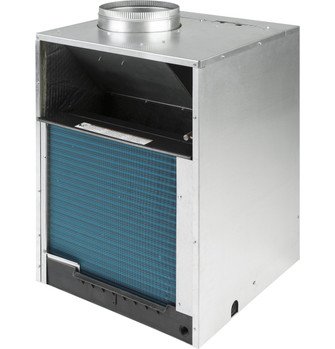

GE Zoneline® Cooling and Electric Heat Single Package Vertical Air Conditioner 20 Amp 230/208 Volt

Model #: AZ90E09D3C
previous image
next image
1/5
  • Cooling capacity
  • Vertical space-saving design
  • Reliable & quiet
  • Dimensions: 32 1/4 H x 23 1/8 W x 23 1/8 D
Learn More >
Dimensions: 32 1/4 H x 23 1/8 W x 23 1/8 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Use & Care Manual View More

Complete Your Laundry Pair:

Current Item
GE Zoneline® Cooling and Electric Heat Single Package Vertical Air Conditioner 20 Amp 230/208 Volt
Model#: AZ90E09D3C
Clearance $1,949.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

    • Cooling capacity

      9,300/9,000 BTU

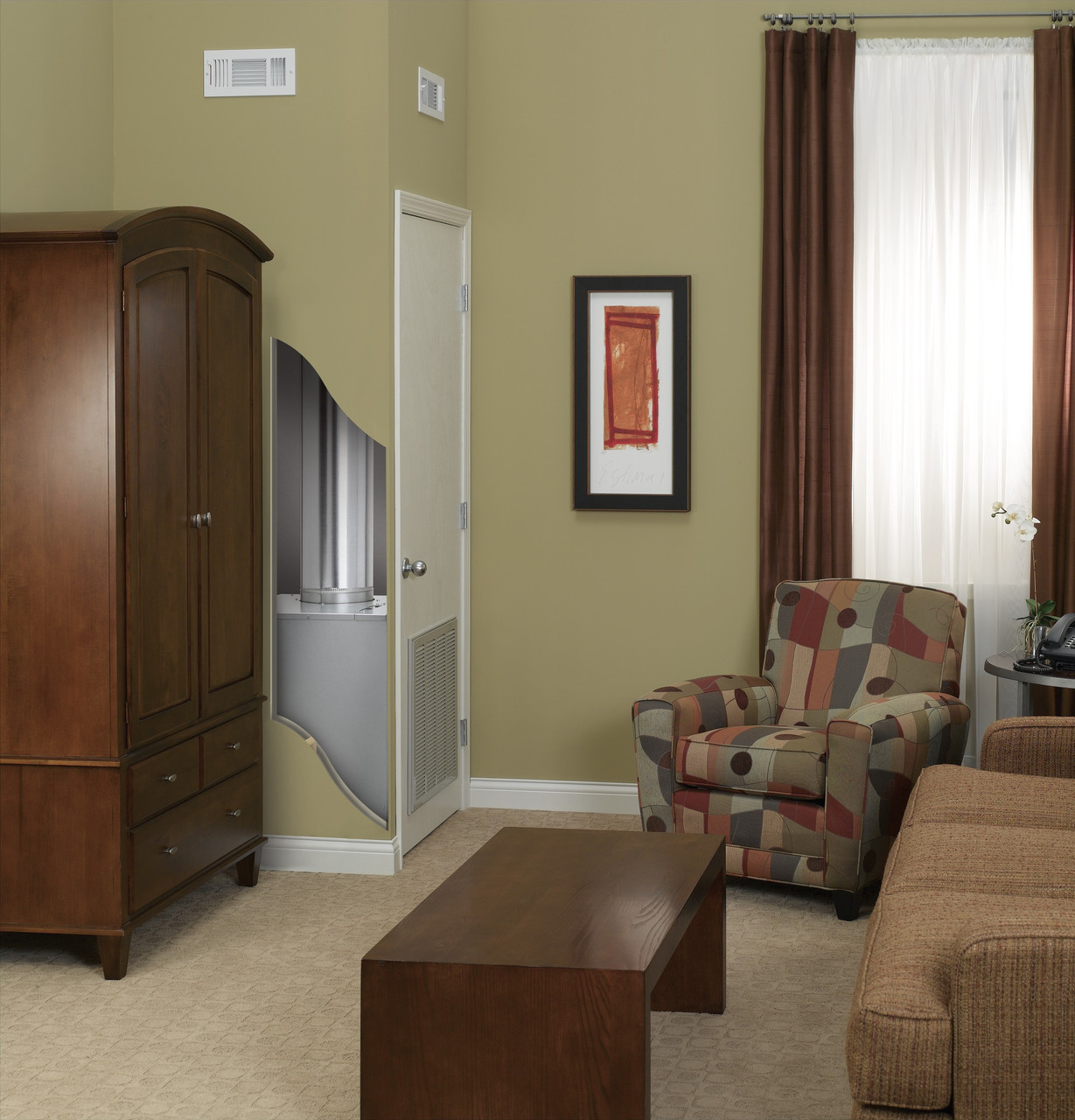

    • Vertical space-saving design

      Optimizes usable floor space

    • Reliable & quiet

      Every component is engineered to provide exceptional performance

    • Corrosion treatment on outside coils

    Claims & Certifications

    Specs & Details

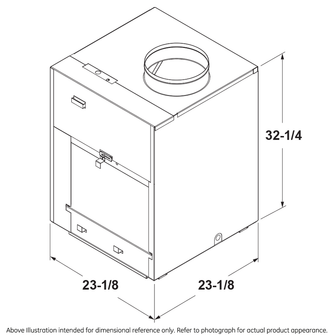

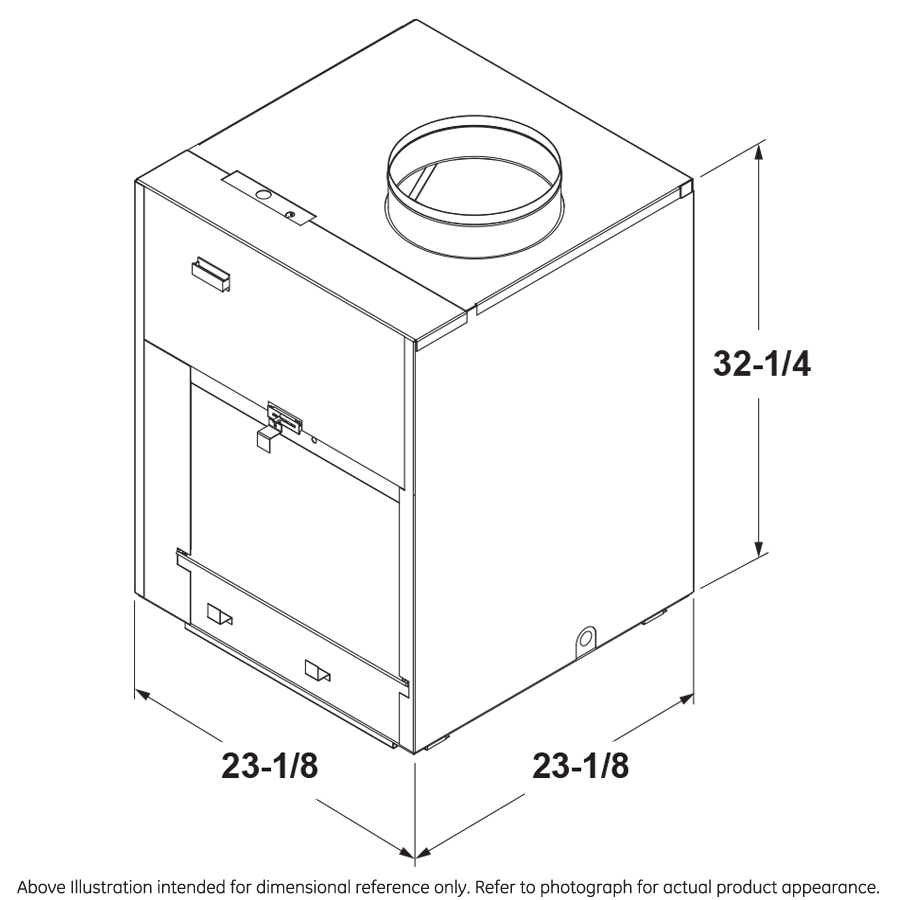

    Dimensions: 32 1/4 H x 23 1/8 W x 23 1/8 D

    CAPACITY

    CFM Indoor Fan High 450
    CFM Indoor Fan Low 405
    Cooling BTUH (MAX) 9,200 Btu
    Cooling BTUH (MIN) 9,000 Btu
    Cooling EER (BTUH / Watt) 10.5/10.5
    Dehumidification (pts./hr.) 2.0
    Vent CFM (high fan at zero ESP) 60

    FEATURES

    Central Desk Control Compatibility Yes
    Corrosion Treated Yes
    Fan Speed Selections 3 Cooling
    Heating System Electric Resistance

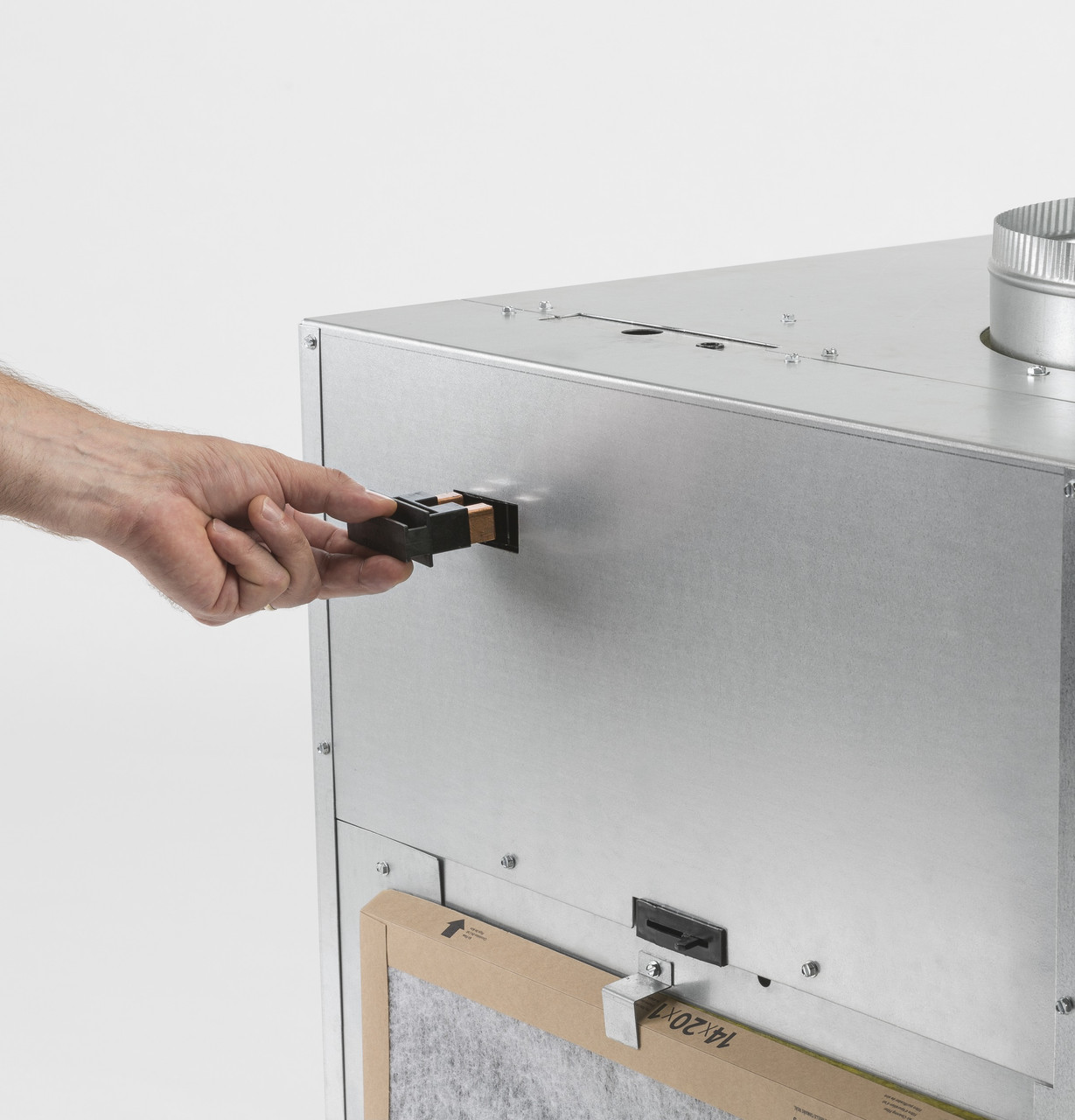

    Manual Vent Control Yes
    Outdoor Vent / Exhaust Yes
    Product Type Vertical Air Conditioners
    Refrigerant Type R410A
    Remote Thermostat RAK164
    Rotary Compressor Yes
    Sensible Heat Ratio 76%

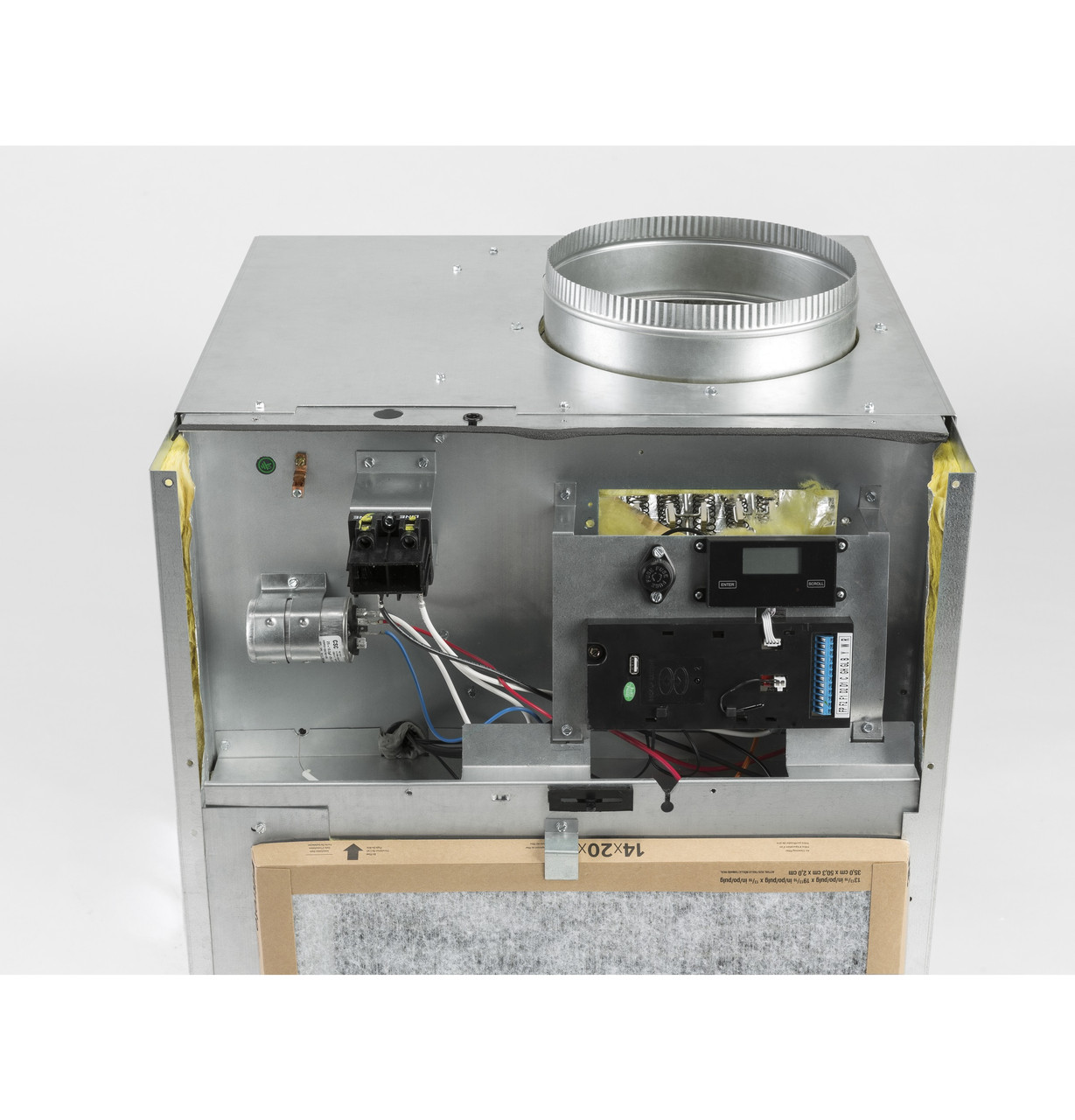

    Zoneline Features Electronic Error Diagnostics
    Solid State Thermostat
    Automatic Indoor Frost Control
    Freeze Sentinel
    Auto Power Recovery
    Remote Control Disconnect Kit
    Weather Protected Electrical Components

    POWER / RATINGS

    Cooling - Amperes 4.2/4.4
    Cooling - Amperes; F.L. - Cooling 4.2/4.4
    Cooling - Watts 880/860
    Heating - Electric - Heater Amps 14.8/13.4
    Heating - Electric - Heater Watts 3400/2780
    Voltage (MAX) 230 V
    Voltage (MIN) 208 V

    WARRANTY

    Labor Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Parts Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Warranty Notes See written warranty for full details

    WEIGHTS & DIMENSIONS

    Approximate Shipping Weight 125 lb
    Net Weight 114 lb
    Overall Depth 23 1/8 in
    Overall Height 32 1/4 in
    Overall Width 23 1/8 in
    See All Specifications
