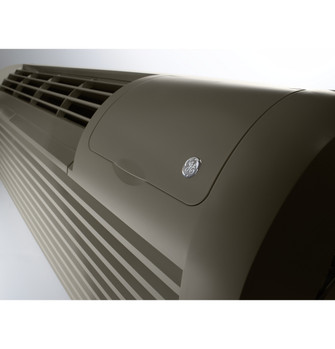

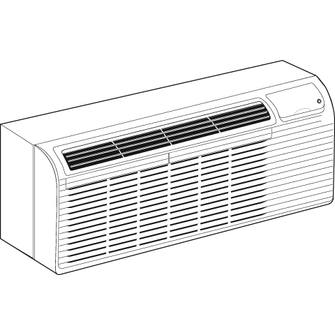

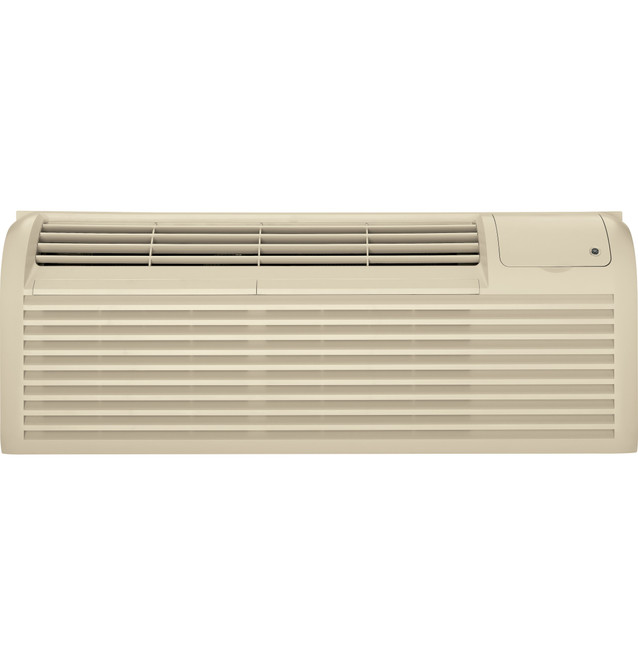

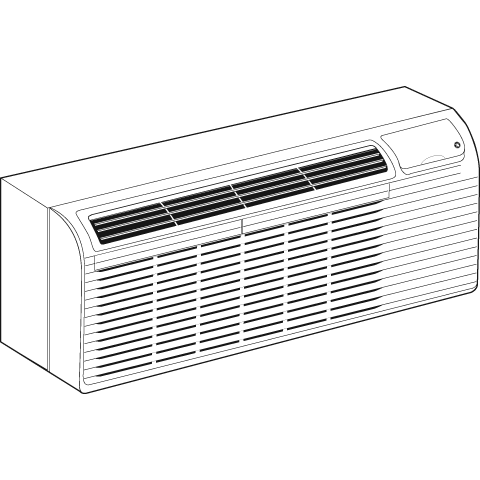

GE Zoneline® Deluxe Series Cooling and Electric Heat Unit with Corrosion Protection, 230/208 Volt

Model #: AZ41E15DAC
previous image
next image
1/5
  • Cooling capacity
  • Energy efficiency
  • Dehumidification
  • Dimensions: 16 H x 42 W x 20 7/8 D
Learn More >

Color: Warm Gray Beige

  • Warm Gray Beige
Dimensions: 16 H x 42 W x 20 7/8 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Use & Care Manual View More

Complete Your Laundry Pair:

Current Item
GE Zoneline® Deluxe Series Cooling and Electric Heat Unit with Corrosion Protection, 230/208 Volt
Model#: AZ41E15DAC
Clearance $1,170.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

  • Energy efficiency

    Energy efficiency

    10.3/10.3 EER

    Play Video
  • Quiet operation

    Quiet operation

    Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

    Play Video
  • Electronic touch controls with LED display

    Electronic touch controls with LED display

    undefined

    Play Video

  • Cooling capacity

    14,300/14,000 BTU

  • Dehumidification

    4.6 pints/hour

  • Indoor fan CFM (high/low)

    409/323

  • Fresh air vent CFM (fully open high fan)

    42

  • Corrosion resistant

    Extends life of the unit in sea coast areas/corrosive environments

  • Heat & Freeze Sentinels

    Keeps the room from overheating or freezing

  • Electronic temperature limiting

    Prevents expensive over-cooling or over-heating of the room

  • R-410A refrigerant

See All Features

Claims & Certifications

Specs & Details

Dimensions: 16 H x 42 W x 20 7/8 D

APPEARANCE

Color Appearance Warm Gray Beige

CAPACITY

CFM Indoor Fan High 409
CFM Indoor Fan Low 324
Cooling BTUH (MAX) 14,300 Btu
Cooling BTUH (MIN) 14,000 Btu
Cooling EER (BTUH / Watt) 10.3/10.3
Dehumidification (pts./hr.) 4.6
Vent CFM (high fan at zero ESP) 75/45

FEATURES

Chassis Type Slide-In
Control Type Standard Microcomputer
Tactile touch pad with LED Display
Corrosion Treated Yes
Discharge Grille 2-position
Electronic Micro Computer Control Yes
Fan Cycle Switch Yes
Fan Motor 2
Fan Speed Control Yes
Fan Speed Selections Hi/Low Cooling
Hi/Low Heating
Hi/Low Fan Only
Filter Type Rigid Frame
Slide-Out
Heat - Cool Yes
Louver Style Reversible
Manual Vent Control Hidden
Power Factor 90/92
Rotary Compressor Yes
Sensible Heat Ratio 70%
Temperature Limiting Electronic 7-Step
Temperature Range 60 - 85 F
Vent Control 3-position
Venting Features Concealed Manual Vent Control
Vent Air Filter
Outdoor Vent Control - 3 Positions
Zoneline Features "Smart Fan" Fan Cycle Control
Random Twist/Length Segment Tangential Blower
Weather Protected Electrical Components
"Sleep" Mode
Power Cord (LDCI) included
Heat Sentinel (85F)
Freeze Sentinel
Automatic Indoor Frost Control
Universal Heaters
Auto Power Recovery
Remote Thermostat Compatibility
Central Desk Control Compatibility
Proportional - Integral ID Airflow

POWER / RATINGS

Cooling - Amperes 6.7/7.2
Cooling - Amperes; F.L. - Cooling 6.7/7.2
Cooling - Amperes; L.R. 31.0
Cooling - Watts 1370/1350
Voltage (MAX) 230 V
Voltage (MIN) 208 V

WARRANTY

Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Warranty Notes See written warranty for full details

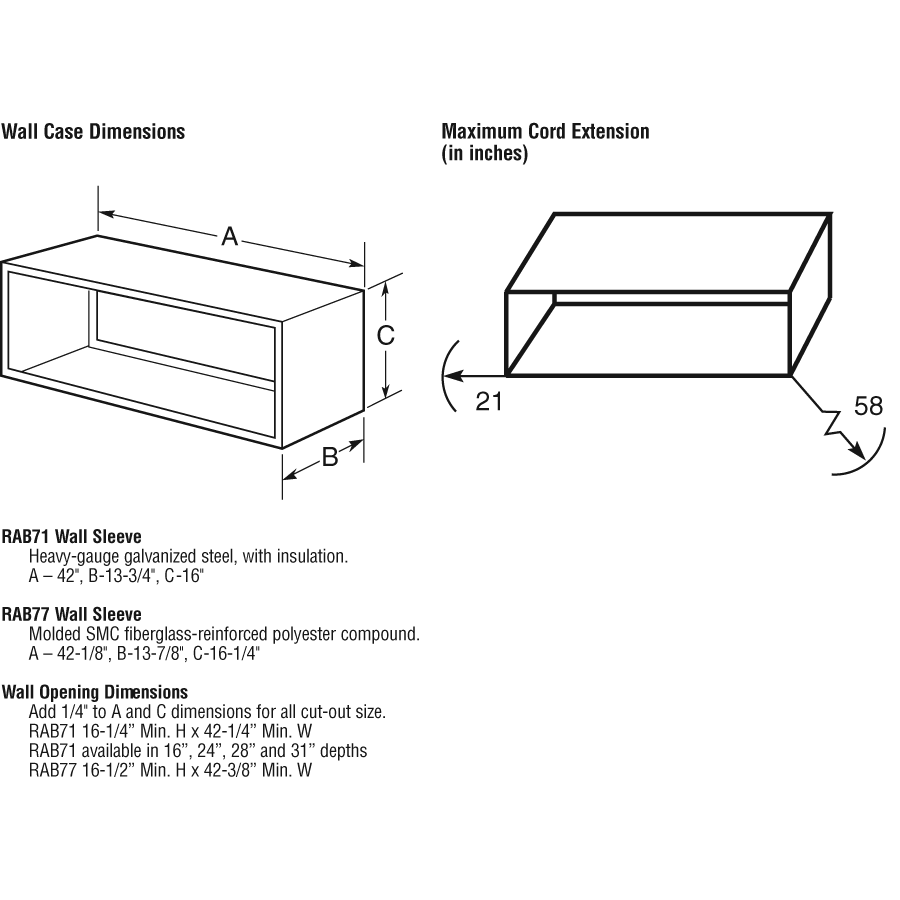

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 113.3 lb
Net Weight 100.3 lb
Overall Depth 20 7/8 in
Overall Depth (Excludes Sleeve) 19 13/16 in
Overall Height 16 in
Overall Height (Excludes Sleeve) 15 1/2 in
Overall Width 42 in
Overall Width (Excludes Sleeve) 40 in
See All Specifications
