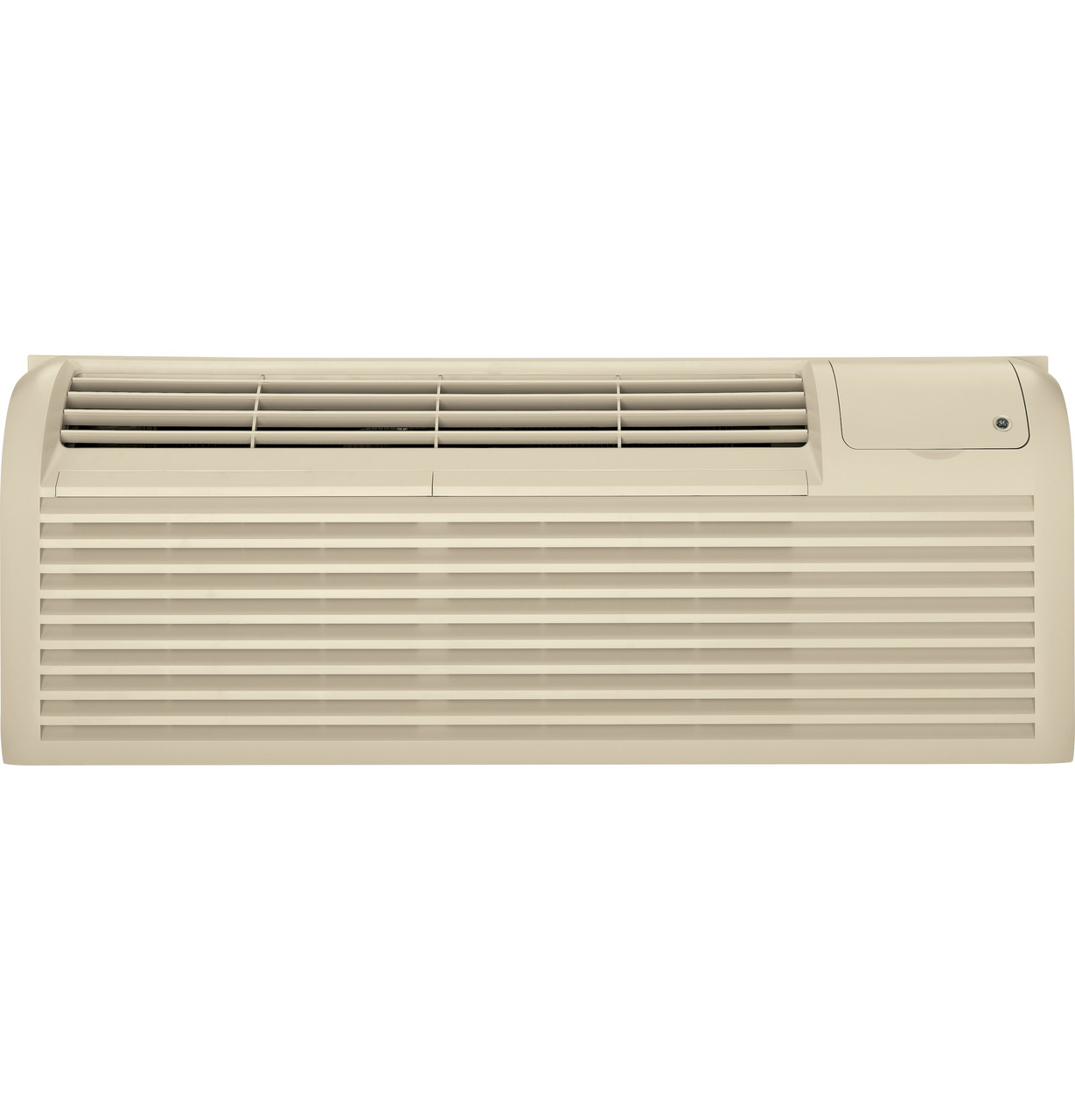

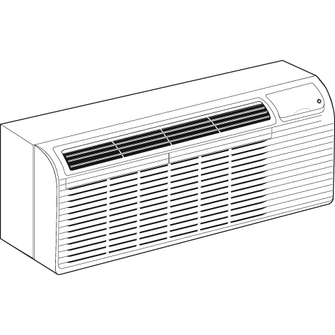

GE Zoneline® Deluxe Series Heat Pump Unit

Model #: AZ38H07DAC
previous image
next image
1/5
  • 7,100 / 6,900 BTU (cooling)
  • 12.7 / 12.7 E.E.R.
  • 1.7 dehumidification (pints/hr)
  • Dimensions: 16 H x 42 W x 13 3/4 D
Learn More >

Color: Warm Gray Beige

  • Warm Gray Beige
Dimensions: 16 H x 42 W x 13 3/4 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Use & Care Manual View More

Complete Your Laundry Pair:

Current Item
GE Zoneline® Deluxe Series Heat Pump Unit
Model#: AZ38H07DAC
Clearance $939.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

    • 7,100 / 6,900 BTU (cooling)

    • 12.7 / 12.7 E.E.R.

    • 1.7 dehumidification (pints/hr)

    • 6,400 / 6,200 BTU (reverse cycle heat)

    • 250 / 215 CFM indoor fan (high/low)

    • 50 / 40 vent CFM

    • Standard microcomputer, rotary knobs

    • 29 Sound Transmission Class (STC)

    • Reverse cycle heating

    • Heat Sentinel

    • Electronic 7-step temperature limiting to prevent overcooling or overheating of room

    • Corrosion-treated chassis

      Extends life of the unit in SeaCoast areas

    See All Features

    Claims & Certifications

    Specs & Details

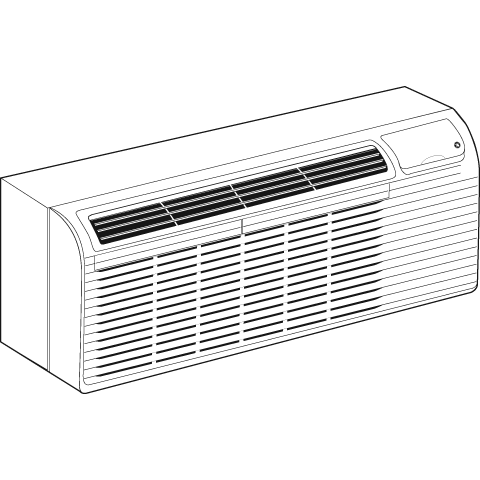

    Dimensions: 16 H x 42 W x 13 3/4 D

    ACCESSORIES

    Duct Adaptor RAK6052
    Duct Extension RAK601
    Exterior Architectural Louvers RAG61(Beige); RAG62(Maple); RAG63(Bittersweet)
    Extruded Aluminum Grille RAG67

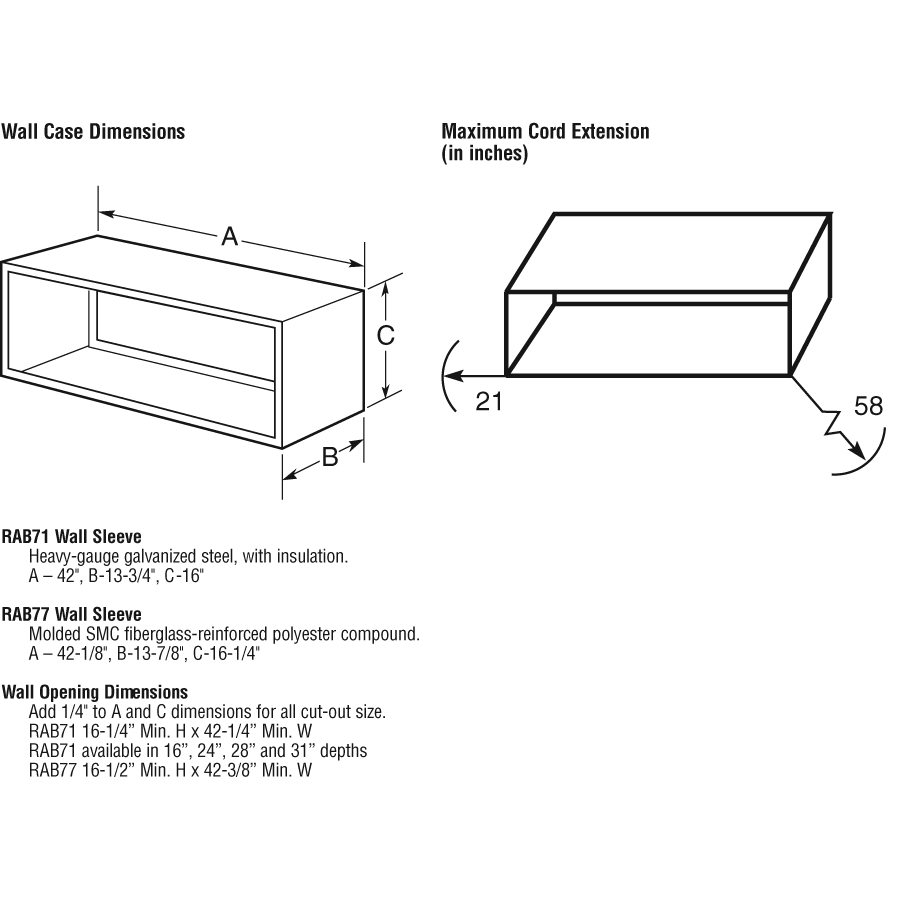

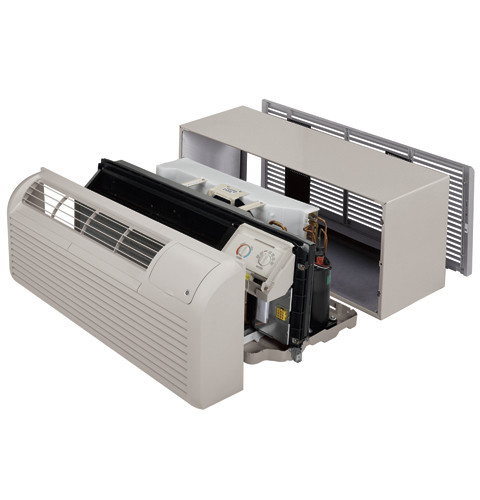

    Insulated Wall Case RAB71A
    SMC Wall Case RAB77A4

    APPEARANCE

    Color Appearance Warm Gray Beige

    CAPACITY

    CFM Indoor Fan High 250
    CFM Indoor Fan Low 215
    Cooling BTUH (MAX) 7,100 Btu
    Cooling BTUH (MIN) 6,900 Btu
    Cooling EER (BTUH / Watt) 12.7/12.7
    Dehumidification (pts./hr.) 1.7
    Heating - Reverse Cycle - BTUH 6400/6200
    Vent CFM (high fan at zero ESP) 50/40

    FEATURES

    "SmartFan" Fan Cycle Yes
    Auto Frost Control Monitor Yes
    Auto Power Recovery Yes
    Automatic Emergency Heat Yes
    Central Desk Control Compatibility Yes

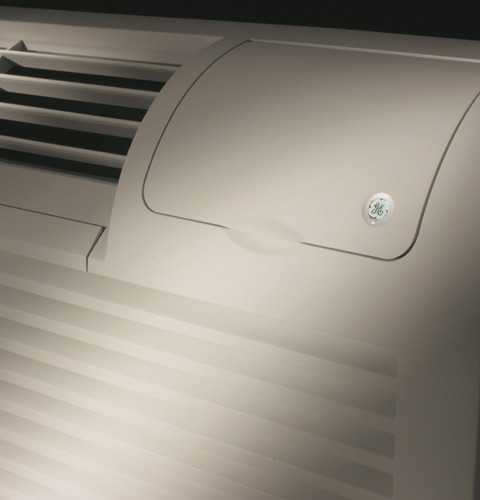

    Control Panel Door Yes
    Control Type Standard Microcomputer; Rotary Knobs
    Corrosion Treated Yes
    Discharge Grille 2-position
    Electric Resistance Heat Lockout Yes
    Fan Motor 2
    Fan Speed Selections Hi/Low Cooling
    2 Fan Only
    Hi/Low Heating
    Freeze Sentinel Yes
    Heat Pump Heat Back-Up Resistance; Supplemental
    Heat Sentinel Yes
    Heating - Reverse Cycle - COP 3.6
    Louver Style Reversible
    Power Connection Kit RAK3153/3203/3303
    Power Factor 86/87
    Quick Heat Recovery Yes
    Remote Control Compatible
    Reverse Cycle Defrost Yes
    Room Occupancy Sensor Compatible
    Rotary Compressor Yes
    Sensible Heat Ratio at 230 Volts 74%
    Solid State Thermostat Control Yes
    Sound Transmission Class (STC) 29
    Staged Heating 3-Stage
    Stamped Aluminum Exterior Rear Grille RAG60
    Temperature Limiting Electronic 7-Step
    Universal Heaters Yes

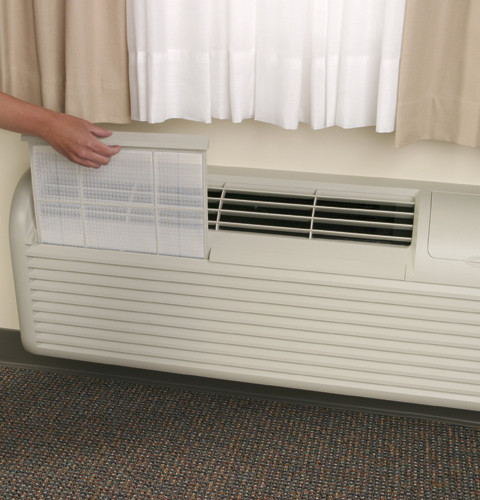

    Upfront Filter Yes
    Vent Control 3-position
    Weather Protected Electrical Components Yes

    POWER / RATINGS

    Cooling - Amperes 2.8/3.0
    Cooling - Amperes; F.L. - Cooling 2.8/3.0
    Cooling - Amperes; L.R. 19.0
    Cooling - Watts 560/545
    Heating - Reverse Cycle - Amps 2.4/2.6
    Heating - Reverse Cycle - Watts 520/505
    Voltage (MAX) 230 V
    Voltage (MIN) 208 V

    WARRANTY

    Labor Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Parts Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Warranty Notes For models produced on or after January 1, 2006
    See written warranty for full details

    WEIGHTS & DIMENSIONS

    Approximate Shipping Weight 115 lb
    Net Weight 100 lb
    Overall Depth 13 3/4 in
    Overall Height 16 in
    Overall Width 42 in
    See All Specifications
