GE Zoneline® Deluxe Series Heat Pump Unit with ICR, 230/208 Volt

Model #: AZ61H07DAD
previous image
next image
1/5
  • Cooling capacity
  • Energy efficiency
  • Dehumidification
  • Dimensions: 16 H x 42 W x 20 7/8 D
Learn More >

Color: Warm Gray Beige

  • Warm Gray Beige
Dimensions: 16 H x 42 W x 20 7/8 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Use & Care Manual View More

Complete Your Laundry Pair:

Current Item
GE Zoneline® Deluxe Series Heat Pump Unit with ICR, 230/208 Volt
Model#: AZ61H07DAD
Clearance $1,220.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

  • Energy efficiency

    Energy efficiency

    12.7/12.7 EER

    Play Video
  • Quiet operation

    Quiet operation

    Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

    Play Video
  • Electronic touch controls with LED display

    Electronic touch controls with LED display

    undefined

    Play Video

  • Cooling capacity

    7,000/6,900 BTU

  • Dehumidification

    1.7 pints/hour

  • Reverse cycle heat

    6,200/6,100 BTU

  • Heat pump efficiency

    3.9/3.9 COP

  • Indoor fan CFM (high/low)

    340/194

  • Fresh air vent CFM (fully open high fan)

    33

  • Internal condensate removal

    Minimizes condensate draining from the unit during heat pump operation

  • Heat & Freeze Sentinels

    Keeps the room from overheating or freezing

  • Boost heat option

    Provides supplemental resistance heat in heat pump mode

  • Electronic temperature limiting

    Prevents expensive over-cooling or over-heating of the room

  • R-410A refrigerant

See All Features

Claims & Certifications

Specs & Details

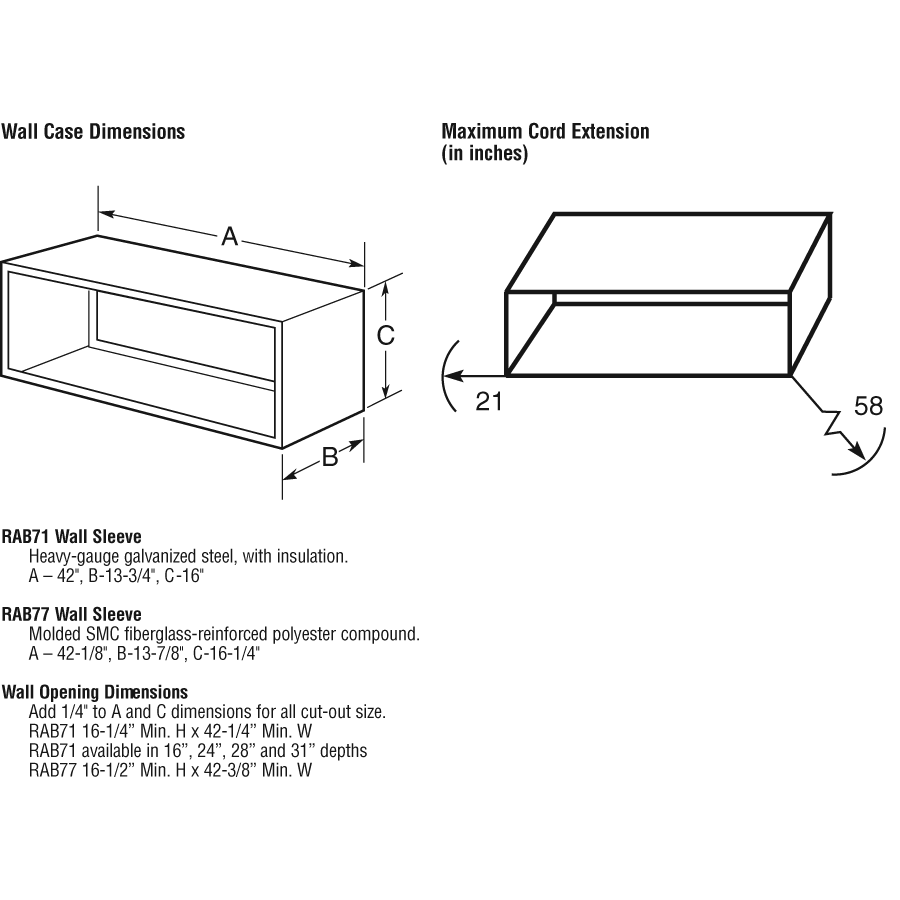

Dimensions: 16 H x 42 W x 20 7/8 D

APPEARANCE

Color Appearance Warm Gray Beige

CAPACITY

CFM Indoor Fan High 340
CFM Indoor Fan Low 194
Cooling BTUH (MAX) 7,000 Btu
Cooling BTUH (MIN) 6,900 Btu
Cooling EER (BTUH / Watt) 12.7/12.7
Dehumidification (pts./hr.) 1.7
Heating - Reverse Cycle - BTUH 6200/6100
Vent CFM (high fan at zero ESP) 50/40

FEATURES

Chassis Type Slide-In
Control Type Standard Microcomputer
Tactile touch pad with LED Display
Discharge Grille 2-position
Electronic Micro Computer Control Yes
Fan Cycle Switch Yes
Fan Motor 2
Fan Speed Control Yes
Fan Speed Selections Hi/Low Cooling
Hi/Low Heating
Hi/Low Fan Only
Filter Type Rigid Frame
Slide-Out
Heat - Cool Yes
Heating - Reverse Cycle - COP 3.9/3.9
Internal Condensate Removal (ICR) Yes
Louver Style Reversible
Manual Vent Control Hidden
Power Factor 91
Rotary Compressor Yes
Sensible Heat Ratio 85%
Temperature Limiting Electronic 7-Step
Temperature Range 60 - 85 F
Vent Control 3-position
Venting Features Concealed Manual Vent Control
Vent Air Filter
Outdoor Vent Control - 3 Positions
Zoneline Features "Smart Fan" Fan Cycle Control
Automatic Emergency Heat
Auto Power Recovery
Reverse Cycle Defrost
Remote Thermostat Compatibility
Central Desk Control Compatibility
Proportional - Integral ID Airflow
Random Twist/Length Segment Tangential Blower
Weather Protected Electrical Components
"Sleep" Mode
Power Cord (LDCI) included
Heat Sentinel
Freeze Sentinel
Automatic Indoor Frost Control
Universal Heaters
Quick Heat Recovery
3-Stage Heating Design
Heat Pump with Resistance Heat Backup
Heat Pump with Supplemental Resistance Heat

POWER / RATINGS

Cooling - Amperes 2.6/2.8
Cooling - Amperes; F.L. - Cooling 2.6/2.8
Cooling - Amperes; L.R. 19.0
Cooling - Watts 550/530
Heating - Reverse Cycle - Amps 2.2/2.4
Heating - Reverse Cycle - Watts 465/440
Voltage (MAX) 230 V
Voltage (MIN) 208 V

WARRANTY

Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 109.8 lb
Net Weight 96.8 lb
Overall Depth 20 7/8 in
Overall Depth (Excludes Sleeve) 19 13/16 in
Overall Height 16 in
Overall Height (Excludes Sleeve) 15 1/2 in
Overall Width 42 in
Overall Width (Excludes Sleeve) 40 in
See All Specifications
