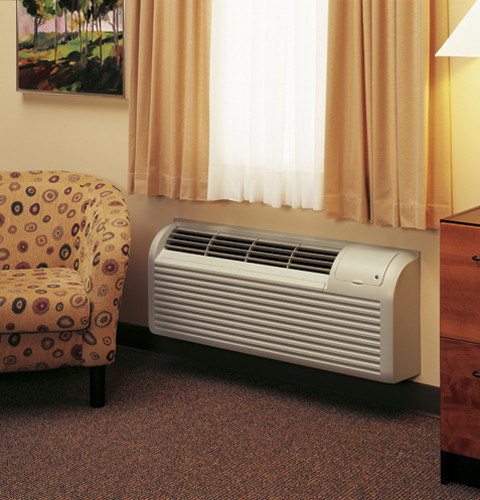

GE Zoneline® Dry Air 25 Cooling and Electric Heat Unit

Model #: AZ29E09DAP
  • 8,800 / 8,500 BTUH
  • 11.5 / 11.5 E.E.R.
  • Electronic touch controls with LED display
  • Dimensions: 16 H x 42 W x 13 3/4 D
Learn More >

Color: Warm Gray Beige

  • Warm Gray Beige
Dimensions: 16 H x 42 W x 13 3/4 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Complete Your Laundry Pair:

Current Item
Model#: AZ29E09DAP
Clearance $1,069.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes
    • 8,800 / 8,500 BTUH

    • 11.5 / 11.5 E.E.R.

    • Electronic touch controls with LED display

    • 3.4 dehumidification (pints/hr)

    • 230 / 200 CFM indoor fan (high/low)

    • 70 / 45 vent CFM

    • 29 Sound Transmission Class (STC)

    • Heat Sentinel

    • Electronic 7-step temperature limiting to prevent overcooling or overheating of room

    • Corrosion-treated chassis

      Extends life of the unit in SeaCoast areas

    See All Features

    Dimensions: 16 H x 42 W x 13 3/4 D

    ACCESSORIES

    Duct Adaptor RAK6052
    Duct Extension RAK601
    Exterior Architectural Louvers RAG61(Beige); RAG62(Maple); RAG63(Bittersweet)
    Extruded Aluminum Grille RAG67

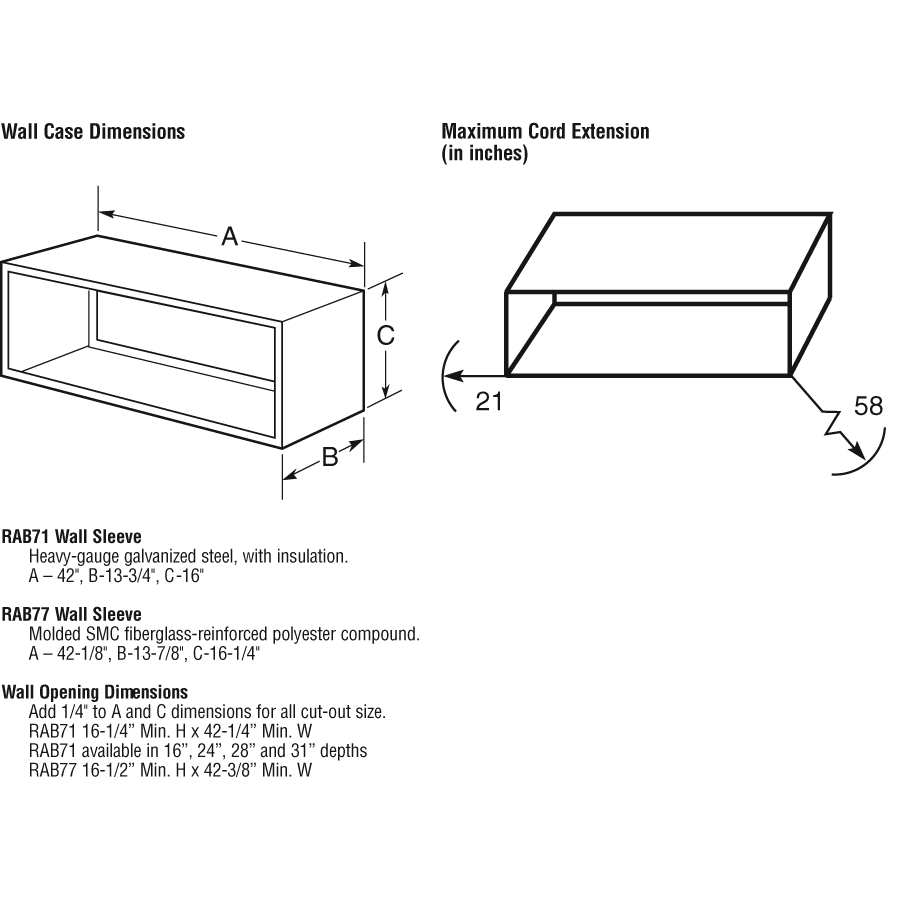

    Insulated Wall Case RAB71A
    SMC Wall Case RAB77A4

    APPEARANCE

    Color Appearance Warm Gray Beige

    CAPACITY

    CFM Indoor Fan High 230
    CFM Indoor Fan Low 200
    Cooling BTUH (MAX) 8,800 Btu
    Cooling BTUH (MIN) 8,500 Btu
    Cooling EER (BTUH / Watt) 11.5/11.5
    Dehumidification (pts./hr.) 3.4
    Vent CFM (high fan at zero ESP) 70/45

    FEATURES

    "SmartFan" Fan Cycle Yes
    Auto Frost Control Monitor Yes
    Auto Power Recovery Yes
    Central Desk Control Compatibility Yes
    Control Panel Door Yes
    Control Type Standard Microcomputer
    Tactile touch pad with LED Display
    Corrosion Treated Yes
    Discharge Grille 2-position
    Electronic Micro Computer Control Yes
    Fan Motor 2
    Fan Speed Control Yes
    Fan Speed Selections Hi/Low Cooling
    2 Fan Only
    Hi/Low Heating
    Freeze Sentinel Yes
    Heat - Cool Yes
    Heat Sentinel Yes
    Louver Style Reversible
    Manual Vent Control Hidden
    Power Factor 86/86
    Remote Thermostat Compatible
    Rotary Compressor Yes
    Sensible Heat Ratio at 230 Volts 58%
    Solid State Thermostat Control Yes
    Sound Transmission Class (STC) 29
    Stamped Aluminum Exterior Rear Grille RAG60
    Temperature Limiting Electronic 7-Step
    Universal Heaters Yes
    Upfront Filter Yes
    Vent Control 3-position
    Weather Protected Electrical Components Yes

    POWER / RATINGS

    Cooling - Amperes 3.8/4.1
    Cooling - Amperes; F.L. - Cooling 3.8/4.1
    Cooling - Amperes; L.R. 21.0
    Cooling - Watts 765/740
    Voltage (MAX) 230 V
    Voltage (MIN) 208 V

    WARRANTY

    Labor Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Parts Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Warranty Notes See written warranty for full details

    WEIGHTS & DIMENSIONS

    Approximate Shipping Weight 121 lb
    Net Weight 106 lb
    Overall Depth 13 3/4 in
    Overall Height 16 in
    Overall Width 42 in
