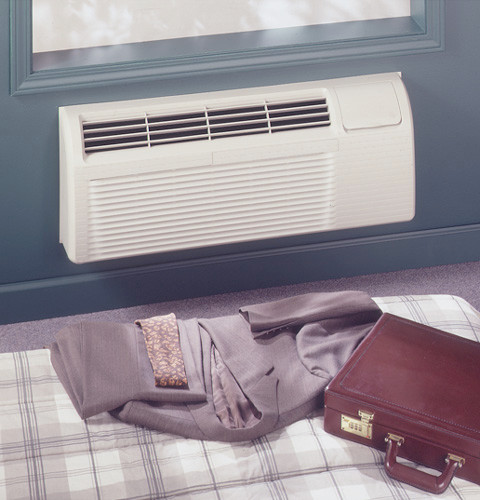

GE® Zoneline Dry Air 25 Series Cooling and Electric Heat Unit

Model #: AZ22E12E3P
previous image
next image
1/5
  • Decorative warm gray-beige front
  • Cooling with electric heat
  • Dry air 25
  • Dimensions: 16 1/2 H x 42 3/8 W x 13 3/4 D
Learn More >
Dimensions: 16 1/2 H x 42 3/8 W x 13 3/4 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Complete Your Laundry Pair:

Current Item
GE® Zoneline Dry Air 25 Series Cooling and Electric Heat Unit
Model#: AZ22E12E3P
Clearance $959.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

  • Remote control compatibility for wall-mounted thermostats

    Remote control compatibility for wall-mounted thermostats

    undefined

  • Up-front filters for easy access and cleaning

    Up-front filters for easy access and cleaning

    undefined

  • Decorative warm gray-beige front

  • Cooling with electric heat

  • Dry air 25

  • 265V model

  • 15 Amps, 3000 Watts

  • Available in 11,200 BTU

  • Attached power cord

  • Slide-out chassis

  • Central desk control compatibility

  • Mechanical temperature limiting for restriction of room temperature

  • Freeze Sentinel protects unoccupied rooms against freeze-up

  • Hidden fan cycle switch

  • Hidden manual vent control for fresh air introduction

See All Features

Claims & Certifications

Specs & Details

Dimensions: 16 1/2 H x 42 3/8 W x 13 3/4 D

ACCESSORIES

External Drain Kit RAD10 - Optional
Insulated Wall Case RAB71A
SMC Wall Case RAB77A4

CAPACITY

CFM Indoor Fan High 240
CFM Indoor Fan Low 210
Cooling BTUH (MAX) 11,200 Btu
Cooling EER (BTUH / Watt) 10.2
Dehumidification (pts./hr.) 4.5
Vent CFM (high fan at zero ESP) 70

FEATURES

Auto Frost Control Monitor Yes
Auto Power Recovery Yes
Central Desk Control Compatibility Yes
Control Panel Door Yes
Corrosion Treated Yes
Electronic Micro Computer Control Yes
Fan Cycle Switch Hidden
Freeze Sentinel Yes
Heat - Cool Yes
Louver Style Reversible
Manual Vent Control Yes
Multi-Directional Air Outlet Yes
Power Factor 94
Remote Control Yes
Rotary Compressor Yes
Sensible Heat Ratio at 265 Volts 54%
Solid State Thermostat Control Yes
Temperature Limiting Mechanical
Upfront Filter Yes
Weather Protected Electrical Components Yes

POWER / RATINGS

Cooling - Amperes 4.4
Cooling - Amperes; F.L. - Cooling 4.4
Cooling - Amperes; L.R. 24.0
Cooling - Watts 1095
Voltage (MAX) 265 V

WARRANTY

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Limited 5-year specified internal components
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 135 lb
Net Weight 119 lb
Overall Depth 13 3/4 in
Overall Height 16 1/2 in
Overall Width 42 3/8 in
See All Specifications
