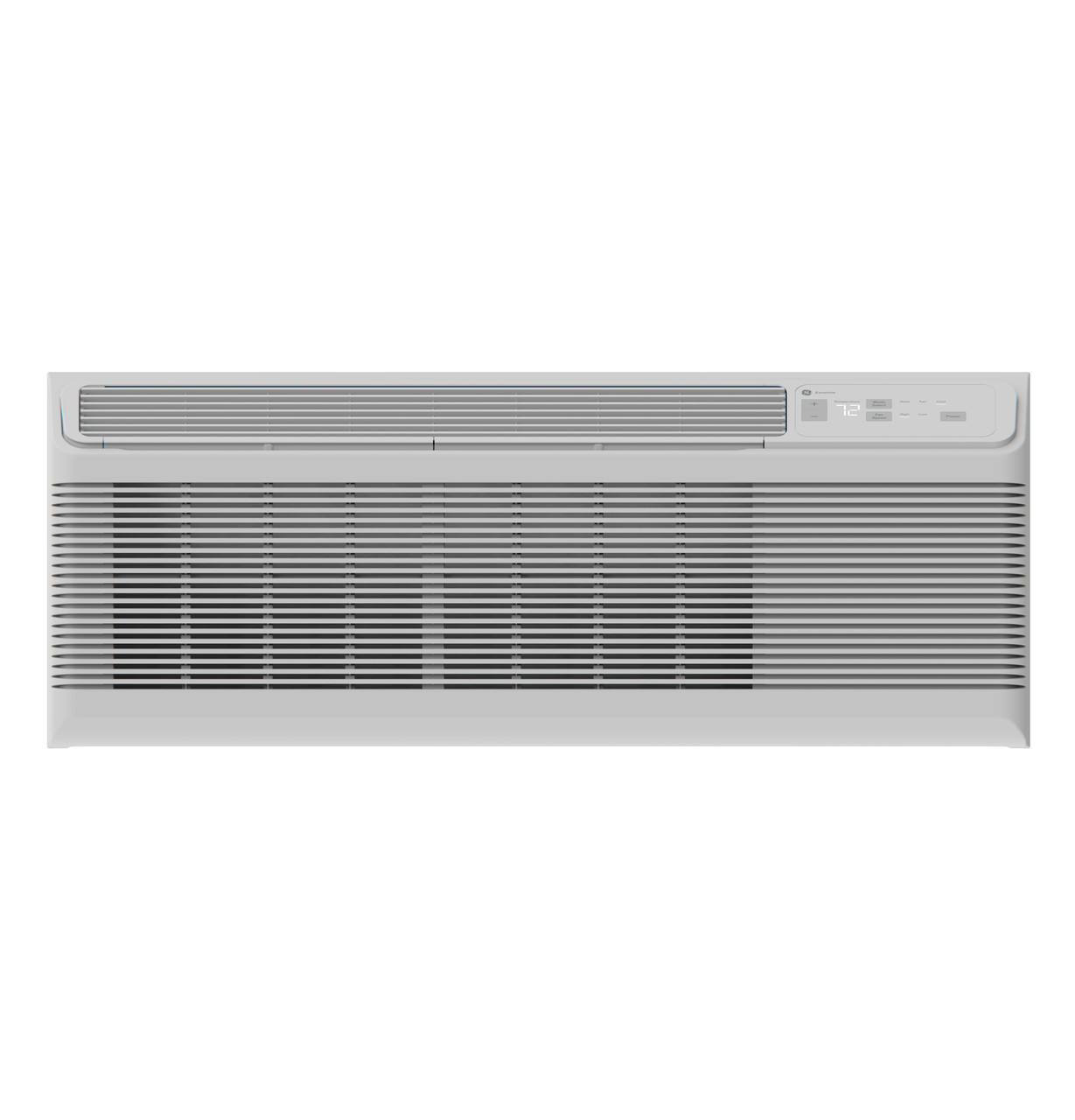

GE Zoneline® Heat Pump Fixed Speed Unit with ICR 12,000 BTU, 230/208 Volt

Model #: AZHS12DRXXA
previous image
next image
1/5
  • R454B - Most environmentally friendly refrigerant on the market
  • ICR (Internal condensate removal)
  • Heat pump down to 25°F
  • Dimensions: 16 H x 42 W x 20 13/16 D
Learn More >

Color: Grey White

  • Grey White
Dimensions: 16 H x 42 W x 20 13/16 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Use & Care Manual View More

Complete Your Laundry Pair:

Current Item
GE Zoneline® Heat Pump Fixed Speed Unit with ICR 12,000 BTU, 230/208 Volt
Model#: AZHS12DRXXA
Sale Clearance $1,359.00
$1,538.00
Save $179.00 (12%)
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

  • Designed & Assembled in America

    Designed & Assembled in America

    Date of Manufacture – 2025 or later

  • R454B - Most environmentally friendly refrigerant on the market

  • ICR (Internal condensate removal)

  • Heat pump down to 25°F

  • Boost heat option

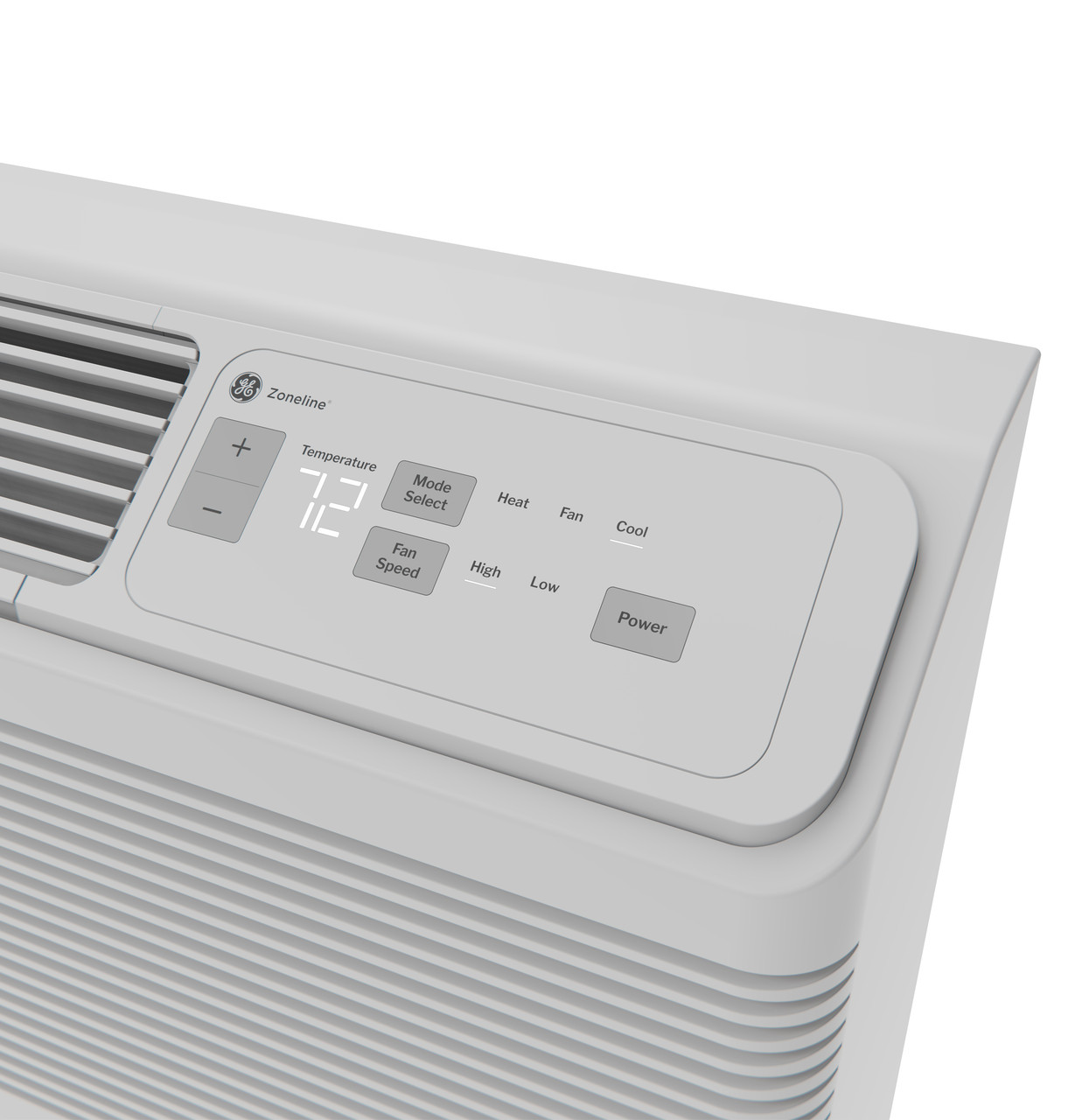

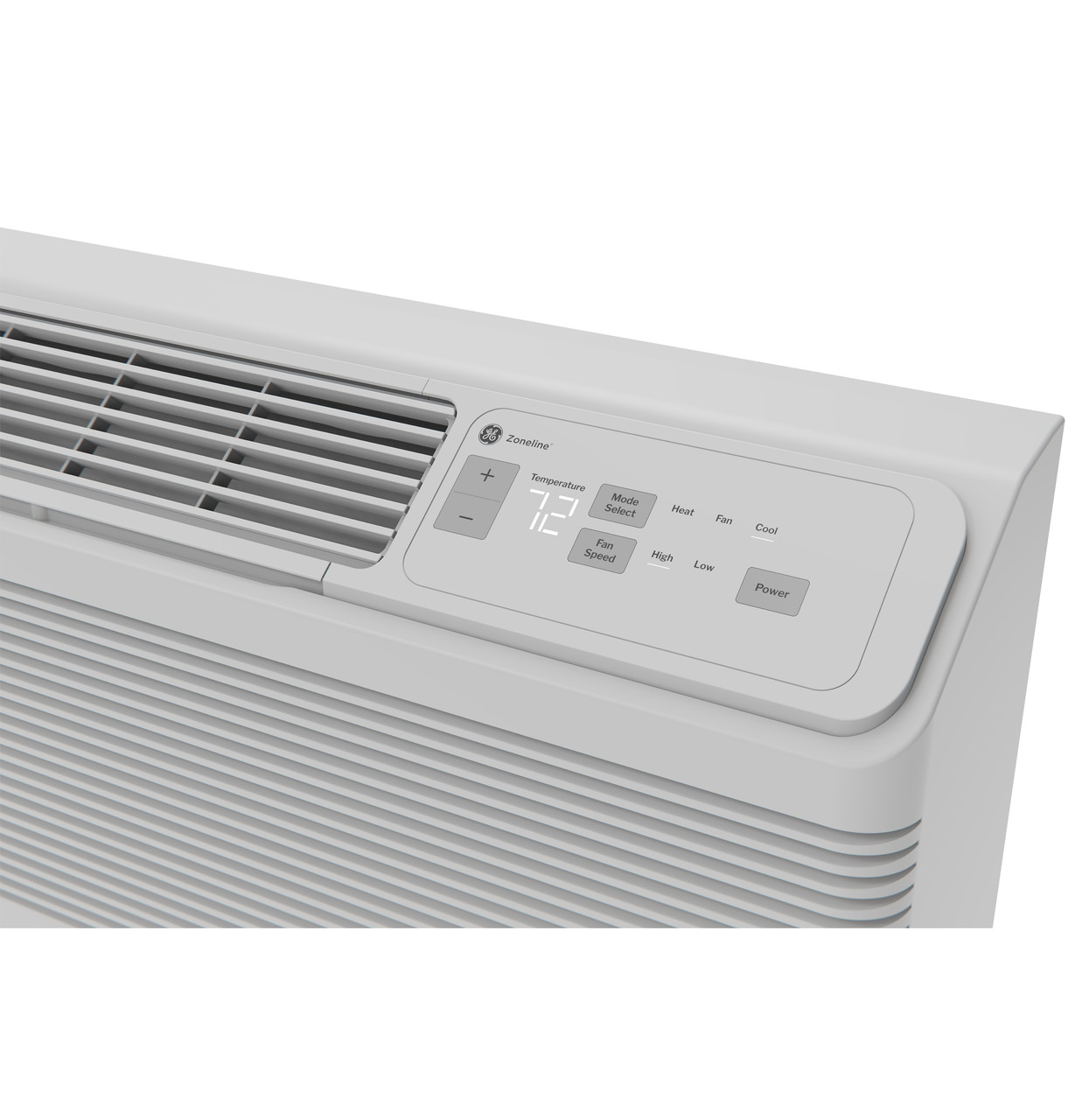

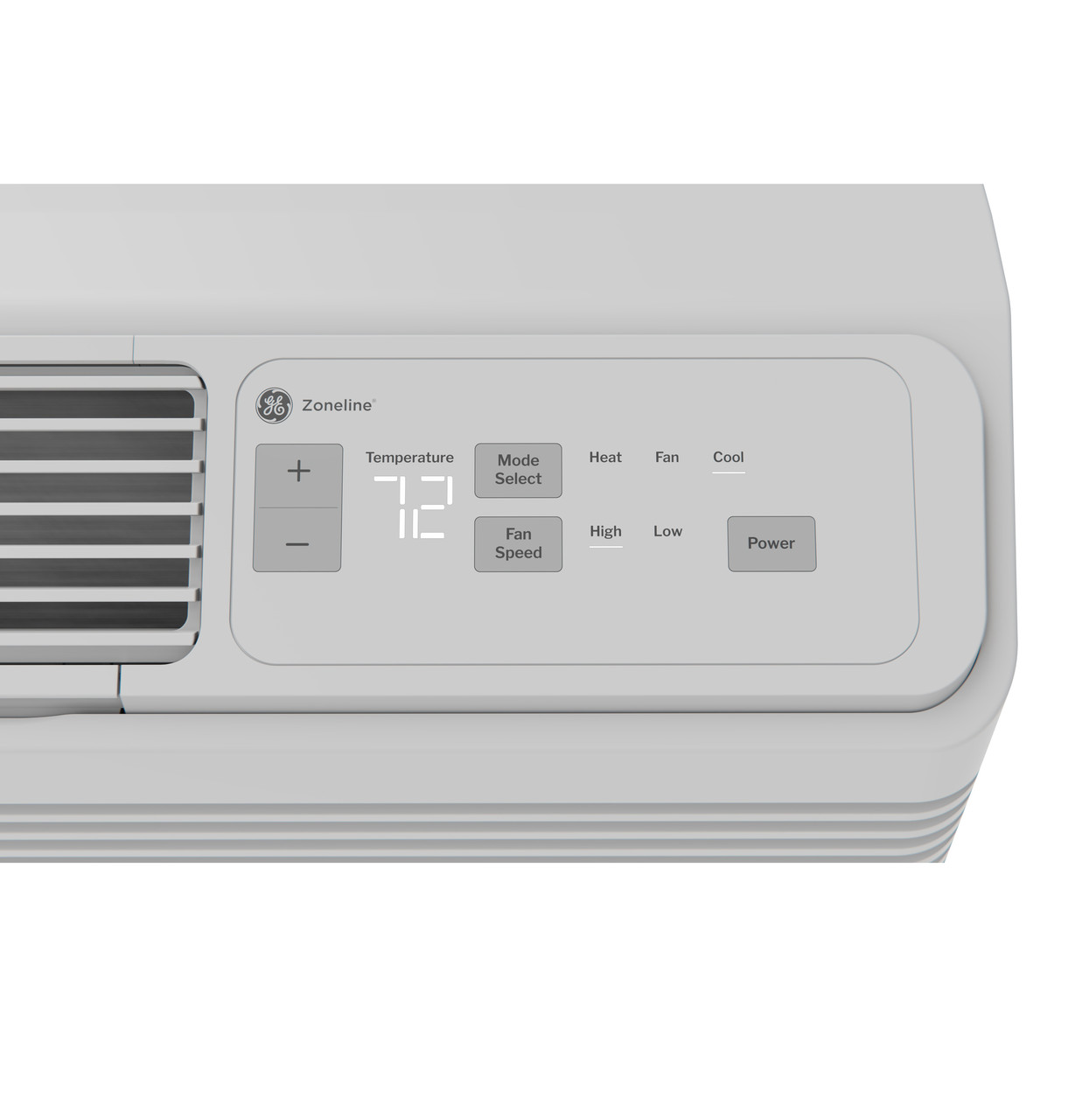

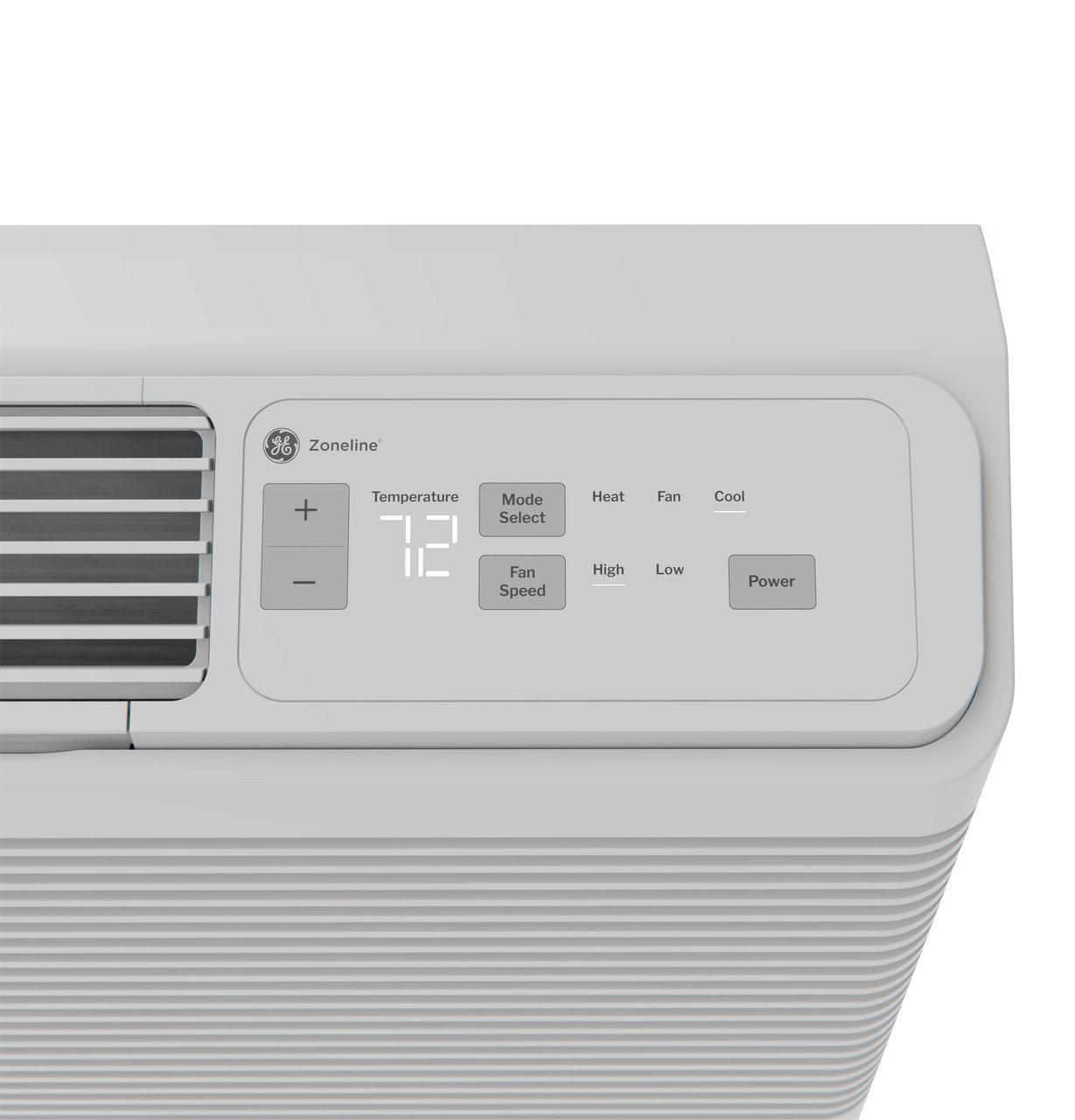

  • Electronic touch controls with LED display

  • Quiet Operation - baked on mastic sound barrier

  • Corrosion protection package

  • SMC basepan and bulkhead

  • Electronic temperature limiting

  • Fresh air vent

See All Features

Claims & Certifications

Specs & Details

Dimensions: 16 H x 42 W x 20 13/16 D

ACCESSORIES

Accessories Required for Installation RAB42 - Wall Case
Outdoor Grille

APPEARANCE

Color Appearance Grey White

CAPACITY

CFM Indoor Fan High 440
CFM Indoor Fan Low 305
Cooling BTUH (MAX) 12100
Cooling BTUH (MIN) 11,900 Btu
Cooling EER (BTUH / Watt) 11.6/11.6
Dehumidification (pts./hr.) 3.1 (High Speed)
Vent CFM (high fan at zero ESP) 43.2

FEATURES

Central Desk Control Compatibility Yes
Chassis Type Slide-In
Control Type Standard Microcomputer
Tactile touch pad with LED Display
Corrosion Treated Yes
Discharge Grille 2-position
Electronic Micro Computer Control Yes
Fan Cycle Switch Yes
Fan Motor 2
Fan Speed Control Yes
Fan Speed Selections Hi/Low Cooling
Hi/Low Heating
Hi/Low Fan Only
Filter Type Rigid Frame
Slide-Out
Freeze Sentinel Yes
Heat - Cool Yes
Heat Sentinel Yes
Heating - Reverse Cycle - COP 3.7/3.8
Heating System Heat Pump With Backup Resistance Heat
Internal Condensate Removal (ICR) Yes
Louver Style Reversible
Manual Vent Control Hidden
Power Factor 95
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Charge (oz.) 30.5
Refrigerant Type R454B
Rotary Compressor Yes
Sensible Heat Ratio 0.75
Temperature Limiting Electronic 24-Step
Temperature Range 60 - 85 F
Vent Control 3-position
Venting Features Concealed Manual Vent Control
Vent Air Filter
Outdoor Vent Control - 3 Positions
Zoneline Features "Smart Fan" Fan Cycle Control
Heat Sentinel
Freeze Sentinel
Automatic Indoor Frost Control
Universal Heaters
Auto Power Recovery
Remote Thermostat Compatibility
Central Desk Control Compatibility
Random Twist/Length Segment Tangential Blower

POWER / RATINGS

Cooling - Amperes 4.7/5.1
Cooling - Amperes; F.L. - Cooling 4.6/4.9
Cooling - Amperes; L.R. 29.5
Cooling - Watts 1035/1020
Heating BTUH 11000 / 10900
Heating - Electric - Heater Amps 3.7/3.5
Heating - Reverse Cycle - Watts 870/850
Voltage (MAX) 230 V
Voltage (MIN) 208 V

WARRANTY

Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 116 lb
Net Weight 106 lb
Overall Depth 20 13/16 in
Overall Height 16 in
Overall Width 42 in
See All Specifications
