GE Zoneline Heat Pump, Single Package Vertical Air Conditioner, 230-208 Volt

Model #: AZ9VH12DAC
  • Insta-Platform™
  • Self-Contained Drainage System
  • Fast-Connect Plumbing
  • Dimensions: 31.875H x 23.625W x 24.125D
Learn More >

Color: Gray

  • Gray
Dimensions: 31.875H x 23.625W x 24.125D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Complete Your Laundry Pair:

Current Item

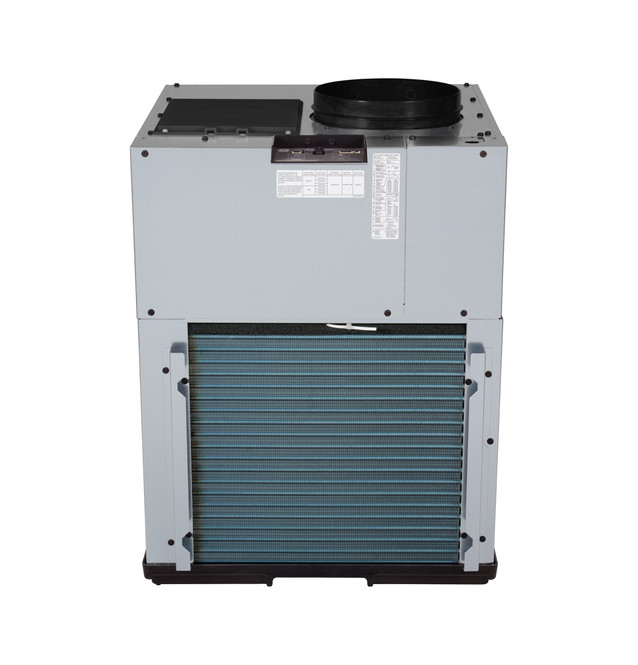

AZ9VH12DAC_AZ9VH12EAC_Head On wo Filter_Blk.jpg
Model#: AZ9VH12DAC
Sale Clearance $2,679.00
$2,704.00
Save $25.00 (1%)
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes
  • Designed & Assembled in America

    Designed & Assembled in America

    undefined

  • Insta-Platform™

    Eliminates the need for on-site customized platform construction saving time and money

  • Self-Contained Drainage System

    Easy installation allows for simple chassis removal while leaving plumbing completely intact

  • Fast-Connect Plumbing

    Allows preliminary plumbing to be installed outside the closet and prior to installing the chassis

  • Self-Aligning Lock-in-Place System

    The Insta-Platform and the VTAC are self-aligning with a lock-in-place system ensuring the unit is engaging with the plenum gasket

  • Quick-Install Plenum

    Plenum is easily installed from the interior of building, without the need for exterior building access. Caulking is required. It conveniently expands from 8" to 15" for a custom fit

  • Onboard Diagnostics

    Electronic controls give clear and fast diagnostics data and fault codes, for fast and easy resolution

  • SmartHQ™ WiFi capability

    Optional SmartHQ module* gives property managers the ability to monitor multiple units remotely, enhancing guests’ experience. Learn more at smarthqsolutions.com/management (*SmartHQ module part number PBX23W00Y0 or PBX23W00Y1.)

  • Ultra-Quiet

    Delivers quiet cooling power with a smooth sound for a good night’s sleep

  • Reverse Cycle Defrost

    The variable speed compressor and advanced defrost capability allow for the best heat pump operation down to 0° F

  • Anti-Corrosion Design/Premium Guard Seacoast Protection

    Exclusive rust-proof basepan and bulkhead provide another level of corrosion protection to ensure lasting performance in challenging environments

  • Inverter Technology

    Variable speed operation provides an advantage with shorter recovery time, improved efficiency, sound quality and dehumidification. Consistent room temperature allows for total room comfort

See All Features

Dimensions: 31.875H x 23.625W x 24.125D

ACCESSORIES

Accessories Required for Installation Outdoor Grille - RAVAL3
Plenum - RAVWPT9 or RAVWPT15
RAVDPLAT
RAK3XXD Series

APPEARANCE

Color Appearance Gray

CAPACITY

CFM Indoor Fan High 465
CFM Indoor Fan Low 380
Cooling BTUH (MAX) 16200
Cooling BTUH (MIN) 5200
Cooling EER2 (BTUH / Watt) 11.6
Dehumidification (pts./hr.) 3.16
Heating - Reverse Cycle - BTUH 11500

FEATURES

\tHeating - Reverse Cycle - COP2 3.5
Central Desk Control Compatibility Yes
Corrosion Treated Yes
Fan Speed Selections 2 Cooling
Freeze Sentinel Yes
Heat Pump Yes
Heat Sentinel Yes
Heating System Heat Pump
HSPF2 Rating 7.5
Power Connection Kit RAK3XXD Series
Product Type Vertical Air Conditioners
Refrigerant Type R410A
Remote Thermostat RAK190V
Rotary Compressor Yes
SEER2 15.9
Sensible Heat Ratio 0.75
VTAC Features Insta-Platform™
Onboard Diagnostics
SmartHQ™ WIfI Capability
Self-Contained drainage system
Fast-Connect Plumbing
Self-Aligning Lock in place system
Quick-Install Plenum
Ultra-Quiet
Reverse Cycle Defrost
Corrosion Protection
Inverter Technology

POWER / RATINGS

Cooling - Amperes 4.7
Cooling - Watts 970
Heating - Reverse Cycle - Amps 4.4
Heating - Reverse Cycle - Watts Yes
Voltage (MAX) 230

WARRANTY

Labor Warranty Limited 1-year warranty
Limited 5-Year Warranty, Sealed Refrigerating System
Parts Warranty Limited 2-5 Year Warranty
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 137 lb
Net Weight 125 lb
Overall Depth 24.125
Overall Height 31.875
Overall Width 23.625
See All Specifications

Owners Manual
