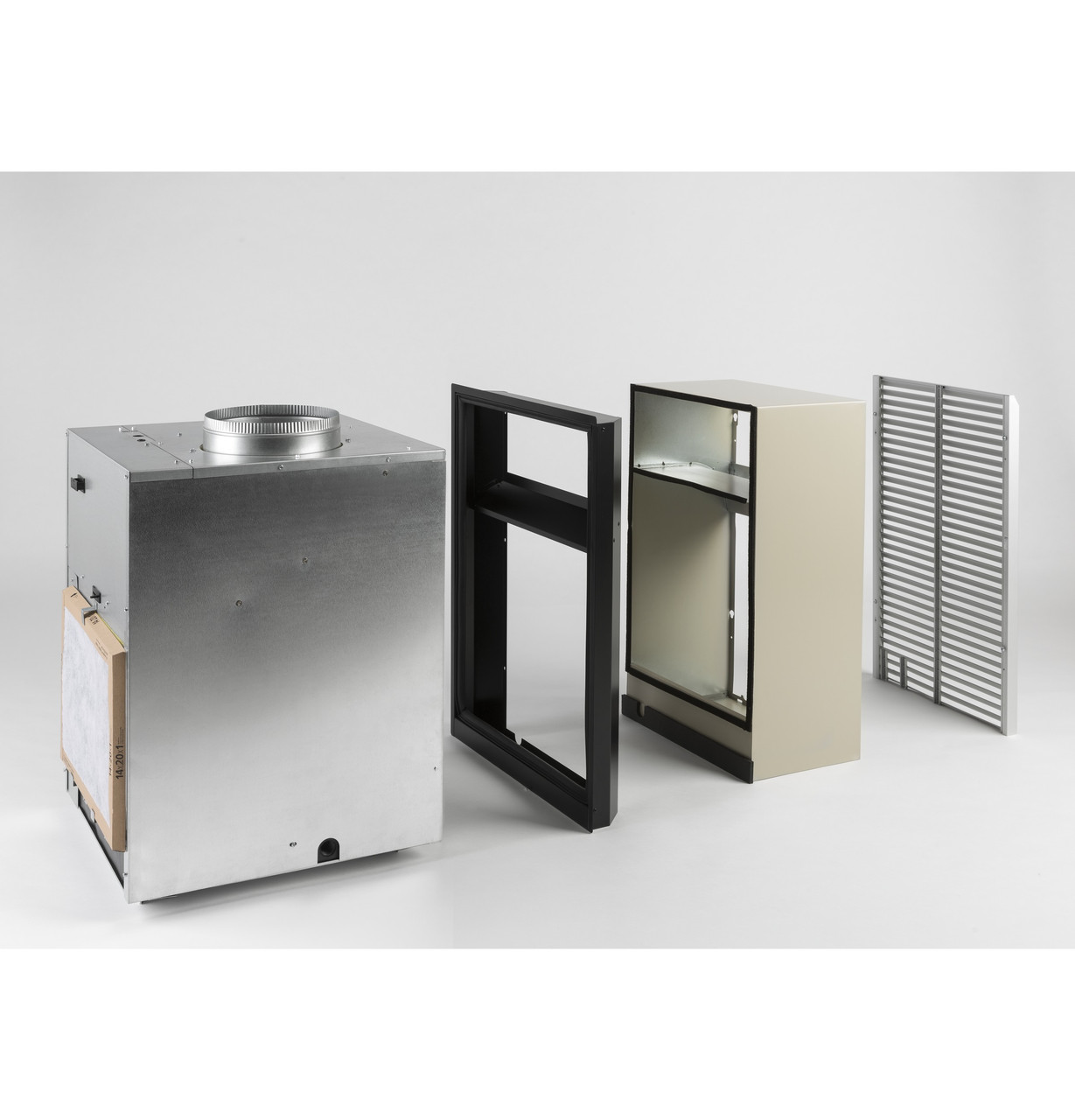

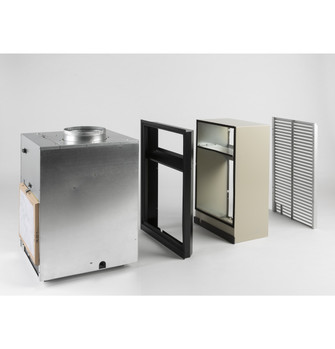

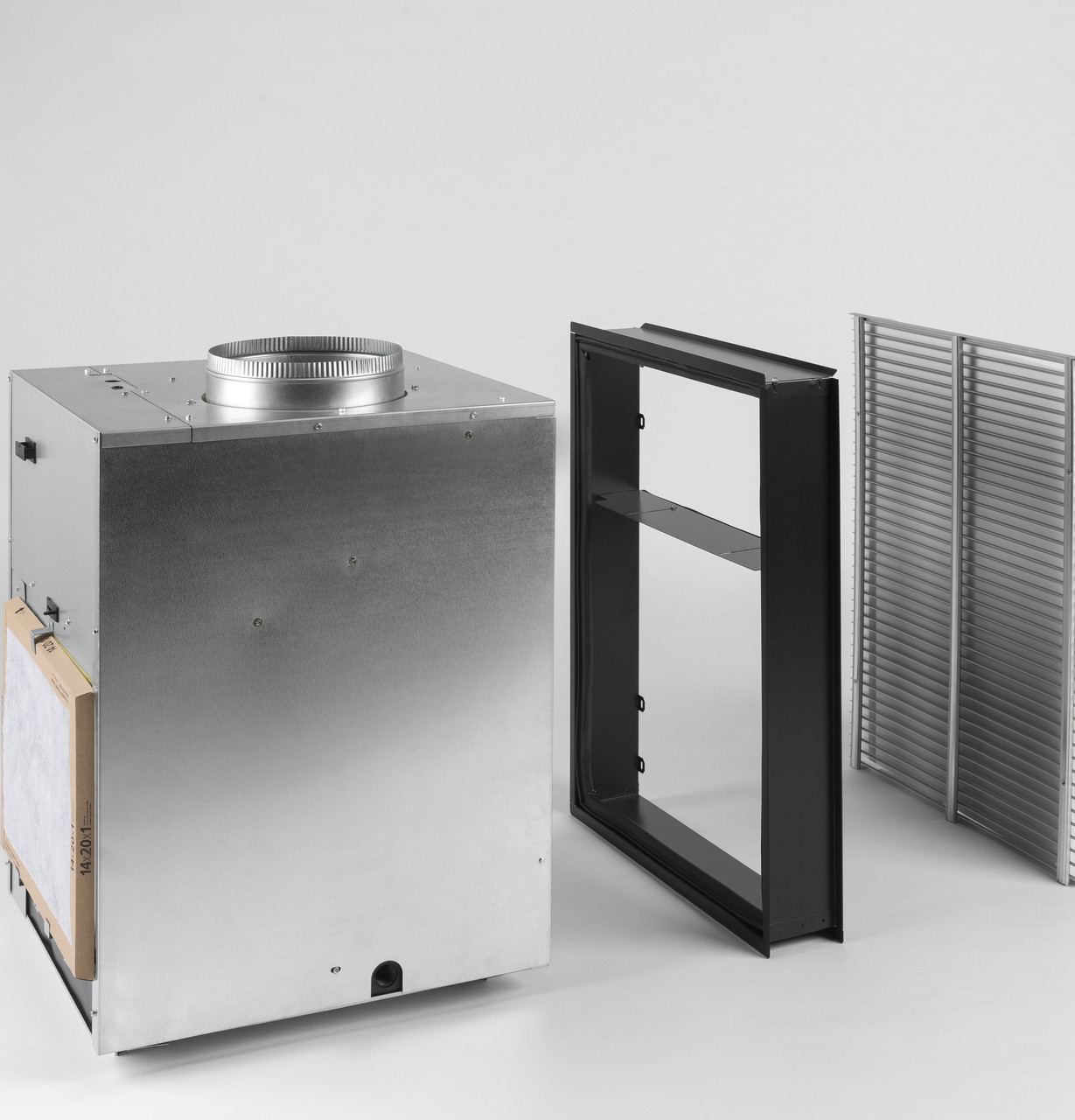

GE Zoneline® Heat Pump Single Package Vertical Air Conditioner 30 Amp 230/208 Volt

Model #: AZ91H12D5E
previous image
next image
1/5
  • Energy efficiency
  • Cooling capacity
  • Vertical space-saving design
  • Dimensions: 32 H x 23 1/8 W x 23 1/8 D
Learn More >

Color: White

  • White
Dimensions: 32 H x 23 1/8 W x 23 1/8 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Use & Care Manual View More

Complete Your Laundry Pair:

Current Item
GE Zoneline® Heat Pump Single Package Vertical Air Conditioner 30 Amp 230/208 Volt
Model#: AZ91H12D5E
Clearance $2,309.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

    • Energy efficiency

      Enhanced energy efficiency with an EER of 11.0

    • Cooling capacity

      11,500/11,000 BTU

    • Vertical space-saving design

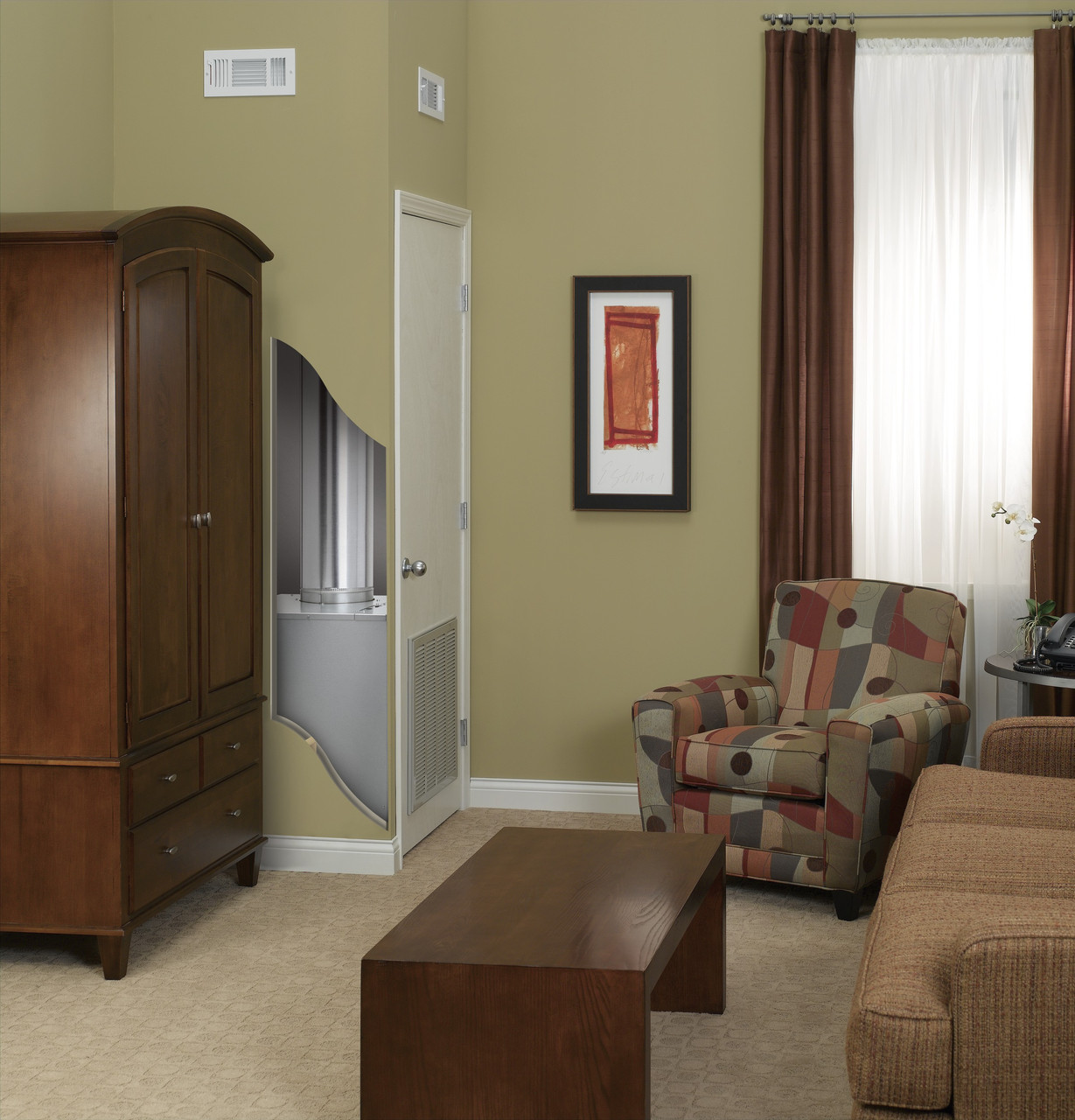

      Optimizes usable floor space with hidden closet design

    • Reliable & quiet

      Every component is engineered to provide exceptional performance

    • Robust plenum gasket seals keep dirt outside and reduces chassis vibration

    • Corrosion treatment on outside coils

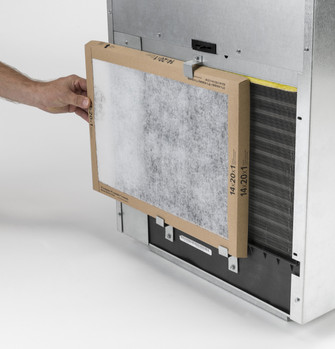

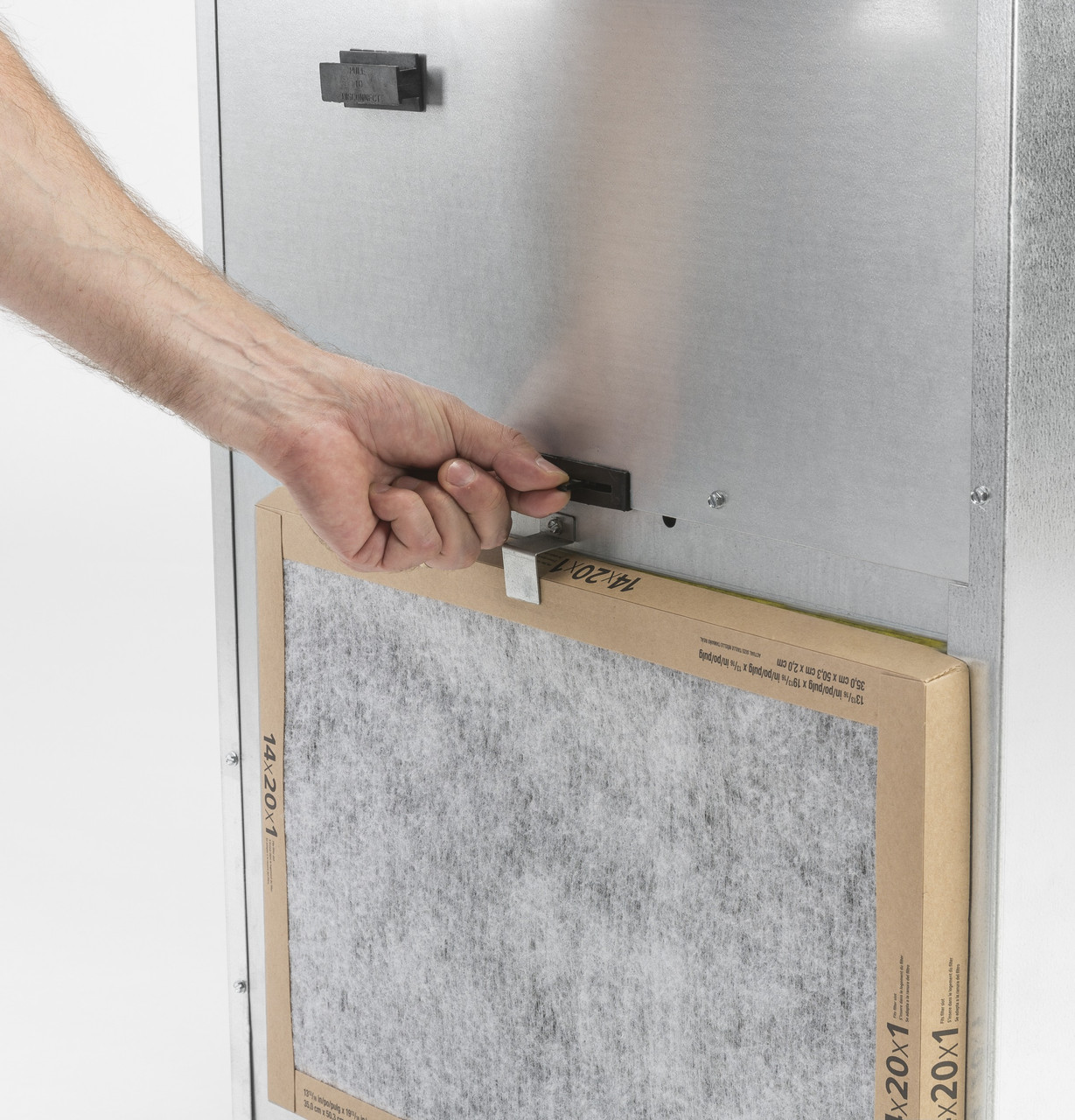

    • Standard filter size

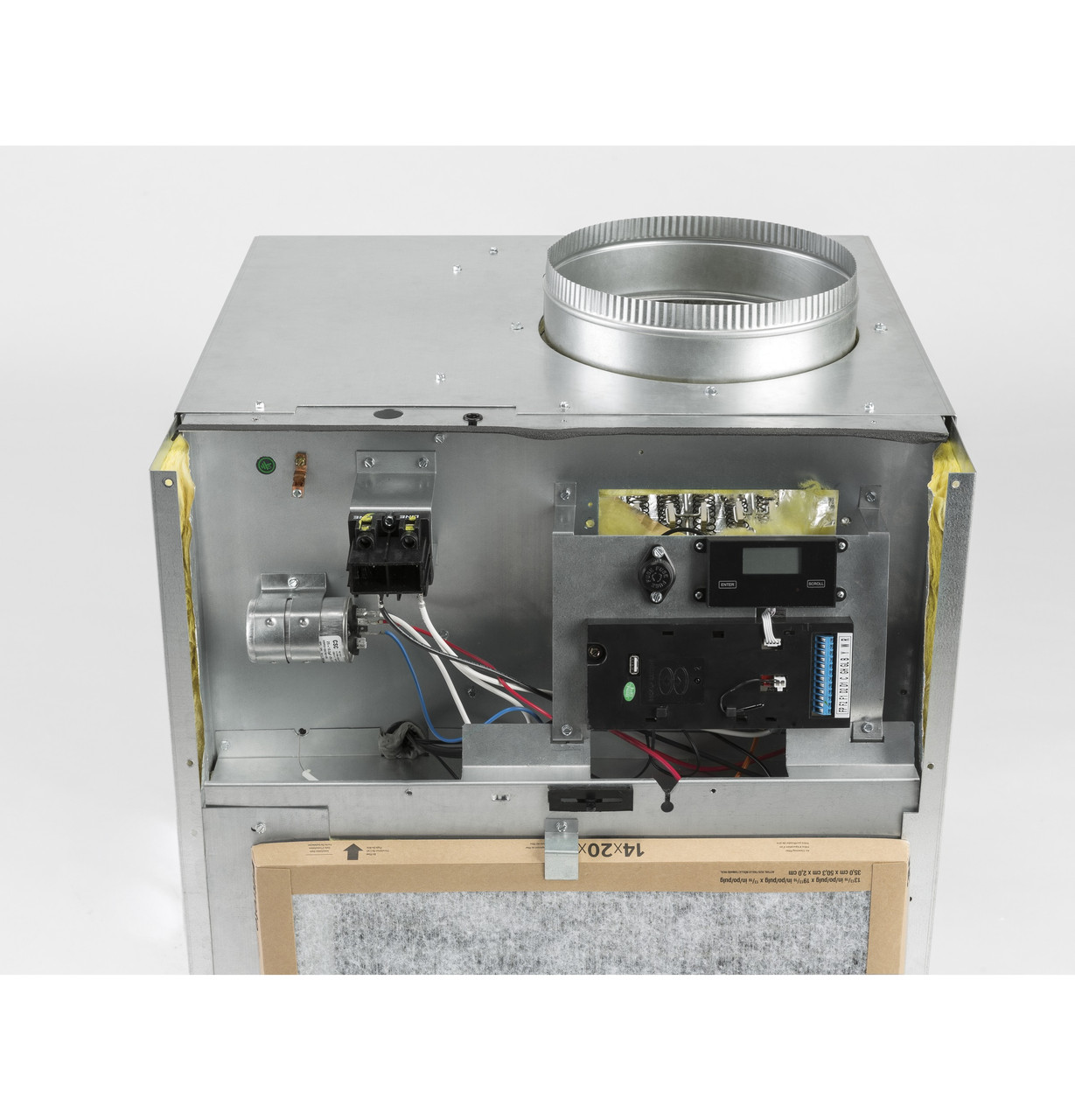

    • Internal diagnostic program

    • Auxiliary fan ready

    • Room air sampling feature maintains a balanced temperature throughout the room

    • Remote wall thermostat capable

    See All Features

    Claims & Certifications

    Specs & Details

    Dimensions: 32 H x 23 1/8 W x 23 1/8 D

    ACCESSORIES

    External Drain Kit RAVDP20

    APPEARANCE

    Color Appearance White

    CAPACITY

    CFM Indoor Fan High 490
    CFM Indoor Fan Low 430
    Cooling BTUH (MAX) 11,500 Btu
    Cooling BTUH (MIN) 11,000 Btu
    Cooling EER (BTUH / Watt) 11.0/11.0
    Dehumidification (pts./hr.) 2.5
    Heating - Reverse Cycle - BTUH 10800/10500
    Vent CFM (high fan at zero ESP) 60

    FEATURES

    Central Desk Control Compatibility Yes
    Corrosion Treated Yes
    Fan Speed Selections 3 Cooling
    Freeze Sentinel Yes
    Heat Pump Yes
    Heating - Reverse Cycle - COP 3.3/3.3
    Heating System Heat Pump

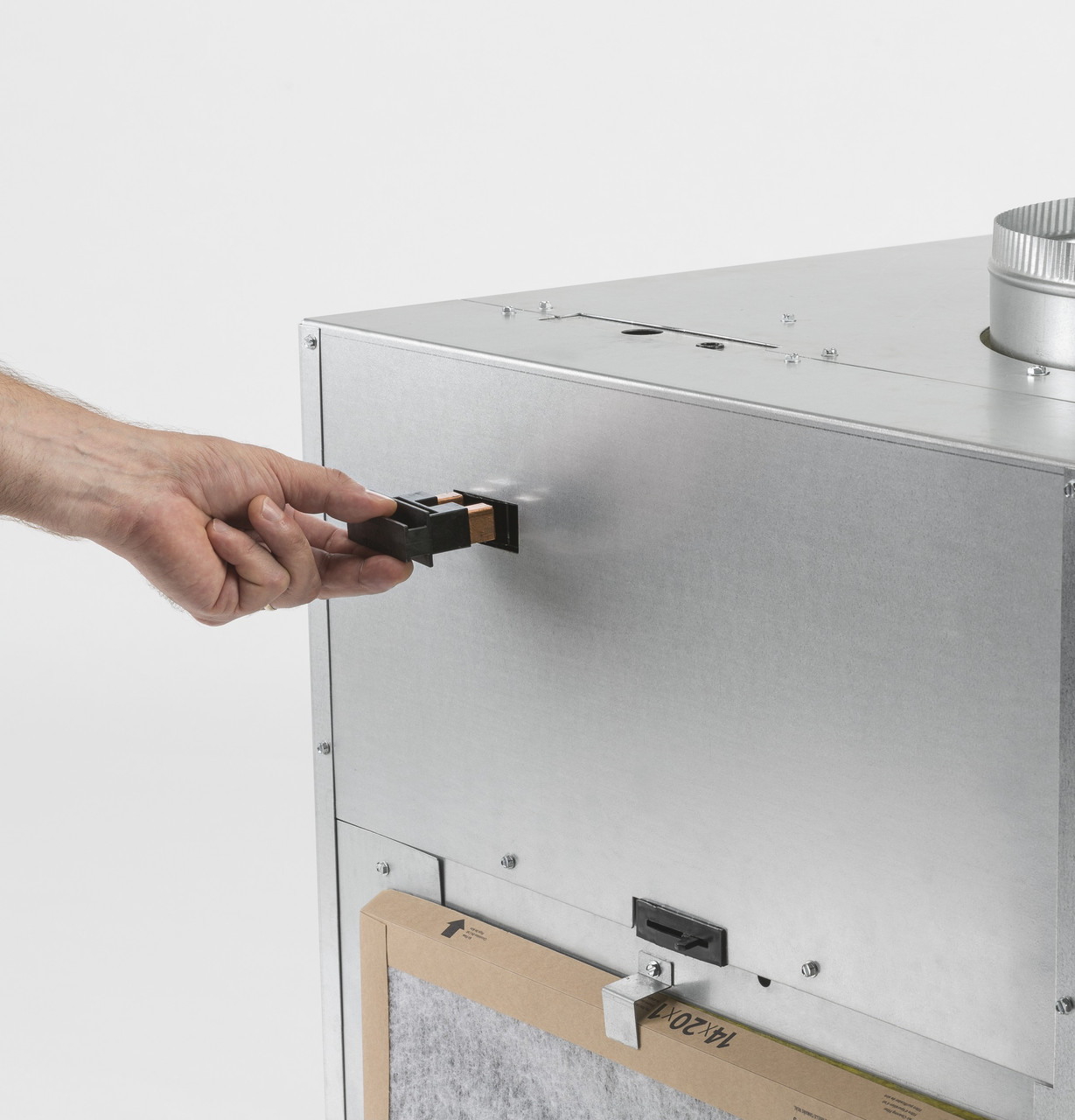

    Manual Vent Control Yes
    Product Type Vertical Air Conditioners
    Refrigerant Type R410A
    Remote Thermostat RAK148
    Rotary Compressor Yes
    Sensible Heat Ratio 79%
    Zoneline Features Electronic Error Diagnostics
    Quick Heat Recovery
    Solid State Thermostat
    Automatic Indoor Frost Control
    Freeze Sentinel
    Auto Power Recovery
    Remote Control Disconnect Kit
    Weather Protected Electrical Components
    Heat Pump with Resistance Heat Backup
    Automatic Emergency Heat

    POWER / RATINGS

    Cooling - Amperes 4.5/5.0
    Cooling - Amperes; F.L. - Cooling 4.5/5.0
    Cooling - Watts 1046/1000
    Heating - Electric - Heater Amps 21.7/19.7
    Heating - Electric - Heater Watts 5000/4090
    Heating - Reverse Cycle - Amps 3.2/3.5
    Heating - Reverse Cycle - Watts 959/933
    Voltage (MAX) 230 V
    Voltage (MIN) 208 V

    WARRANTY

    Labor Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Parts Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Warranty Notes See written warranty for full details

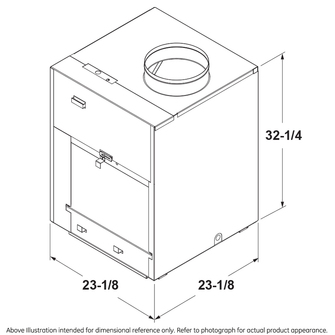

    WEIGHTS & DIMENSIONS

    Approximate Shipping Weight 136 lb
    Net Weight 125 lb
    Overall Depth 23 1/8 in
    Overall Height 32 in
    Overall Width 23 1/8 in
