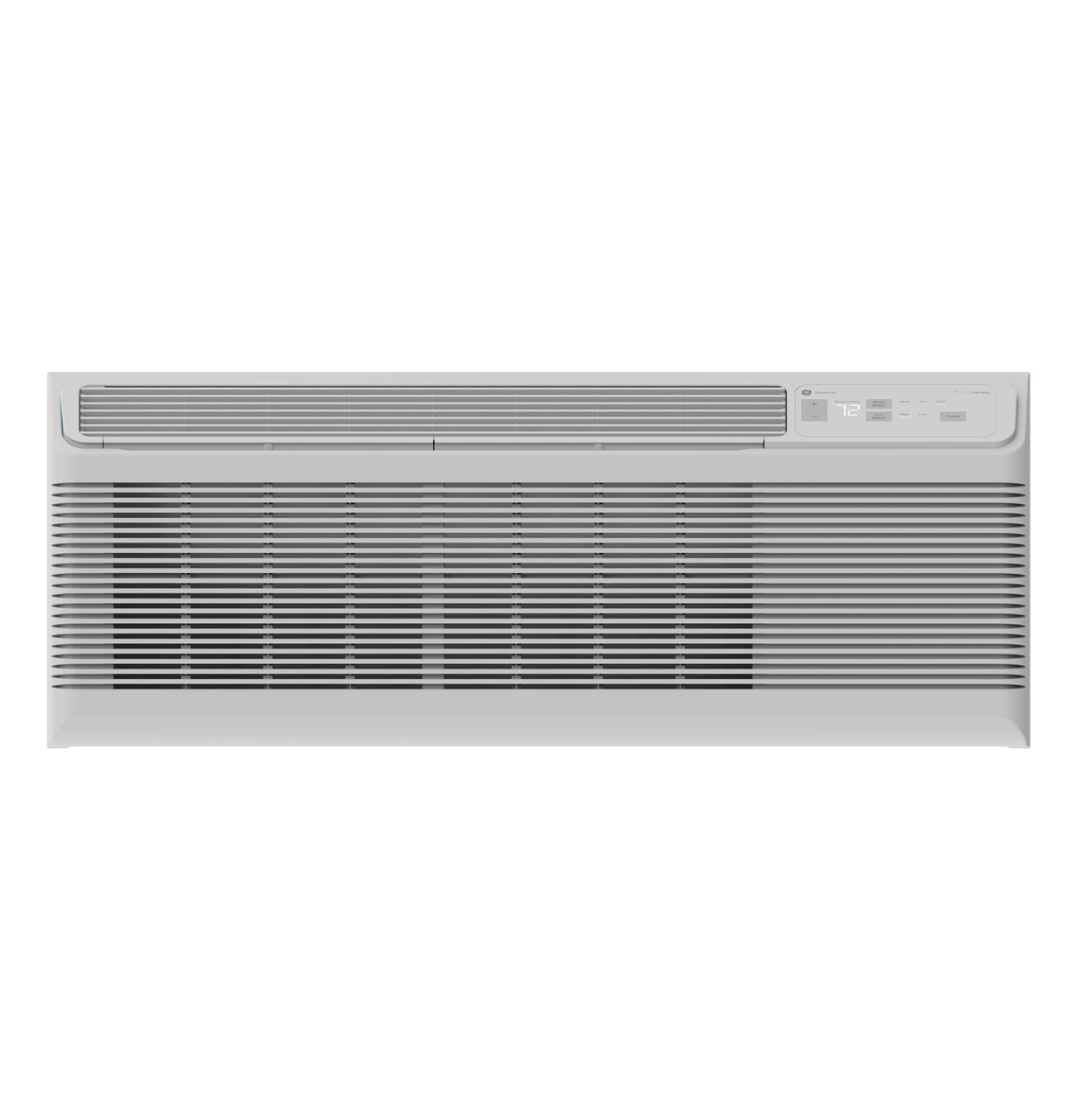

GE Zoneline® Heat Pump Unit with Variable Speed Inverter Technology and ICR 15,000 BTU, 265 Volt

Model #: AZVS15ERXWA
previous image
next image
1/5
  • Variable Speed Inverter Technology (4K - 15K BTU)
  • R454B - Most environmentally friendly refrigerant on the market
  • Heat pump down to 25°F
  • Dimensions: 16H x 42W x 20 13/16D
Learn More >

Color: Grey White

  • Grey White
Dimensions: 16H x 42W x 20 13/16D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Use & Care Manual View More

Complete Your Laundry Pair:

Current Item
GE Zoneline® Heat Pump Unit with Variable Speed Inverter Technology and ICR 15,000 BTU, 265 Volt
Model#: AZVS15ERXWA
Sale Clearance $1,779.00
$2,220.00
Save $441.00 (20%)
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

  • Designed & Assembled in America

    Designed & Assembled in America

    Date of Manufacture – 2025 or later

  • Variable Speed Inverter Technology (4K - 15K BTU)

  • R454B - Most environmentally friendly refrigerant on the market

  • Heat pump down to 25°F

  • Inverter, Internal condensate removal & WIFI

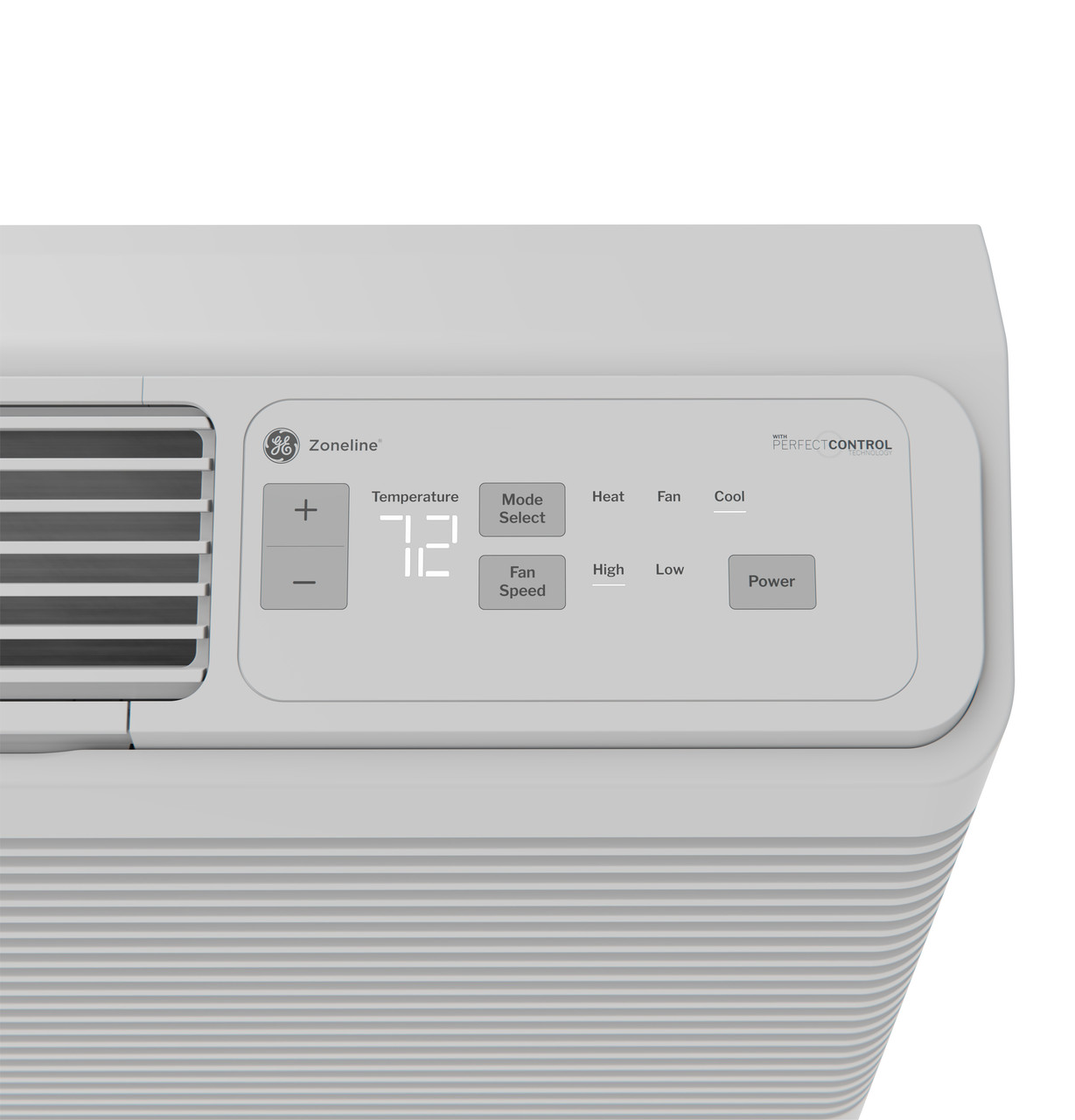

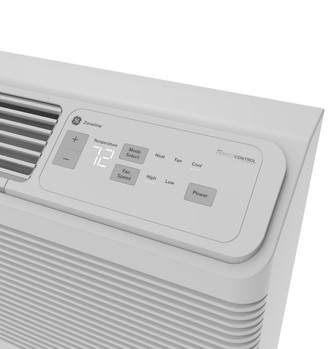

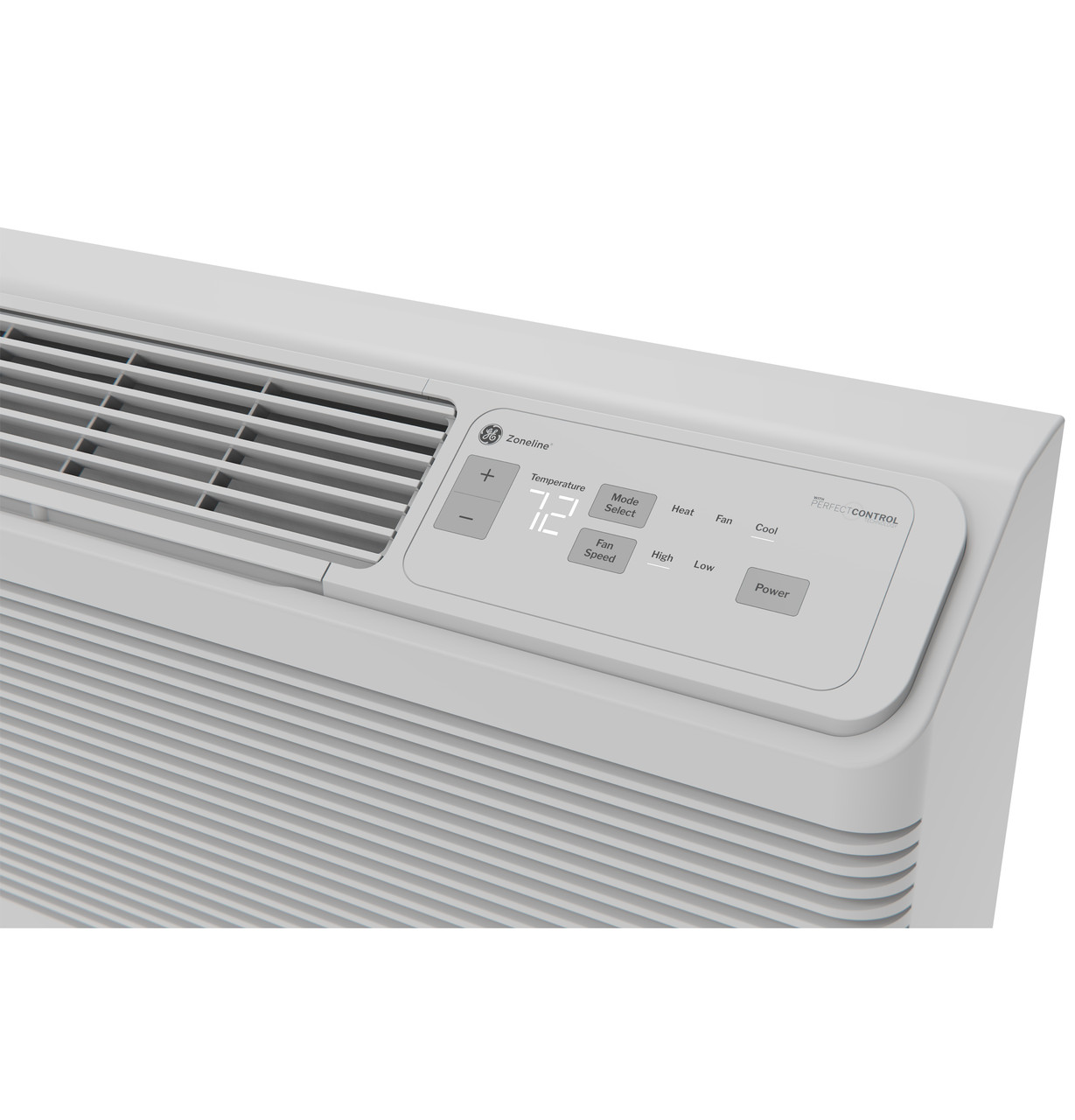

  • Electronic touch control with LED display

  • Twin rotor compressor (Ultra-Quiet)

  • On-board WIFI SmartHQ™ Management ready

  • Quiet operation with baked on mastic sound barrier

  • Corrosion protection package

  • SMC basepan and bulkhead

  • Dehimidification sentinel

  • Dual EEV flow control

  • Boost heat option

See All Features

Claims & Certifications

Specs & Details

Dimensions: 16H x 42W x 20 13/16D

ACCESSORIES

Accessories Required for Installation RAB42 - Wall Case
Outdoor Grille

APPEARANCE

Color Appearance Grey White

CAPACITY

CFM Indoor Fan High 525
CFM Indoor Fan Low 250
Cool BTUH (265V) 14300
Cooling BTUH (MAX) 14300
Cooling EER (BTUH / Watt) 11
Dehumidification (pts./hr.) 2
Vent CFM (high fan at zero ESP) 45

FEATURES

Central Desk Control Compatibility Yes
Chassis Type Slide-In
Control Type Standard Microcomputer
Tactile touch pad with LED Display
Corrosion Treated Yes
Discharge Grille 2-position
Electronic Micro Computer Control Yes
Fan Cycle Switch Yes
Fan Motor 2
EC Controlled
Fan Speed Control Yes
Fan Speed Selections Hi/Low Cooling
Hi/Low Heating
Hi/Low Fan Only
Filter Type Rigid Frame
Slide-Out
Freeze Sentinel Yes
Heat - Cool Yes
Heat Sentinel Yes
Heating - Reverse Cycle - COP 3 .5
Heating System E Heat/High Demand/Hybrid/Boost/HP Only
HSPF2 Rating 7
Internal Condensate Removal (ICR) Yes
Louver Style Reversible
Manual Vent Control Hidden
Power Factor 95
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Charge (oz.) 29
Refrigerant Type R454B
Rotary Compressor Yes
SEER2 16
Sensible Heat Ratio 0.75
Temperature Limiting Electronic 24-Step
Temperature Range 60 - 85 F
Vent Control 3-position
Venting Features Concealed Manual Vent Control
Vent Air Filter
Outdoor Vent Control - 3 Positions
WiFi Connect Built-In
Zoneline Features "Smart Fan" Fan Cycle Control
Heat Sentinel
Freeze Sentinel
Automatic Indoor Frost Control
Universal Heaters
Auto Power Recovery
Remote Thermostat Compatibility
Central Desk Control Compatibility
Random Twist/Length Segment Tangential Blower

POWER / RATINGS

Cooling - Amperes 5.1
Cooling - Watts 1295
Heating BTUH 4,000 - 14,000
Heating - Electric - Heater Amps 4.5
Heating - Electric - Heater Watts 1165
Voltage (MAX) 265 V

WARRANTY

Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 124 lb
Net Weight 114 lb
Overall Depth 20 13/16
Overall Height 16
Overall Width 42
See All Specifications
