GE Zoneline® Single Package Vertical Air Conditioner

Model #: AZ85H09EAC
previous image
next image
1/5
  • Cooling capacity
  • Heating capacity
  • Energy efficiency

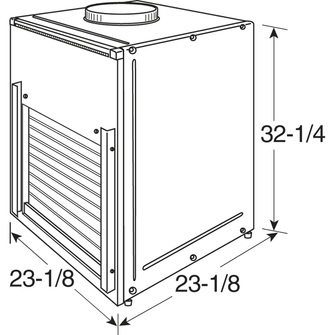

  • Dimensions: 32 1/4 H x 23 1/8 W x 23 1/8 D
Learn More >

Color: Warm Gray Beige

  • Warm Gray Beige
Dimensions: 32 1/4 H x 23 1/8 W x 23 1/8 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Use & Care Manual View More

Complete Your Laundry Pair:

Current Item
GE Zoneline® Single Package Vertical Air Conditioner
Model#: AZ85H09EAC
Clearance $1,979.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

    • Cooling capacity

      8,800 BTUH

    • Heating capacity

      8,200 BTUH

    • Energy efficiency

      10.5 EER (BTU/Watt) and 3.4 COP

    • Vertical design

      Optimizes usable floor space

    • Freeze Sentinel

      Protects unoccupied rooms against freeze-up (Requires RAVRMS)

    • Unique sleeve design

      Makes units easier to install; features three-way, slide-out chassis with specially designed case for quick and easy maintenance and service

    • Corrosion resistant

      Extends life of the unit in sea coast areas/corrosive environments

    • R-410A refrigerant

    See All Features

    Claims & Certifications

    Specs & Details

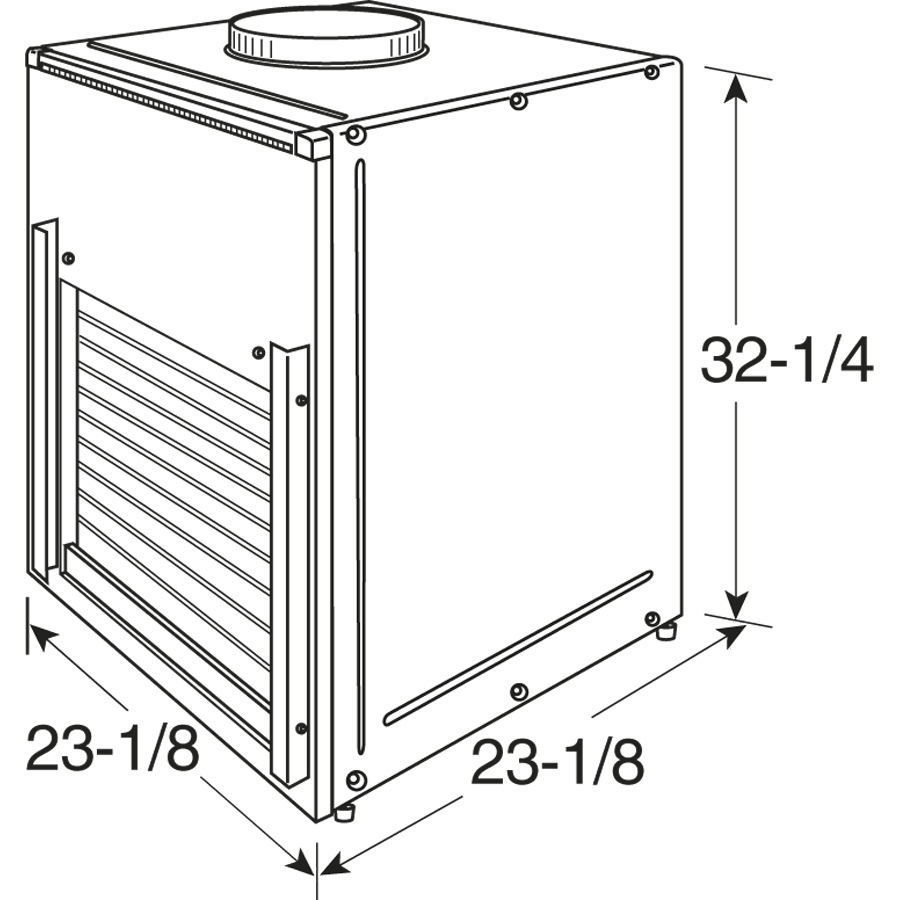

    Dimensions: 32 1/4 H x 23 1/8 W x 23 1/8 D

    APPEARANCE

    Color Appearance Warm Gray Beige

    CAPACITY

    CFM Indoor Fan High 520
    CFM Indoor Fan Low 360
    Cooling BTUH (MAX) 8,800 Btu
    Cooling EER (BTUH / Watt) 10.5
    Dehumidification (pts./hr.) 2.5
    Heating - Reverse Cycle - BTUH 8200
    Vent CFM (high fan at zero ESP) 62

    FEATURES

    Central Desk Control Compatibility Yes
    Corrosion Treated Yes
    Fan Speed Selections 3
    Freeze Sentinel Yes
    Heat Pump Yes
    Heating - Reverse Cycle - COP 3.4
    Manual Vent Control Hidden
    Power Connection Kit RAK5157/5207/5307
    Refrigerant Type R410A
    Remote Thermostat RAK148D2 or RAK148P2
    Rotary Compressor Yes
    Sensible Heat Ratio at 230 Volts 83%
    Temperature Limiting Yes
    Zoneline Features Universal Heaters
    Heat Pump with Resistance Heat Backup
    Heat Pump with Supplemental Resistance Heat
    Automatic Emergency Heat
    Electric Resistance Heat Lockout
    Heat Pump Defrost System
    Quick Heat Recovery
    DC Indoor and Outdoor Motors
    Solid State Thermostat
    Automatic Indoor Frost Control
    "Smart Fan" Fan Cycle Control
    Freeze Sentinel
    Heat Sentinel (85F)
    Auto Power Recovery
    Remote Control Disconnect Kit
    Weather Protected Electrical Components

    POWER / RATINGS

    Cooling - Amperes 3.5
    Cooling - Amperes; F.L. - Cooling 3.5
    Cooling - Watts 840
    Heating - Reverse Cycle - Amps 2.9
    Heating - Reverse Cycle - Watts 710
    Power Connection Direct Connect Kit
    Voltage (MAX) 265 V

    WARRANTY

    Labor Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Parts Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Warranty Notes See written warranty for full details

    WEIGHTS & DIMENSIONS

    Approximate Shipping Weight 152 lb
    Net Weight 141 lb
    Overall Depth 23 1/8 in
    Overall Height 32 1/4 in
    Overall Width 23 1/8 in
    See All Specifications
