GE Zoneline® Single Package Vertical Air Conditioner

Model #: AZ85W18DAC
  • 17,500 / 17,200 BTU cooling capacity
  • 10.0 / 10.0 E.E.R. (BTU/Watt)
  • R-410A refrigerant

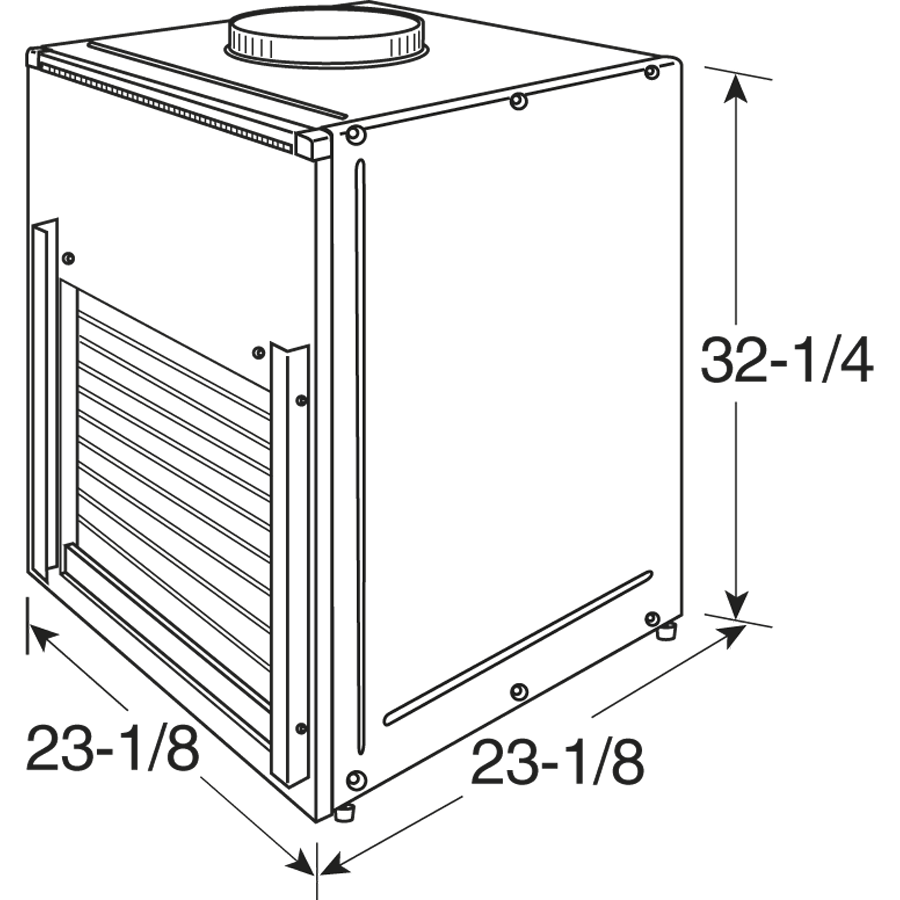

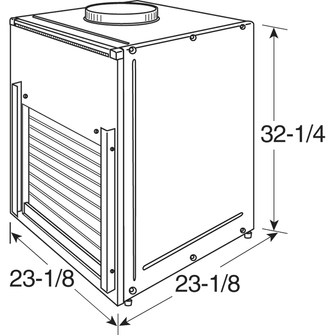

  • Dimensions: 32 1/4 H x 23 1/8 W x 23 1/8 D
Learn More >

Color: Warm Gray Beige

  • Warm Gray Beige
Dimensions: 32 1/4 H x 23 1/8 W x 23 1/8 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Complete Your Laundry Pair:

Current Item
Model#: AZ85W18DAC
Clearance $1,830.00
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes
    • 17,500 / 17,200 BTU cooling capacity

    • 10.0 / 10.0 E.E.R. (BTU/Watt)

    • R-410A refrigerant

    • Vertical design

      Optimizes usable floor space

    • Freeze Sentinel protects unoccupied rooms against freeze-up

    • Three-way, slide-out chassis with specially designed case Makes Maintenance and Service Quick and Easy

    • Full corrosion treatment on outside coils and other components is standard

    See All Features

    Dimensions: 32 1/4 H x 23 1/8 W x 23 1/8 D

    APPEARANCE

    Color Appearance Warm Gray Beige

    CAPACITY

    CFM Indoor Fan High 550
    CFM Indoor Fan Low 475
    Cooling BTUH (MAX) 17,800 Btu
    Cooling EER (BTUH / Watt) 9.6
    Dehumidification (pts./hr.) 5.0
    Vent CFM (high fan at zero ESP) 72 @ .3' water

    FEATURES

    Central Desk Control Compatibility Yes
    Corrosion Treated Yes
    Electronic Micro Computer Control Yes
    Fan Speed Selections 3 Cooling
    Freeze Sentinel Optional Kit
    Manual Vent Control Hidden
    Power Connection Kit RAK3152/3202/3302
    Refrigerant Type R410A
    Remote Thermostat RAK164 - Optional
    Rotary Compressor Yes
    Sensible Heat Ratio at 230 Volts 76%
    Temperature Limiting Optional Kit
    Zoneline Features Solid State Thermostat
    DC Indoor and Outdoor Motors
    Automatic Indoor Frost Control
    "Smart Fan" Fan Cycle Control
    Freeze Sentinel
    Heat Sentinel (85F)
    Central Desk Control Compatibility
    Auto Power Recovery
    Remote Control Disconnect Kit
    Weather Protected Electrical Components

    POWER / RATINGS

    Cooling - Amperes 8.3/9.0
    Cooling - Amperes; F.L. - Cooling 8.3/9.0
    Cooling - Watts 1750/1720
    Power Connection Power Cord
    Voltage (MAX) 230 V
    Voltage (MIN) 208 V

    WARRANTY

    Labor Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Parts Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Warranty Notes See written warranty for full details

    WEIGHTS & DIMENSIONS

    Approximate Shipping Weight 174 lb
    Net Weight 163 lb
    Overall Depth 23 1/8 in
    Overall Height 32 1/4 in
    Overall Width 23 1/8 in
    See All Specifications
