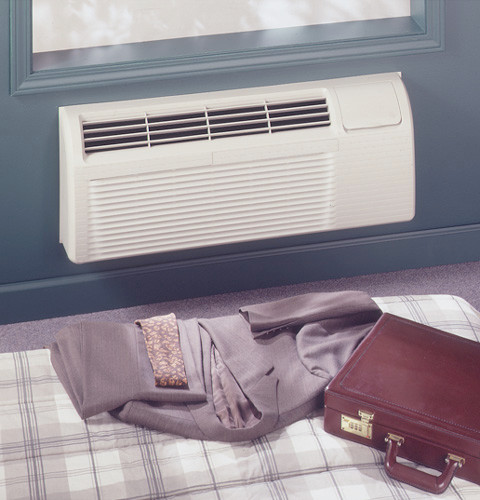

GE Zoneline® Value Series Heat Pump Unit

Model #: AZ32H07D3C
previous image
next image
1/5
  • Decorative warm gray-beige front
  • Cooling with heat pump with electric heat back-up
  • 230/208 Volt outlet type
  • Dimensions: 16 H x 42 W x 13 3/4 D
Learn More >
Dimensions: 16 H x 42 W x 13 3/4 D

Will this filter fit my refrigerator? reset search

Our water filter finder will guide you to the right filter for your refrigerator

✔This filter is match for your refrigerator

✗ This filter is not a match for your refrigerator

Need help finding your model number?
Loading Store Finder

Frequently Bought Together:

For personalized shopping help, call us at 1-800-430-1757

Use & Care Manual View More

Complete Your Laundry Pair:

Current Item
GE Zoneline® Value Series Heat Pump Unit
Model#: AZ32H07D3C
+
Matching Item



=
Price For Laundry Pair:
* Available in Select Zip Codes

About This Product

  • Remote control compatibility for wall-mounted thermostats

    Remote control compatibility for wall-mounted thermostats

    undefined

  • Decorative warm gray-beige front

  • Cooling with heat pump with electric heat back-up

  • 230/208 Volt outlet type

  • 20 Amp, 2450 / 2820 Watts

  • Available in 7,100 / 6,900 BTU

  • Up to 11.6 EER, up to 3.5 COP

  • Attached power cord

  • Slide-out chassis

  • Central desk control compatibility

  • Mechanical temperature limiting for restriction of room temperature

  • Freeze Sentinel protects unoccupied rooms against freeze-up

  • Corrosion-treated chassis

    Extends life of the unit in SeaCoast areas

  • Hidden fan cycle switch

  • Hidden manual vent control for fresh air introduction

See All Features

Claims & Certifications

Specs & Details

Dimensions: 16 H x 42 W x 13 3/4 D

ACCESSORIES

External Drain Kit RAD10 - Optional
Insulated Wall Case RAB71A
SMC Wall Case RAB77A4

CAPACITY

CFM Indoor Fan High 260
CFM Indoor Fan Low 240
Cooling BTUH (MAX) 7,100 Btu
Cooling BTUH (MIN) 6,900 Btu
Cooling EER (BTUH / Watt) 11.6/11.6
Dehumidification (pts./hr.) 1.8
Heating - Reverse Cycle - BTUH 6400/6200
Vent CFM (high fan at zero ESP) 40/35

FEATURES

Auto Frost Control Monitor Yes
Auto Power Recovery Yes
Central Desk Control Compatibility Yes
Corrosion Treated Yes
Electronic Micro Computer Control Yes
Fan Cycle Switch Hidden
Freeze Sentinel Yes
Heat Pump Yes
Louver Style Reversible
Manual Vent Control Yes
Multi-Directional Air Outlet Yes
Power Factor 95
Remote Control Yes
Rotary Compressor Yes
Sensible Heat Ratio at 230 Volts 75%
Solid State Thermostat Control Yes
Temperature Limiting Mechanical
Upfront Filter Yes

POWER / RATINGS

Cooling - Amperes 2.8/3.0
Cooling - Amperes; F.L. - Cooling 2.8/3.0
Cooling - Amperes; L.R. 19.0
Cooling - Watts 610/595
Voltage (MAX) 230 V
Voltage (MIN) 208 V

WARRANTY

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Limited 5-year specified internal components
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 124 lb
Net Weight 107 lb
Overall Depth 13 3/4 in
Overall Height 16 in
Overall Width 42 in
