Accessory Guide for Your GE Zoneline Vertical Air Conditioner

The GE Zoneline Vertical Air Conditioner is approximately 24″ × 24″ and has a top air discharge that is ducted into a single room or multiple rooms. Because the new Zoneline Vertical is installed in a closet, it provides a more home-like appearance to the room as well as quieter operation.

Essential Accessories

GE Zonelines require a set of essential accessories for proper operation. Once you have selected your type of unit (resistance heat or heat pump) and the size of unit needed, next you’ll need to consider the following:

  • Wall Plenum

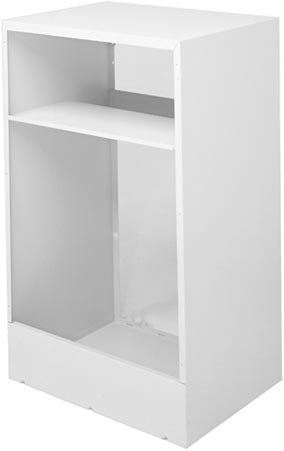

    Wall Plenum

    RAVWP6 — Up to 6 in wall thickness

    RAVWP8 — Up to 8 in wall thickness

    RAVWP12 — Up to 12 in wall thickness

    RAVWP15 — Up to 15 in wall thickness

    • Wall plenum dimensions are 19-3/4 in × 32 in
    • They come in a warm gray beige color
    • Wall cutout dimensions are 20 in × 32-1/4 in
  • Grille

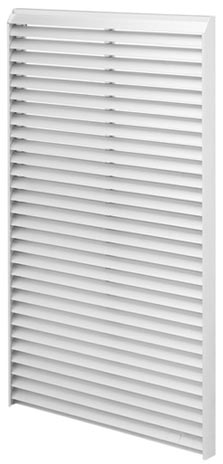

    • Architectural Louver

      RAVAL1

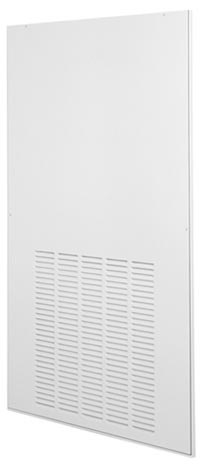

    • Access Panel with Return Air Grille

      RAVRG1

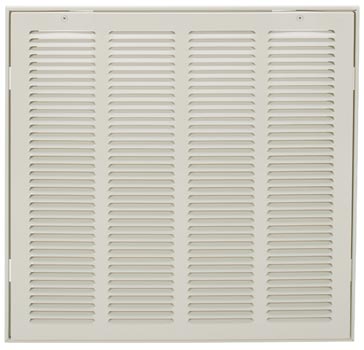

    • Return Air Grille

      RAVRG2

  • Power Connections

    Power connection kits are required on all GE Zoneline chassis. The correct kit for the installation is determined by the voltage and amperage of the electrical circuit and the means of connecting the unit to the building wiring.

    230/208-Volt Units

    These units may be plugged into a receptacle using a line power cord kit or hard-wired. If the unit is to be permanently connected, a permanent connection kit would be used. Some installations utilize sub-bases for support of the unit and to hide the electrical connection.

    Power Cord Kits

    RAK3152
    (15 Amp)


    NEMA6-15R

    RAK3202
    (20 Amp)


    NEMA6-20R

    RAK3302
    (30 Amp)


    NEMA6-30R

    OR

    Direct Connect Kits

    RAK4157
    (15 Amp)

    RAK4207
    (20 Amp)

    RAK4307
    (30 Amp)

    Compare specs by amp for 230/208-volt units

    265-Volt Units

    265-volt units are provided with a junction box and require direct connection. 265-volt cord set units must be installed in compliance with National Electrical Code®.

    Direct Connect Kits

    To be used with a sub-base or connection to building wiring.

    RAK5157
    (15 Amp)

    RAK5207
    (20 Amp)

    RAK5307
    (30 Amp)

    Compare specs by amp for 265-volt units

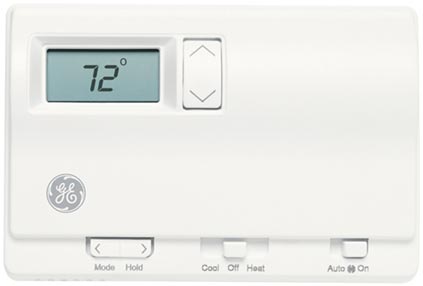

  • Remote Thermostat

    All Zoneline units are compatible with GE Appliances' wall-mounted remote thermostats. We offer both digital and programmable wired thermostats.

    8500 Electric Resistance Heat Series
    • Cooling with Electric Heat Digital Thermostat
      RAK164D1
    • Cooling with Electric Heat Programmable Thermostat
      RAK164P1
    8500 Heat Pump Series
    • Heat Pump Digital Thermostat
      RAK148D1
    • Heat Pump Programmable Thermostat
      RAK148P1
